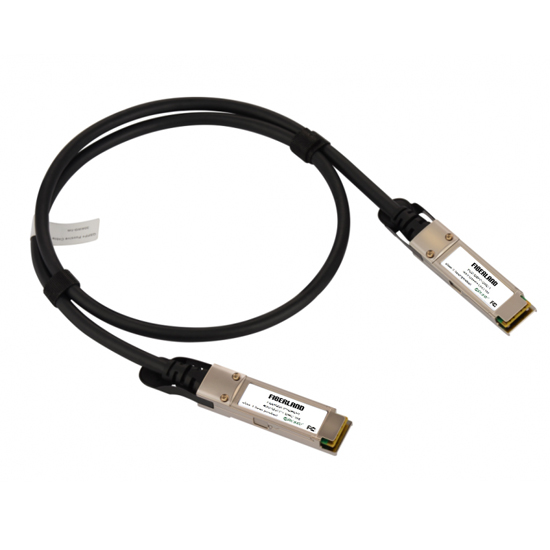

40G QSFP+ to QSFP+ DAC
- QSFP+ conforms to the Small Form Factor SFF8436
- 4-Channel Full-Duplex Passive/Active Copper Cable Transceiver
- Support for multi-gigabit data rates :1Gb/s - 10Gb/s (per channel)
- Maximum aggregate data rate: 40Gb/s (4 x 10Gb/s)
- Copper link length up to 15m (active limiting)
- High-Density QSFP 38-PIN Connector
- Power Supply :+3.3V
- Power Consumption: <0.8W
- Temperature Range: 0~ 70 °C
- Compliant with CE,FCC,Rohs,REACH
Product Details
-
Vendor Name
Fiberland
Form Type
QSFP+ DAC
-
Data Rate
40Gbps
Wavelength
N/A
-
Reach
0.5m~15m
Optical Interface
N/A
-
Media Type
N/A
DDM Support
YES
-
Commercial Temp.
0~70℃
Industrial Temp.
-40~85℃
-
Compatible Brands
Cisco,HP,Huawei,etc...
Certificates
CE,FCC,ROHS,REACH
-
HS Code
8517706000
Warranty
3 Years
Quality Commitment
Fiberland Technology Co.,Ltd 's aim is to provide you high quality products.We are doing products aging for standard 8 hours and 100% funtion tested before shipping. Besides,Fiberland products are with quality system verifications,such as CE,FCC,ROHS as well as REACH.We record the ID (Serial Number) of products with our ERP system in order to track our products easily.
More Options
-
Part No.
Product Type
Rate
Media Type
Wavelength
Reach
Connector
Commercial Temp.
Industrial Temp.
Optional
-
FLD-40GD-QS2QS-0.5
QSFP+ DAC
40Gbps
N/A
N/A
0.5M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-1
QSFP+ DAC
40Gbps
N/A
N/A
1M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-2
QSFP+ DAC
40Gbps
N/A
N/A
2M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-3
QSFP+ DAC
40Gbps
N/A
N/A
3M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-4
QSFP+ DAC
40Gbps
N/A
N/A
4M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-5
QSFP+ DAC
40Gbps
N/A
N/A
5M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-7
QSFP+ DAC
40Gbps
N/A
N/A
7M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-9
QSFP+ DAC
40Gbps
N/A
N/A
9M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-10
QSFP+ DAC
40Gbps
N/A
N/A
10M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GD-QS2QS-15
QSFP+ DAC
40Gbps
N/A
N/A
15M
N/A
0~70℃
-40~85℃
N/A
Contact Us Now For More In Details !
