Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

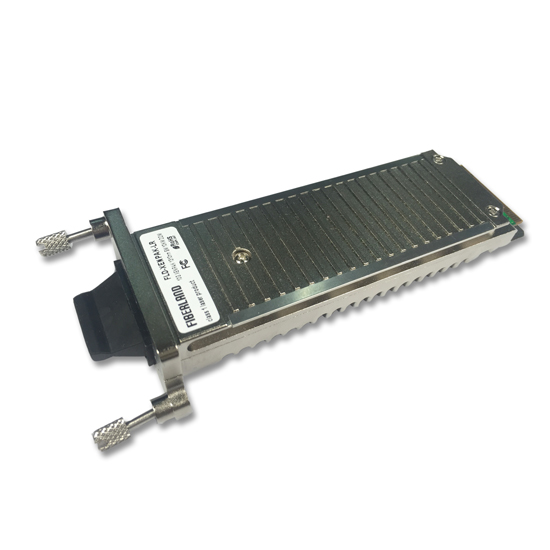

| Vendor Name | Fiberland | Form Type | DWDM XENPAK |
|---|---|---|---|
| Data Rate | 10Gbps | Wavelength | Channnel 17~Channel 61 |
| Available reaches | 40km / 80km | Optical Interface | Duplex SC |
| Media Type | SM | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,HP,Huawei,etc... | Certificates | CE,FCC,ROHS,REACH |
| HS Code | 8517706000 | Warranty | 3 Years |
Choose one listed value to view only the part numbers recorded for that distance.
| Fiberland part number | Rate | Media | Wavelength | Exact reach | Connector |
|---|---|---|---|---|---|
| FLD-DWDM-XENPAK-40 | 10G | SM | All channel | 40km | SC |
| FLD-DWDM-XENPAK-80 | 10G | SM | All channel | 80km | SC |
2 model options shown.
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.
Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
Different switch models, hardware revisions, operating systems, and firmware versions may use different transceiver validation rules. A module compatible with one platform may require different coding for another.
Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.
Yes. Compatible modules are available across many high-speed interfaces, although compatibility requirements become increasingly platform-specific at higher data rates.
