8G, 16G & 32G Fiber Channel Transceivers

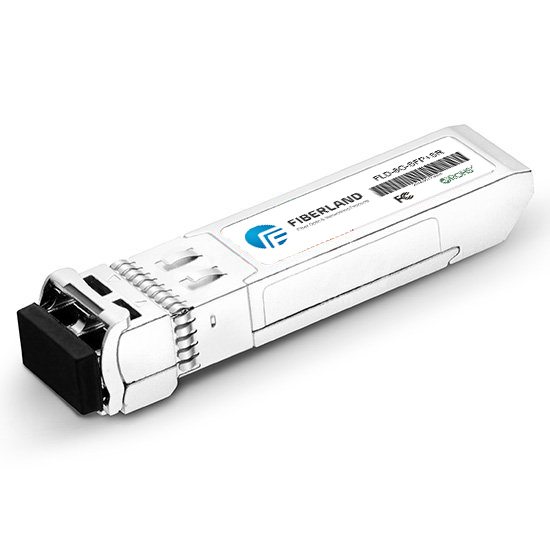

32G Fiber Channel SFP28

32G data rate SFP28 package with LC connector 850nm/1310nm VCSEL/FP/DFB laser From 100m MM to 40km SM transmission on MMF/SMF Power dissipation<1W LVPECL compatible data input/output interface Low EMI and excellent ESD protection laser safety standard IEC-60825 compliant Compliant with CE,FCC,Rohs,REACH

Rate32GAvailable reaches100m / 10km / 40kmWavelength850NM,1310NMInterfaceLC
Fiberland part number
FLD-32GSFP28-SR

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form Type32G Fiber Channel SFP28

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Vendor NameFiberlandForm Type32G Fiber Channel SFP28
Data Rate32GWavelength850NM,1310NM
Available reaches100m / 10km / 40kmOptical InterfaceLC
Media TypeMM/SMDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,HP,Huawei,etc...CertificatesCE,FCC,ROHS,REACH
HS Code8517706000Warranty3 Years

Select an Exact Length or Reach

Choose one listed value to view only the part numbers recorded for that distance.

Fiberland part numberRateMediaWavelengthExact reachConnector
FLD-32GSFP28-SR32GMM850NM100MLC
FLD-32GSFP28-LR32GSM1310NM10KMLC
FLD-32GSFP28-ER32GSM1310NM40KMLC

3 model options shown.

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database

No verified part-number mapping is linked to this product yet.

Send the target device brand, model, firmware or OS and port details for an exact compatibility review.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Does using compatible optics affect transmission distance?

Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.

How is a transceiver made compatible with a specific switch brand?

Compatibility is typically achieved through EEPROM programming, identification parameters, interface compliance, and platform-specific coding so that the host device can correctly recognize and communicate with the transceiver.

What is the difference between equipment compatibility and optical compatibility?

Equipment compatibility determines whether the host device recognizes and operates with the module. Optical compatibility determines whether the two ends of the fiber link can communicate correctly. A successful deployment requires both.

Does MSA compliance guarantee switch compatibility?

No. MSA compliance helps ensure standardized physical and electrical interfaces, but individual equipment vendors may also use platform-specific identification or validation requirements.

Why does my compatible transceiver show low RX optical power?

Low receive power can result from excessive fiber loss, dirty connectors, damaged fiber, excessive link distance, incorrect wavelength pairing, or insufficient transmit power from the remote transceiver. Compare the measured RX power with the module's specified receiver range.
