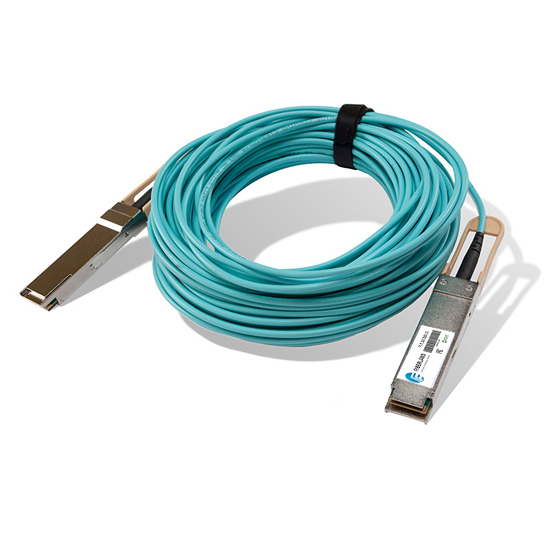

100G QSFP28 AOC
Bandwidth density of 100 Gbps bi-directional
Transmission data rate up to 25.8Gbps per channel
4 channels 850nm 25G VCSEL array
4 channels 25G PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Hot Pluggable QSFP28 form factor
Up to 30m based on link of MMF
3.3V power supply voltage
Low power consumption <2.5W
Compliant with CE,FCC,Rohs,REACH
Product Details
-
Vendor Name
Fiberland
Form Type
QSFP28 AOC
-
Data Rate
100G
Wavelength
850NM
-
Reach
1~30M
Optical Interface
N/A
-
Media Type
MM
DDM Support
YES
-
Commercial Temp.
0~70℃
Industrial Temp.
-40~85℃
-
Compatible Brands
Cisco,HP,Huawei,etc...
Certificates
CE,FCC,ROHS,REACH
-
HS Code
8517706000
Warranty
3 Years
Fiberland 100G AOC is with Bandwidth density of 100 Gbps bi-directional,Transmission data rate up to 25.8Gbps per channel 4 channels 850nm 25G VCSEL array 4 channels 25G PIN photo detector array ，Internal CDR circuits on both receiver and transmitter channels，Hot Pluggable QSFP28 form factor ，Up to 100m based on link of MMF，with 3.3V power supply voltage Oustanding Low power consumption <2.5W Compliant with CE,FCC,Rohs,REACH.
Cisco compatible AOC and HP COMPATIBLE AOC is the most commonly used in the market for 100G.Such as Q9S66A, 721070-B21,721076-B21,720205-B21,720211-B21,Q9S71A,845410-B21 , 845414-B21,845420-B21,845424-B21,Q9S67A,Q9S68A,Q9S69A,Q9S70A,720208-B21,845412-B21 for HP and cisco SFP-10G-AOC1M，SFP-10G-AOC2M，SFP-10G-AOC3M，SFP-10G-AOC5M，SFP-10G-AOC7M，SFP-10G-AOC10M
Please come to our sales for more in details .
Quality Commitment
Fiberland Technology Co.,Ltd 's aim is to provide you high quality products.We are doing products aging for standard 8 hours and 100% funtion tested before shipping. Besides,Fiberland products are with quality system verifications,such as CE,FCC,ROHS as well as REACH.We record the ID (Serial Number) of products with our ERP system in order to track our products easily.
More Options
-
Part No.
Product Type
Rate
Media Type
Wavelength
Reach
Connector
Commercial Temp.
Industrial Temp.
Optional
-
FLD-100G-QS2QS-1
QSFP28 AOC
100G
MM
850NM
1M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-2
QSFP28 AOC
100G
MM
850NM
2M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-3
QSFP28 AOC
100G
MM
850NM
3M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-5
QSFP28 AOC
100G
MM
850NM
5M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-7
QSFP28 AOC
100G
MM
850NM
7M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-10
QSFP28 AOC
100G
MM
850NM
10M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-20
QSFP28 AOC
100G
MM
850NM
20M
N/A
0~70℃
-40~85℃
N/A
-
FLD-100G-QS2QS-30
QSFP28 AOC
100G
MM
850NM
30M
N/A
0~70℃
-40~85℃
N/A
Contact Us Now For More In Details !
