Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

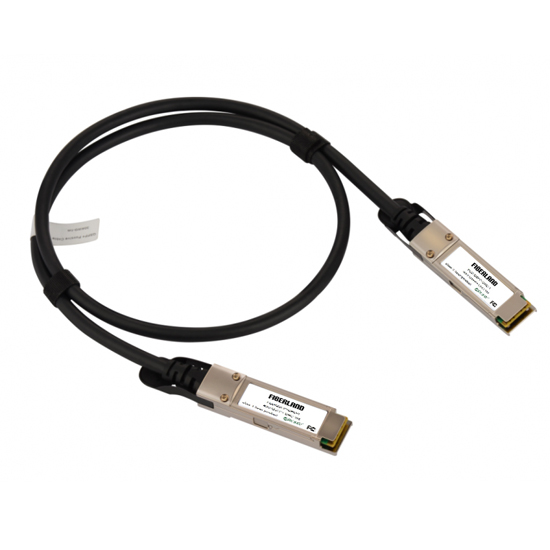

| Vendor Name | Fiberland | Form Type | QSFP28 DAC |
|---|---|---|---|
| Data Rate | 25Gbps | Wavelength | N/A |
| Available reaches | 1m / 2m / 3m | Optical Interface | N/A |
| Media Type | N/A | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,HP,Huawei,etc... | Certificates | CE,FCC,ROHS,REACH |
| HS Code | 8517706000 | Warranty | 3 Years |
Choose one listed value to view only the part numbers recorded for that distance.
| Fiberland part number | Rate | Media | Wavelength | Exact reach | Connector |
|---|---|---|---|---|---|
| FLD-25GD-QS2QS-1 | 25G | N/A | N/A | 1M | N/A |
| FLD-25GD-QS2QS-2 | 25G | N/A | N/A | 2M | N/A |
| FLD-25GD-QS2QS-3 | 25G | N/A | N/A | 3M | N/A |
3 model options shown.
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.
A compatible replacement should meet the applicable transmit-power and receiver-sensitivity specifications for the interface it is designed to support.
Intermittent links can be caused by marginal optical power, dirty connectors, unstable fiber connections, FEC mismatches, port configuration, temperature, or compatibility issues. Check both the optical link and host-side configuration.
EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.
Check transmit and receive power, fiber polarity, connector cleanliness, wavelength, fiber type, link distance, FEC configuration, port speed, and the specifications of the transceiver at the opposite end.
