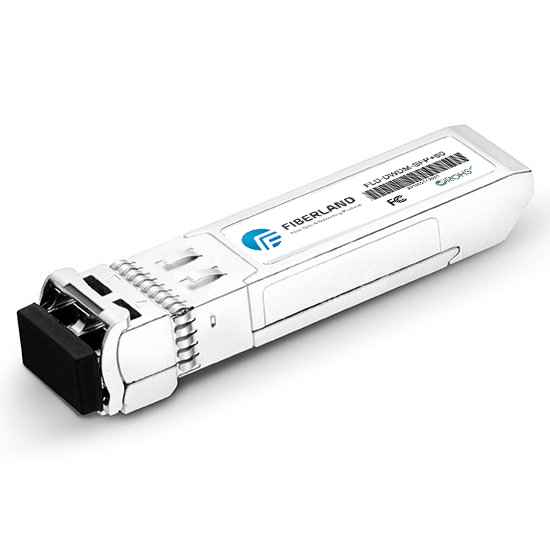

10G DWDM SFP+ Transceiver
- 10G data rate
- Hot-pluggable SFP+ footprint
- DWDM SFP+ package with LC connector
- DWDM EML Laser and PIN receiver
- From 40km to 80km SM transmission on SMF
- +3.3V single power supply
- LVPECL compatible data input/output interface
- Low EMI and excellent ESD protection
- laser safety standard IEC-60825 compliant
- Compliant with CE,FCC,Rohs,REACH
Product Details
-
Vendor Name
Fiberland
Form Type
DWDM SFP+
-
Data Rate
10Gbps
Wavelength
Channnel 17~Channel 61
-
Reach
40~80km
Optical Interface
Duplex LC
-
Media Type
SM
DDM Support
YES
-
Commercial Temp.
0~70℃
Industrial Temp.
-40~85℃
-
Compatible Brands
Cisco,HP,Huawei,etc...
Certificates
CE,FCC,ROHS,REACH
-
HS Code
8517706000
Warranty
3 Years
Fiberland is able to offer 40km and 80km DWDM transceiver for both SFP+ and XFP.For 40km DWDM SFP+/XFP,is with DML and EML for 80km.Metal enclosure, for lower EMI,Up to 11.1Gbps Data Links.2-wire interface with integrated Digital Diagnostic monitoring.Specifications compliant with SFF 8472 and Compliant with SFP+ MSA with LC connector with low consumption of Single 3.3V power supply.Operating temperature range:0°C to 70°C.
The FLD-DWDM-SFP+80/40 transceivers include an APD diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
Fiberland is with full stock of DWDM transceivers all the year round from channel 17 to channel 61.For more parameters of products,please visit our website to learn more.
Quality Commitment
Fiberland Technology Co.,Ltd 's aim is to provide you high quality products.We are doing products aging for standard 8 hours and 100% funtion tested before shipping. Besides,Fiberland products are with quality system verifications,such as CE,FCC,ROHS as well as REACH.We record the ID (Serial Number) of products with our ERP system in order to track our products easily.
More Options
-
Part No.
Product Type
Rate
Media Type
Wavelength
Reach
Connector
Commercial Temp.
Industrial Temp.
Optional
-
FLD-DWDM-SFP+40
DWDM SFP+
10Gbps
SM
All channel
40km
LC
0~70℃
-40~85℃
DDM
-
FLD-DWDM-SFP+80
DWDM SFP+
10Gbps
SM
All channel
80km
LC
0~70℃
-40~85℃
DDM
Contact Us Now For More In Details !
