10G CWDM SFP+

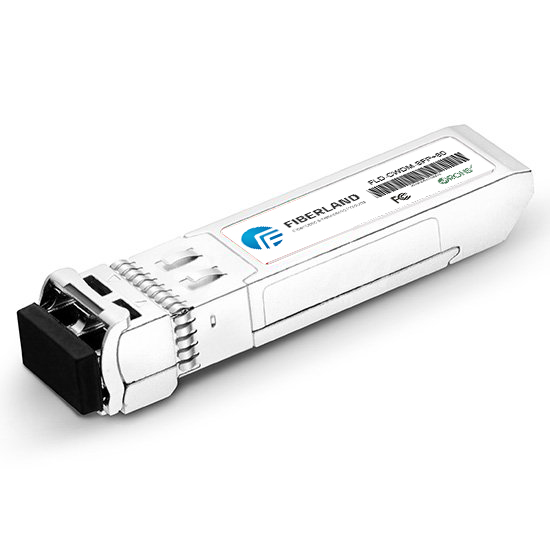

10G CWDM SFP+ Fiber Optic Transceiver Module 1270~1450 10km Duplex LC SMF DDM | FLD-CWDM-SFP+10 | Fiberland

Rate10GReach10kmWavelength1270~1450InterfaceDUPLEX LC
Fiberland part number
FLD-CWDM-SFP+10

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeCWDM SFP+

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-CWDM-SFP+10Vendor NameFIBERLAND
Data Rate10GWavelength1270~1450
Reach10kmForm TypeCWDM SFP+
Optical InterfaceDUPLEX LCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 1 brand
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
10GB-LR271-SFPPEXTREME NETWORKSFLD-CWDM-SFP+1010 Gb CWDM SFP+ transceiver, 1271 nm, 10 km over single-mode fiber, duplex LC.
10GB-LR291-SFPPEXTREME NETWORKSFLD-CWDM-SFP+1010 Gb CWDM SFP+ transceiver, 1291 nm, 10 km over single-mode fiber, duplex LC.
10GB-LR311-SFPPEXTREME NETWORKSFLD-CWDM-SFP+1010 Gb CWDM SFP+ transceiver, 1311 nm, 10 km over single-mode fiber, duplex LC.
10GB-LR331-SFPPEXTREME NETWORKSFLD-CWDM-SFP+1010 Gb CWDM SFP+ transceiver, 1331 nm, 10 km over single-mode fiber, duplex LC.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

How is a transceiver made compatible with a specific switch brand?

Compatibility is typically achieved through EEPROM programming, identification parameters, interface compliance, and platform-specific coding so that the host device can correctly recognize and communicate with the transceiver.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

How can I tell whether the problem is compatibility-related or an optical-link problem?

Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.

Why is there no TX optical power from the compatible transceiver?

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.
