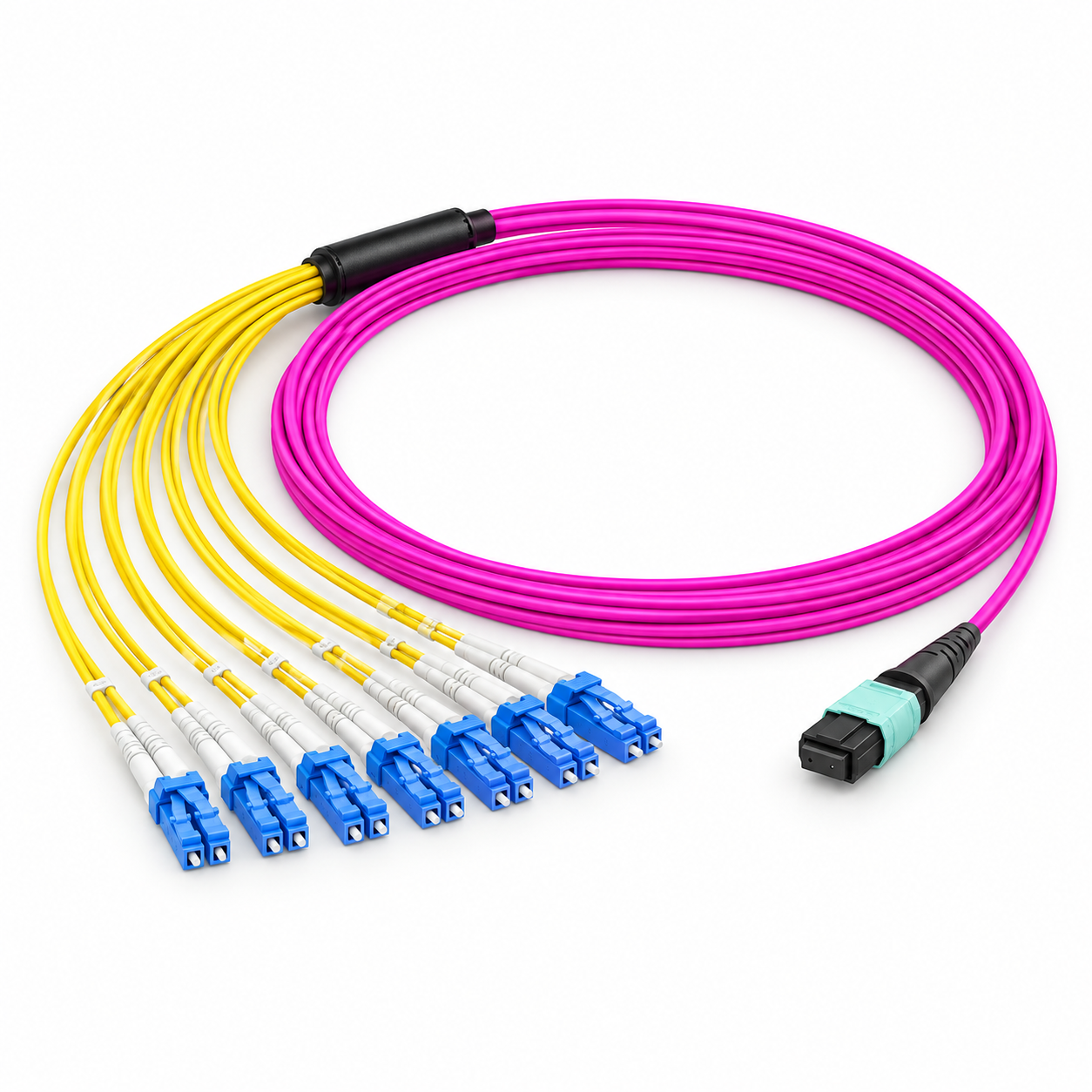

Breakout from a multi-fibre MTP/MPO interface to individual duplex ports.
MPO PATCH CORD
MTP/MPO BREAKOUT CABLE
MTP/MPO BREAKOUT CABLE WITH LC, SC, FC OR ST FAN-OUT LEGS FOR HIGH-DENSITY EQUIPMENT CONNECTIONS.
- Fan-out interfaceSelect LC, SC, FC or ST connector legs to match the equipment ports.
- Tail configurationConfirm leg count, simplex or duplex construction, breakout length and staggering.
- PolarityDefine the end-to-end polarity and MTP/MPO pin arrangement before production.
Technical specifications
Configuration and performance
Select the connector, fibre grade and cable construction for the intended link. The final order specification identifies the selected options and applicable limits.
Cable configuration
| Fibre count | 8–144 fibres |
|---|---|
| Fibre modes | OS2 / OM3 / OM4 |
| Trunk connector | MTP / MPO male or female |
| Breakout connectors | LC / SC / FC / ST |
| Polarity options | Type A / Type B / Type C |
| Breakout leg | Duplex 2.0 mm; simplex 0.9 or 2.0 mm |
| Breakout length | 0.3 / 0.5 m |
| Connector options by brand | US Conec MTP / Senko MPO Plus |
| Cable jacket options | Plenum (OFNP) / LSZH / riser PVC |
Optical performance
| MTP/MPO insertion loss | ≤0.35 dB |
|---|---|
| MTP/MPO return loss | Single-mode APC ≥60 dB / UPC ≥50 dB; multimode UPC ≥20 dB |
| LC/SC/FC/ST insertion loss | Single-mode APC ≤0.3 dB / UPC ≤0.2 dB; multimode UPC ≤0.2 dB |
| LC/SC/FC/ST return loss | Single-mode APC ≥60 dB / UPC ≥50 dB; multimode UPC ≥30 dB |
| Wavelength | Single-mode: 1310/1550 nm; multimode: 850/1300 nm |
Mechanical and environmental
| Minimum bend radius | Single-mode 10.0 mm; multimode 7.5 mm |
|---|---|
| Operating temperature | -10°C to +70°C |
| Storage temperature | -40°C to +85°C |
Applications
Where this assembly fits
SAN and LAN distribution
Equipment-distribution and patch-field connections.
Migration projects
Fan-out links that connect parallel-optics cabling to duplex interfaces.

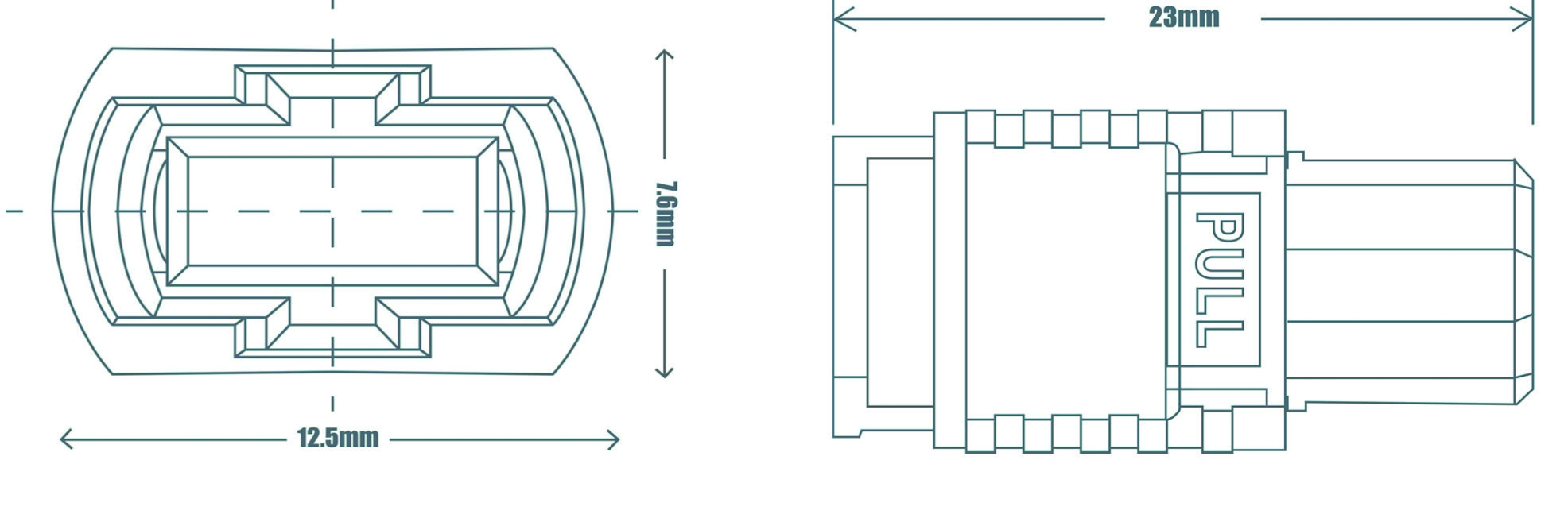

Assembly construction
MTP/MPO to individual connector legs

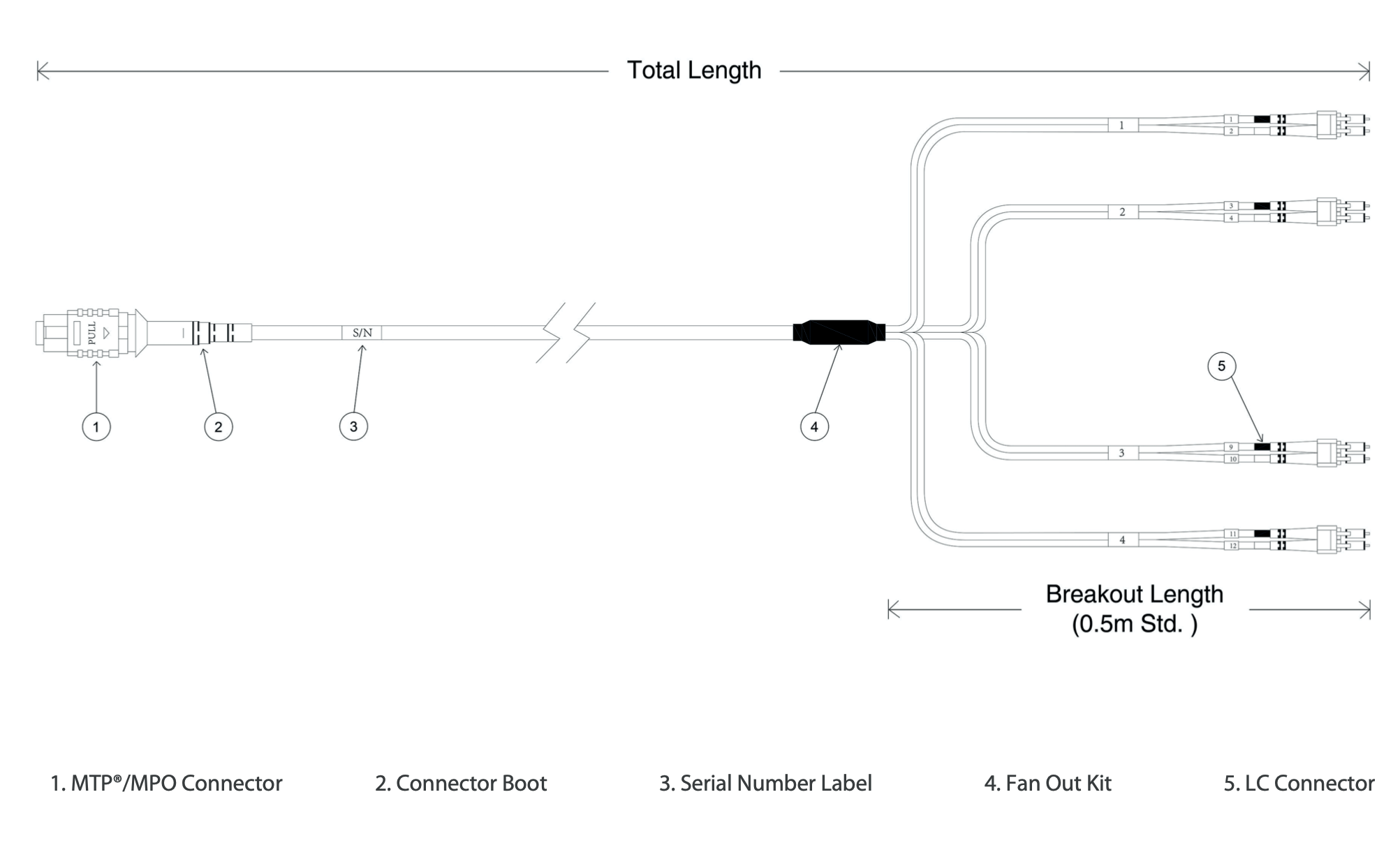

Specify the total length and fan-out length separately. Select LC, SC, FC or ST ends, simplex or duplex legs, and any staggered-tail requirement.
Multi-bundle cable sizes
The single-cable construction is 3.0 mm. Larger bundled assemblies use the following trunk diameters; confirm the selected construction with the order.
| Bundles | MTP/MPO-12 fibre count | MTP/MPO-24 fibre count | Trunk diameter |
|---|---|---|---|
| 2 | 24 | 48 | 7.2 mm |
| 3 | 36 | 72 | 9.3 mm |
| 4 | 48 | 96 | 9.5 mm |
| 6 | 72 | 144 | 11.7 mm |
| 8 | 96 | — | 12.01 mm |
| 12 | 144 | — | 17.3 mm |
Connector and fibre selection
Confirm the end-to-end configuration
Match fibre grade, connector gender, alignment pins and Type A, B or C polarity across the full link. A trunk connects multi-fibre interfaces; a breakout distributes fibres to individual connector legs.
Fibre and colour options
- OS2 single-mode
- Yellow cable; confirm UPC or APC at each connector.
- OM3 multimode
- Aqua cable for the selected multimode interface.
- OM4 multimode
- Magenta cable for the selected multimode interface.
- Installation options
- Confirm pulling-eye protection, labels, jacket rating, length and polarity before ordering.
Cleaning and installation
Prepare and connect MTP/MPO assemblies
Inspect the full multi-fibre end face, clean with an appropriate MTP/MPO cleaner and verify the pin arrangement before insertion. Keep the connector key aligned with the receiving port.
Confirm the cassette polarity and the matching connector gender before connecting the trunk.
Link planning
Fibre transmission distance comparison
Compare fibre grades and optical interfaces from 1G to 100G. These are link-planning references; cable length alone does not determine supported reach.
| Data rate | Interface | Fibre mode | Wavelength | Reference distance |
|---|---|---|---|---|
| 1G | 1000BASE-SX | OM1 / OM2 / OM3 / OM4 | 850 nm | OM1: up to 275 m; OM2/OM3/OM4: up to 550 m |
| 1G | 1000BASE-LX/LH | MMF / OS2 | 1310 nm | MMF: up to 550 m with the required launch conditions; 10 km-rated LX/LH module: 10 km on OS2 |
| 10G | 10GBASE-SR | OM1 / OM2 / OM3 / OM4 | 850 nm | OM1: 33 m; OM2: 82 m; OM3: 300 m; OM4: 400 m |
| 10G | 10GBASE-LRM | OM1 / OM2 / OM3 | 1310 nm | Up to 220 m; fibre bandwidth and mode-conditioning requirements apply |
| 10G | 10GBASE-LR | OS2 | 1310 nm | 10 km |
| 10G | 10GBASE-ER | OS2 | 1550 nm | Up to 40 km; verify the optical power budget |
| 10G | ZR long-reach optics | OS2 | 1550 nm | 80–100 km, depending on the selected module and link budget |
| 40G | BiDi | OM3 / OM4 / OM5 | Module-specific paired wavelengths | OM3: 100 m; OM4: 150 m; OM5: up to 200 m with a compatible module |
| 40G | 40GBASE-SR4 | OM3 / OM4 / OM5 | 850 nm | OM3: 100 m; OM4/OM5: 150 m |
| 40G | SWDM4 | OM3 / OM4 / OM5 | 850–940 nm | OM3: 240 m; OM4: 350 m; OM5: 440 m for the specified SWDM4 module |
| 40G | 40GBASE-LR4 | OS2 | 1310 nm band | 10 km |
| 100G | 100GBASE-SR4 | OM3 / OM4 / OM5 | 850 nm | OM3: 70 m; OM4/OM5: 100 m |
| 100G | SWDM4 | OM3 / OM4 / OM5 | 850–940 nm | OM3: 75 m; OM4: 100 m; OM5: 150 m for the specified SWDM4 module |
| 100G | 100GBASE-SR10 | OM3 / OM4 | 850 nm | OM3: 100 m; OM4: 150 m |
| 100G | 100GBASE-LR4 | OS2 | 1310 nm band | 10 km |
| 100G | 100GBASE-ER4 | OS2 | 1310 nm band | 40 km |
Use the exact transceiver specification, fibre bandwidth, connector loss and installation conditions to confirm the link. BiDi, SWDM4 and extended-reach results depend on the selected module. Parallel optics also require the correct fibre count and polarity.
Product questions
Frequently asked questions
What information is needed for an order?
Specify fibre grade and count, MTP/MPO gender, polarity, connector ends, jacket, overall length, any fan-out length and quantity.
Does the cable determine the maximum transmission distance?
Supported reach depends on the transceiver interface, fibre bandwidth, installed-link loss and application. Use the comparison table for initial selection, then check the exact transceiver specification.
How do I select MTP/MPO polarity?
Match Type A, B or C polarity, connector gender and key orientation to the transceiver, cassette and patching design. Verify the whole link before ordering.
Can I request inspection information?
Include the selected configuration and required inspection records in your enquiry. The applicable test scope and document format are confirmed for that assembly.
Project enquiry
Confirm your cable configuration.
Send the connector ends, fibre grade, length, jacket, quantity and any polarity, labelling or inspection requirements.
