25G SFP28 DAC

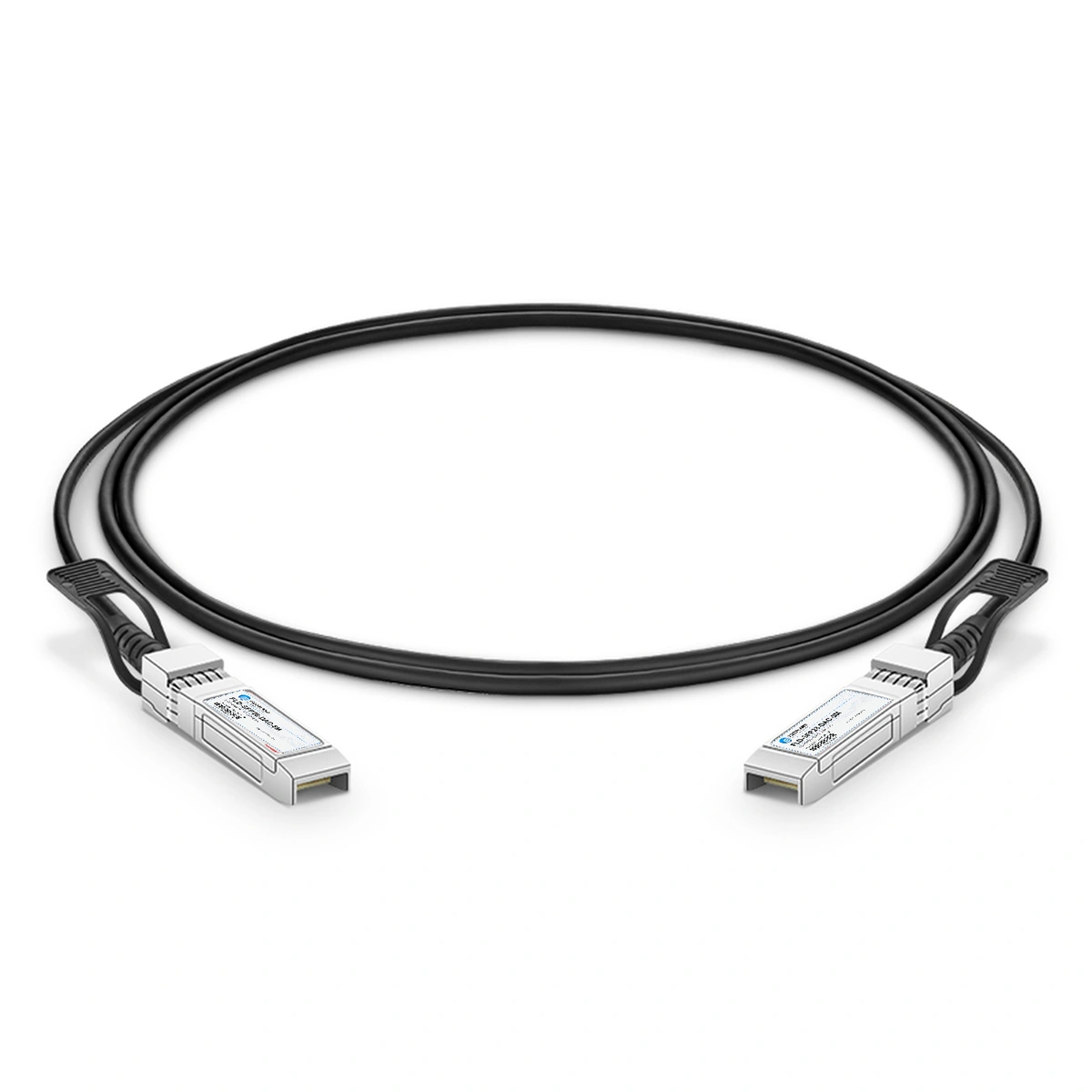

25G SFP28 TO SFP28 DAC 5m

Rate25GReach5mWavelength-Interface-
Fiberland part number
FLD-SFP28-DAC-5M
Unit priceAsk Our Manager

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP28

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SFP28-DAC-5MVendor NameFIBERLAND
Data Rate25GWavelength-
Reach5mForm TypeSFP28
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references11 manufacturer part numbersAcross 7 brands
Showing 8 of 11 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-H25G-CU5MCISCOFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
CAB-S-S-25G-5MARISTAFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
JNP-SFP-25G-DAC-5MJUNIPERFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
720-084606JUNIPERFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
MCP2M00-A005E26LNVIDIAFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
JL489AHPE ARUBAFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
844480-B21HPE ARUBAFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.
R9F93AHPE ARUBAFLD-SFP28-DAC-5M25G SFP28 to SFP28 passive direct-attach copper cable, 5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

How can I verify compatibility before ordering?

Check the network-device manufacturer and model, port type, required data rate, OEM transceiver reference if available, wavelength, reach, connector, fiber type, and software or firmware version when relevant.

Is the optical power of a compatible transceiver different from the OEM version?

A compatible replacement should meet the applicable transmit-power and receiver-sensitivity specifications for the interface it is designed to support.

Can third-party transceivers damage a switch?

A properly designed transceiver that meets the required electrical, mechanical, thermal, and interface specifications should operate within the host platform's intended transceiver interface requirements.

What is EEPROM coding in an optical transceiver?

EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.
