25G SFP28 DAC

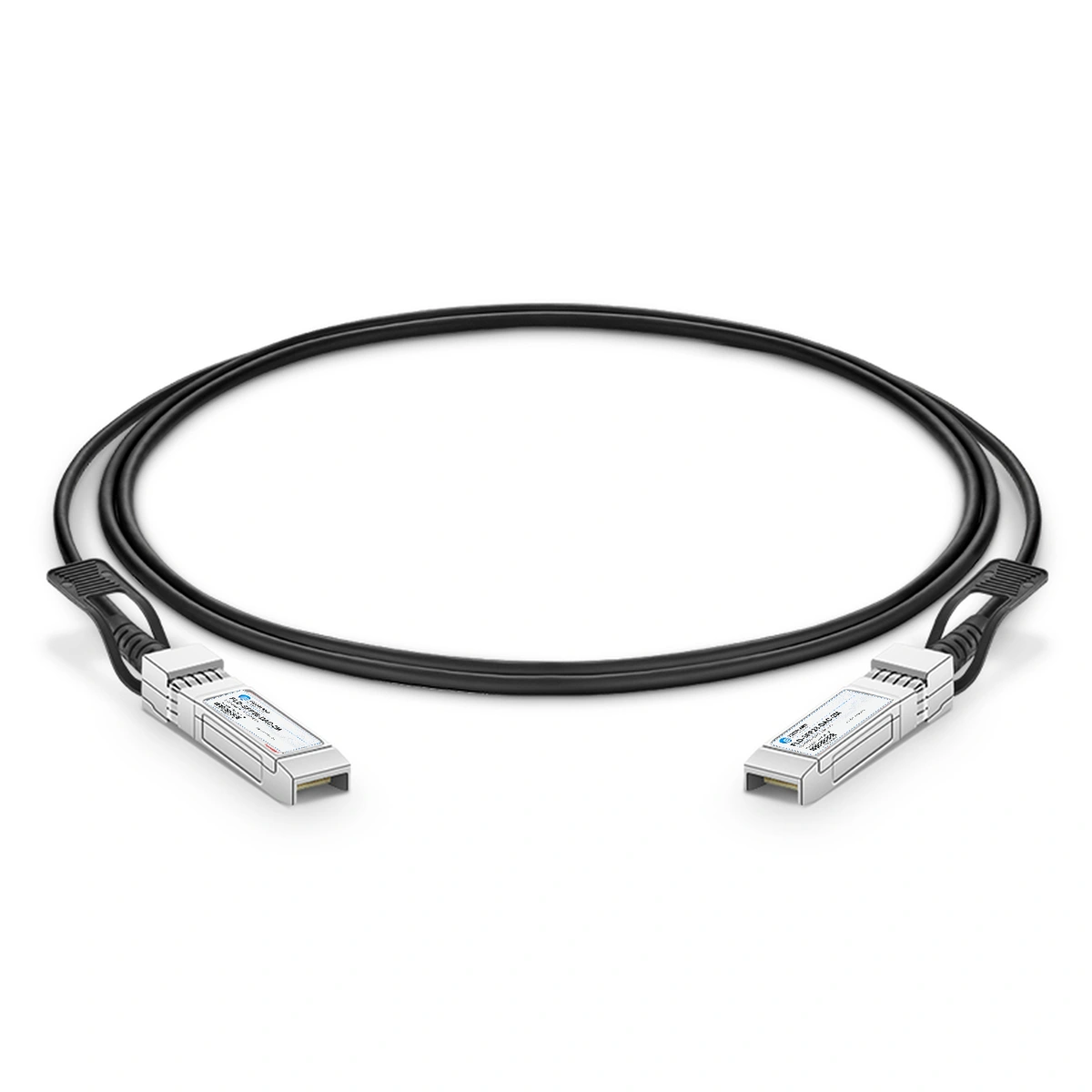

25G SFP28 Direct Attach Copper Cable 2m | FLD-SFP28-DAC-2M | Fiberland

25G SFP28 TO SFP28 DAC 2m

Rate25GReach2mWavelength-Interface-
Fiberland part number
FLD-SFP28-DAC-2M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP28

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SFP28-DAC-2MVendor NameFIBERLAND
Data Rate25GWavelength-
Reach2mForm TypeSFP28
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references6 manufacturer part numbersAcross 4 brands
Showing 6 of 6 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-H25G-CU2MCISCOFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.
CAB-S-S-25G-2MARISTAFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.
MCP2M00-A002NVIDIAFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.
MCP2M00-A002E26NNVIDIAFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.
MCP2M00-A002E30NNVIDIAFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.
SFP-25G-D-CAB-2M-AH3CFLD-SFP28-DAC-2M25G SFP28 to SFP28 passive direct-attach copper cable, 2 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.

How can I tell whether the problem is compatibility-related or an optical-link problem?

Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.

What information does DDM/DOM provide?

DDM/DOM can provide real-time information such as module temperature, supply voltage, transmit optical power, receive optical power, and laser bias current.

Does using compatible optics affect transmission distance?

Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.
