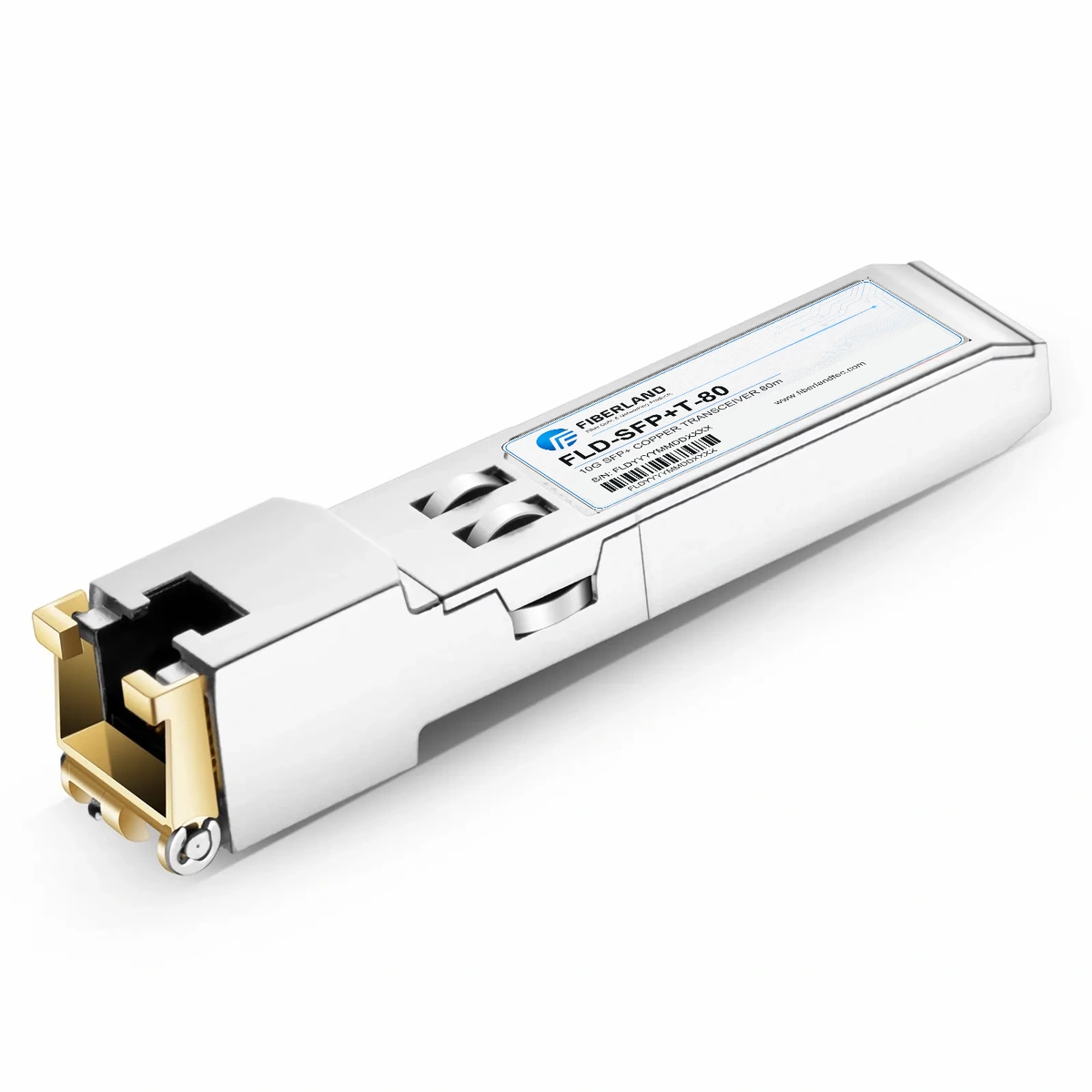

10G SFP+ COPPER TRANSCEIVER 80m
Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.
| Fiberland Part Number | FLD-SFP+T-80 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 10G | Wavelength | - |
| Reach | 80m | Form Type | SFP+ COPPER |
| Optical Interface | RJ45 | DDM Support | - |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | - |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Swipe horizontally to view every field.
| Original part number | Brand | Fiberland part number | Product description |
|---|---|---|---|
| UACC-CM-RJ45-MG | UBIQUITI | FLD-SFP+T-80 | Multi-rate 10G copper SFP+ transceiver with RJ45 interface for 10 Gbps links up to 100 m over Category 6A cable. |
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Abnormal temperature, voltage, TX power, RX power, or bias-current readings may indicate an optical or hardware issue, but they can also result from incorrect calibration or communication between the compatible module and host device.
The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.
Yes. Host compatibility and optical-link compatibility are separate issues. A module may be correctly recognized while the link fails because of fiber, wavelength, FEC, polarity, configuration, or link-budget problems.
Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.
