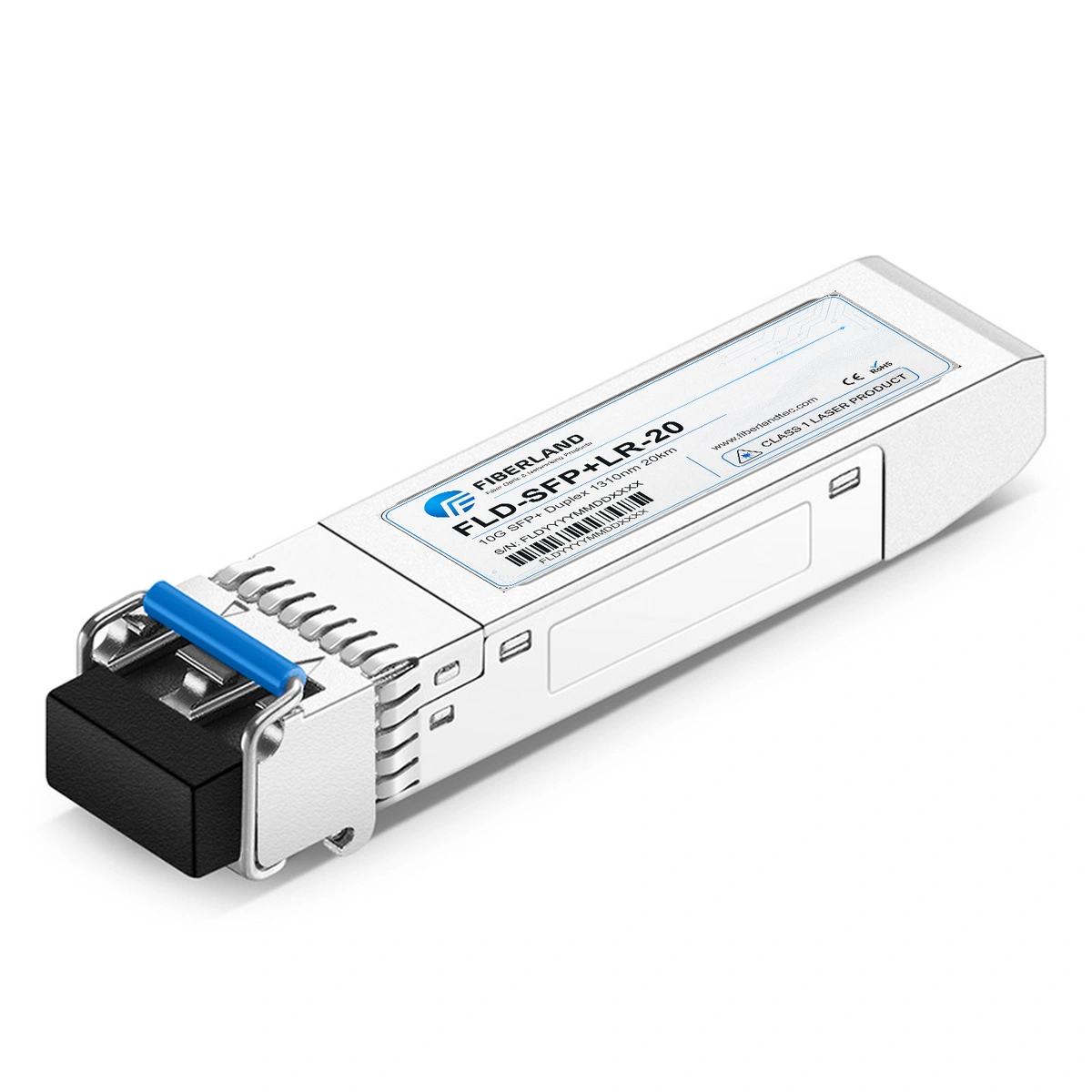

10G SFP+ LR Fiber Optic Transceiver Module 1310nm 20km Duplex LC SMF DDM | FLD-SFP+LR-20 | Fiberland

Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.

Low receive power can result from excessive fiber loss, dirty connectors, damaged fiber, excessive link distance, incorrect wavelength pairing, or insufficient transmit power from the remote transceiver. Compare the measured RX power with the module's specified receiver range.

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.
