10G SFP+ Direct Attach Copper Cable 2m | FLD-SFP+DAC-2M | Fiberland

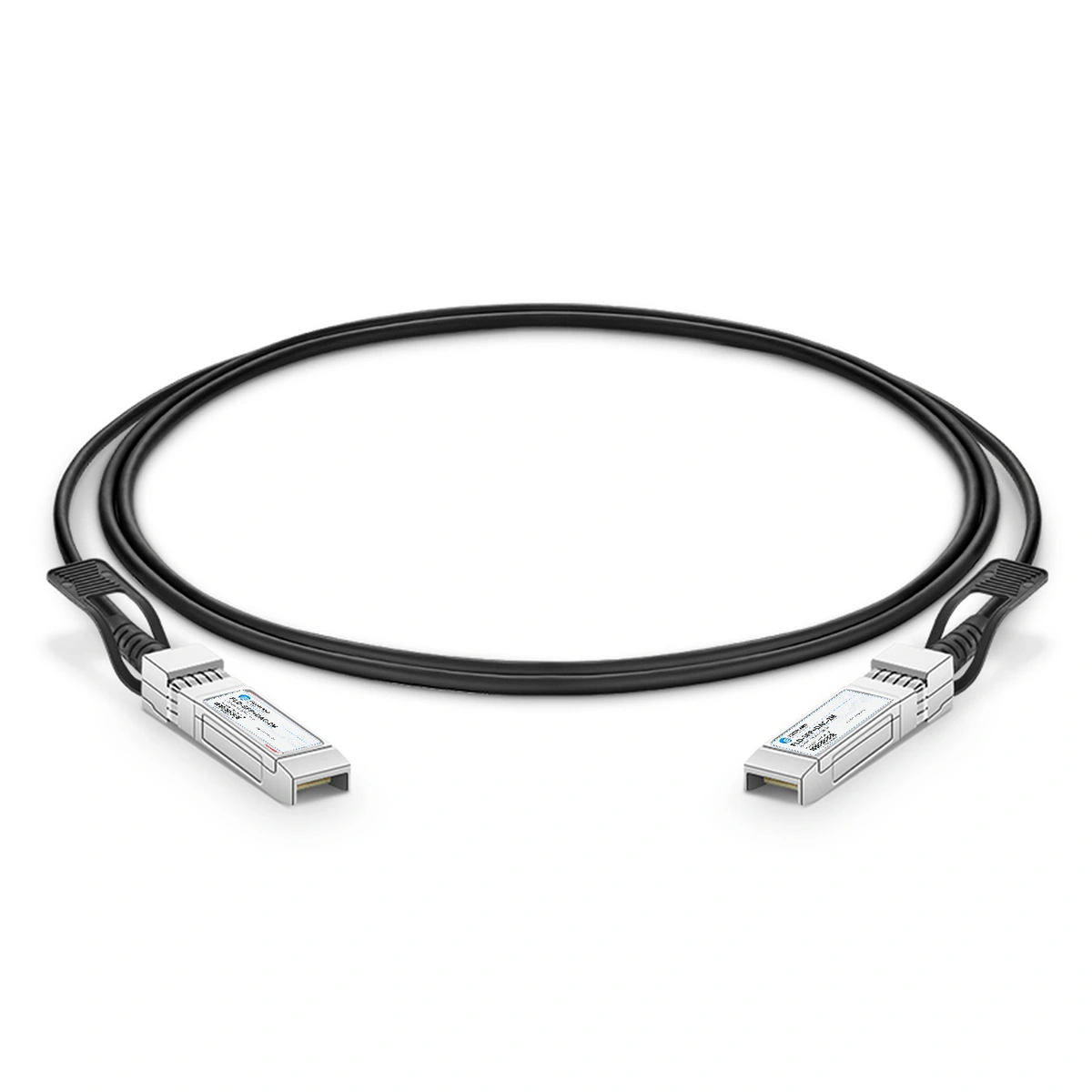

10G SFP+ TO SFP+ DAC 2m

Rate10GReach2mWavelength-Interface-
Fiberland part number
FLD-SFP+DAC-2M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP+

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SFP+DAC-2MVendor NameFIBERLAND
Data Rate10GWavelength-
Reach2mForm TypeSFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references6 manufacturer part numbersAcross 4 brands
Showing 6 of 6 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-H10GB-CU2MCISCOFLD-SFP+DAC-2M10G SFP+ to SFP+ passive 30 awg twinax cable assembly, 2 m.
CAB-SFP-SFP-2MARISTAFLD-SFP+DAC-2M10G SFP+ to SFP+ passive 10gbase-cr cable, 2 m.
JNP-SFP-DAC-2MJUNIPERFLD-SFP+DAC-2M10G SFP+ to SFP+ passive twinax direct-attach cable, 2 m.
MC3309130-002NVIDIAFLD-SFP+DAC-2M10G SFP+ to SFP+ passive copper direct-attach cable, 2 m.
MCP2100-X002BNVIDIAFLD-SFP+DAC-2M10G SFP+ to SFP+ passive copper direct-attach cable, 2 m.
MCP2104-X002BNVIDIAFLD-SFP+DAC-2M10G SFP+ to SFP+ passive copper direct-attach cable, 2 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
