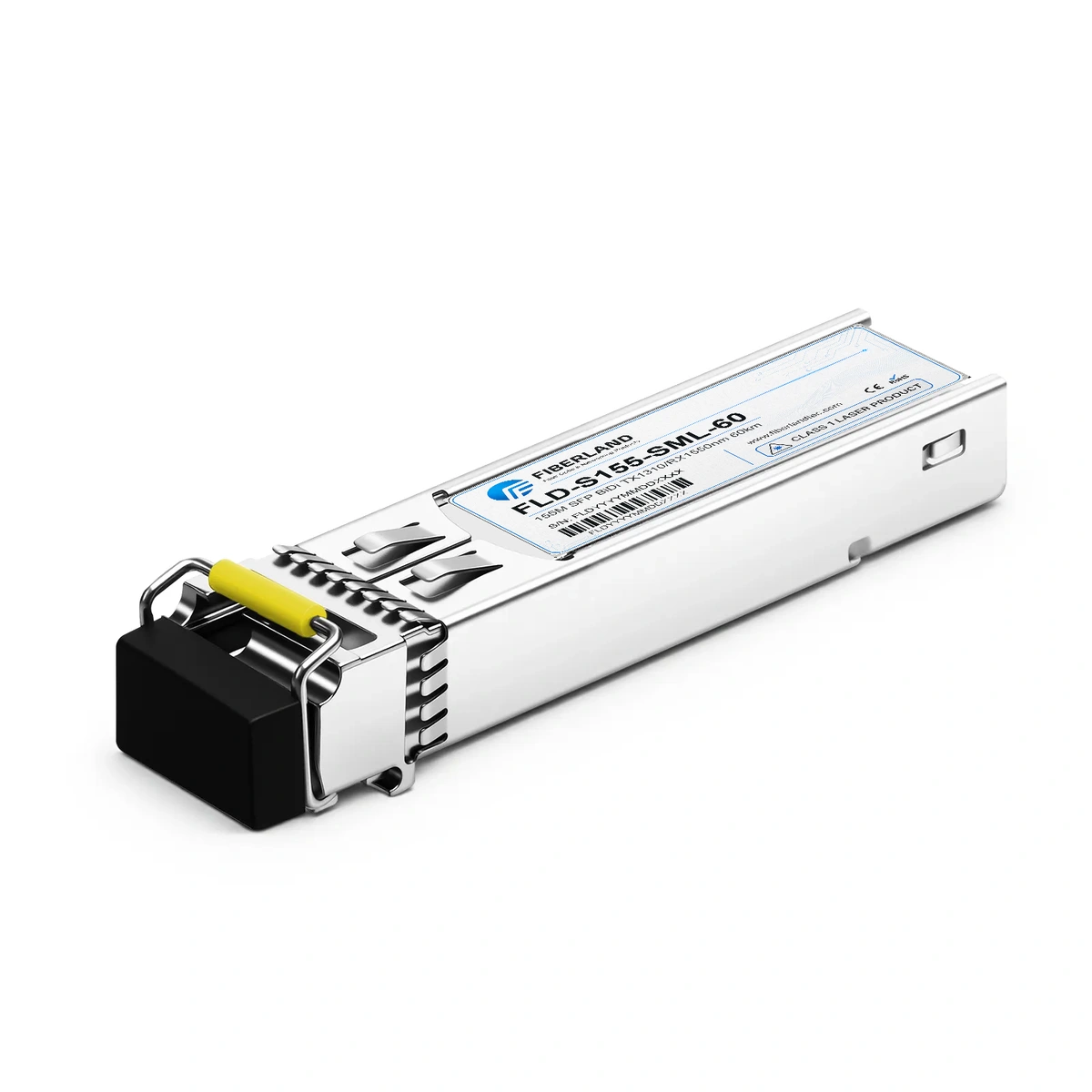

155M BIDI SFP

155M SFP BiDi TX1310/RX1550nm 60km

Rate155MReach60kmWavelength1310/1550InterfaceBIDI LC/SC
Fiberland part number
FLD-S155-SML-60
Unit price15.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI SFP

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-S155-SML-60Vendor NameFIBERLAND
Data Rate155MWavelength1310/1550
Reach60kmForm TypeBIDI SFP
Optical InterfaceBIDI LC/SCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references2 manufacturer part numbersAcross 2 brands
Showing 2 of 2 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
MFB-TFA60PLANETFLD-S155-SML-60PLANET industrial 100BASE-BX-U SFP transceiver, TX 1310 nm/RX 1550 nm, 60 km over single-mode fiber, WDM LC connector.
TN-SFP-OC3SB61TRANSITION NETWORKSFLD-S155-SML-60Transition Networks bidirectional 100BASE-FX/OC-3 SFP, TX 1310 nm/RX 1550 nm, 60 km over single-mode fiber, LC connector, with DMI.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why is the transceiver recognized but DDM/DOM information is missing?

The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.

Can OEM and compatible transceivers be used in the same switch?

In many networks, OEM and compatible transceivers are deployed in different ports of the same device. Each module should meet the requirements of its individual interface.

Why does my compatible transceiver show low RX optical power?

Low receive power can result from excessive fiber loss, dirty connectors, damaged fiber, excessive link distance, incorrect wavelength pairing, or insufficient transmit power from the remote transceiver. Compare the measured RX power with the module's specified receiver range.

What switch information should I provide when requesting a compatible transceiver?

Providing the switch or router brand, exact model, port speed, operating-system version, and required OEM transceiver part number helps identify the correct compatibility profile.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.
