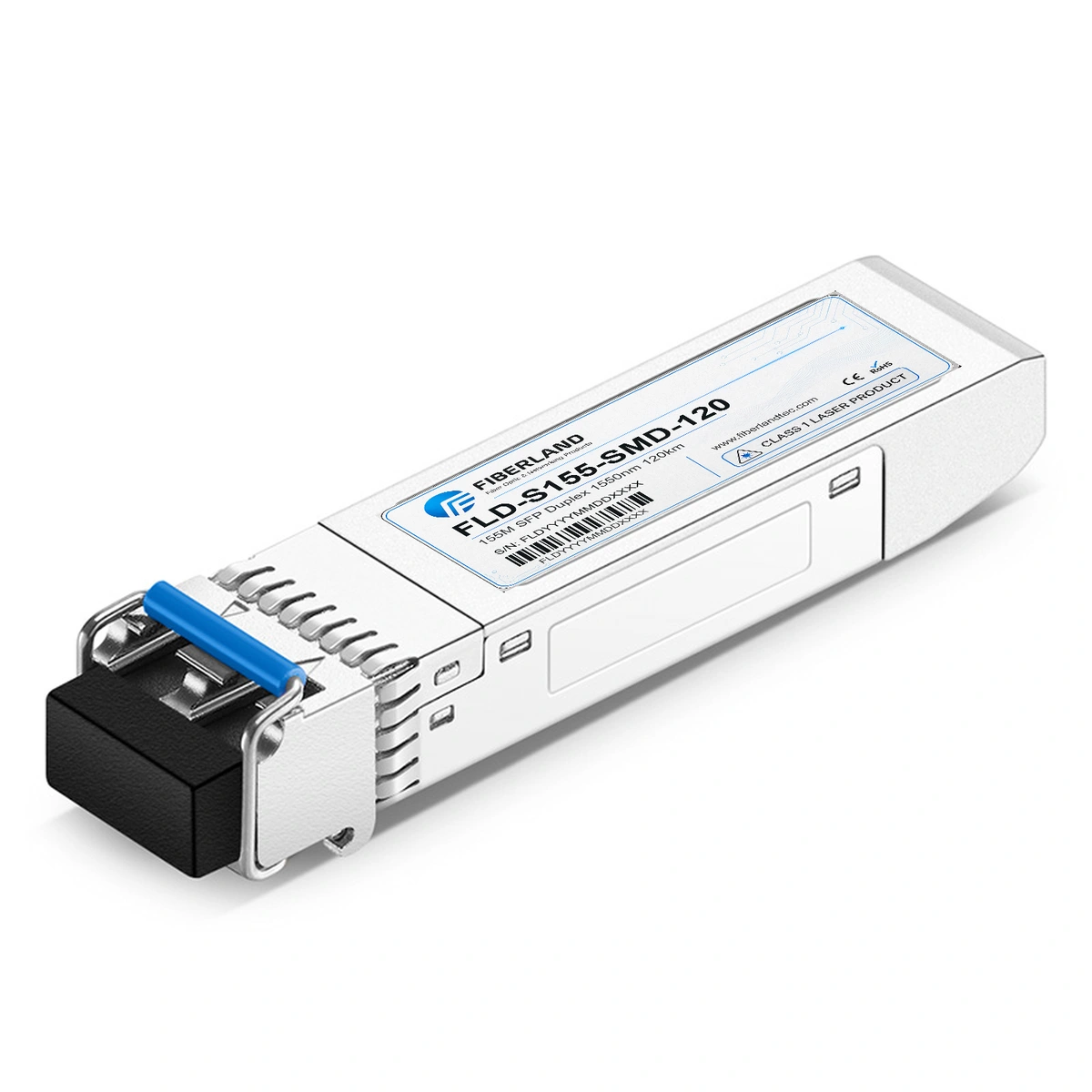

155M SFP Duplex 1550nm 120km
Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.
| Fiberland Part Number | FLD-S155-SMD-120 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 155M | Wavelength | 1550 |
| Reach | 120km | Form Type | SFP |
| Optical Interface | DUPLEX LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Swipe horizontally to view every field.
| Original part number | Brand | Fiberland part number | Product description |
|---|---|---|---|
| TN-SFP-OC3S12 | TRANSITION NETWORKS | FLD-S155-SMD-120 | Transition Networks 100BASE-FX/OC-3 SFP transceiver, 1550 nm, 120 km over single-mode fiber, LC connector, with DMI. |
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Yes. The transceivers do not normally need to be from the same manufacturer. Their Ethernet standard, wavelength, fiber type, lane configuration, reach, and other link requirements must be compatible.
It usually means the host device does not recognize or approve the identification information stored in the module. It does not necessarily indicate an optical failure.
Low receive power can result from excessive fiber loss, dirty connectors, damaged fiber, excessive link distance, incorrect wavelength pairing, or insufficient transmit power from the remote transceiver. Compare the measured RX power with the module's specified receiver range.
Different switch models, hardware revisions, operating systems, and firmware versions may use different transceiver validation rules. A module compatible with one platform may require different coding for another.
Check the network-device manufacturer and model, port type, required data rate, OEM transceiver reference if available, wavelength, reach, connector, fiber type, and software or firmware version when relevant.
