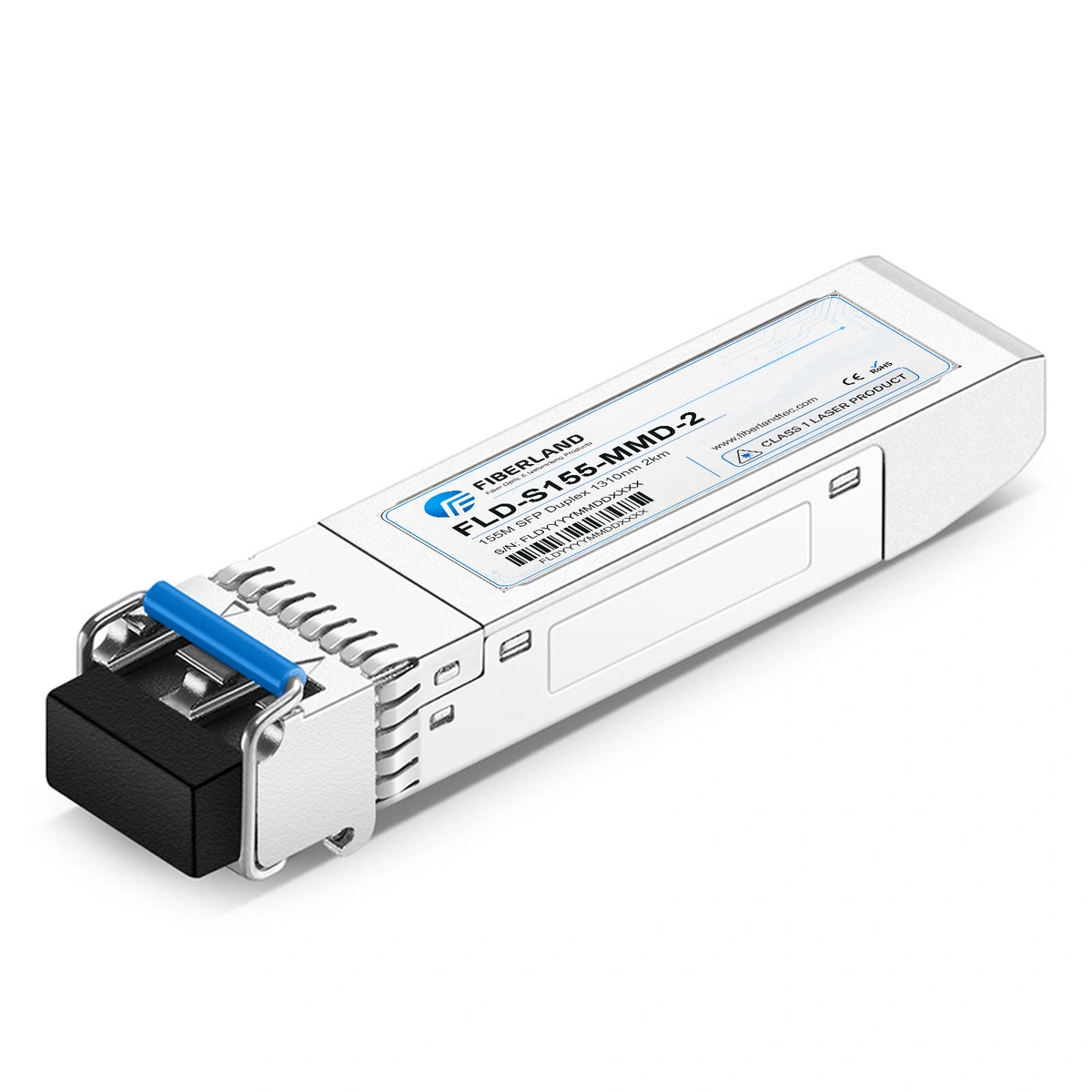

155M Duplex SFP

155M SFP Duplex 1310nm 2km

Rate155MReach2kmWavelength1310InterfaceDUPLEX LC
Fiberland part number
FLD-S155-MMD-2
Unit price3.50USD / piece

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-S155-MMD-2Vendor NameFIBERLAND
Data Rate155MWavelength1310
Reach2kmForm TypeSFP
Optical InterfaceDUPLEX LCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeMM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references7 manufacturer part numbersAcross 5 brands
Showing 7 of 7 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-OC3-MMCISCOFLD-S155-MMD-2Cisco OC-3/STM-1 multimode SFP transceiver, nominal 1310 nm, 2 km reach, dual LC/PC connector, with digital optical monitoring.
ONS-SI-155-SR-MMCISCOFLD-S155-MMD-2Cisco ONS OC-3/STM-1 short-reach SFP transceiver, 1310 nm, 2 km over multimode fiber, LC connector, industrial temperature range.
S4015731HUAWEIFLD-S155-MMD-2Huawei 155 Mbps eSFP transceiver, 1310 nm, 2 km over multimode fiber, LC connector, commercial temperature range.
1184543P3ADTRANFLD-S155-MMD-2ADTRAN OC-3 short-reach SFP transceiver, 1310 nm, 2 km over multimode fiber.
1184543PG3ADTRANFLD-S155-MMD-2ADTRAN OC-3 short-reach SFP transceiver, 1310 nm, 2 km over multimode fiber.
NTTP02ADNORTELFLD-S155-MMD-2Nortel STM-1 SR-0 enhanced SFP transceiver, nominal 1310 nm, 2 km over multimode fiber.
TN-SFP-OC3MTRANSITION NETWORKSFLD-S155-MMD-2Transition Networks 100BASE-FX/OC-3 SFP transceiver, nominal 1310 nm, 2 km over multimode fiber, duplex LC, with DMI.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.

Can a transceiver be compatible with the switch but still fail to link?

Yes. Host compatibility and optical-link compatibility are separate issues. A module may be correctly recognized while the link fails because of fiber, wavelength, FEC, polarity, configuration, or link-budget problems.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.

Why are the DDM/DOM readings incorrect or abnormal?

Abnormal temperature, voltage, TX power, RX power, or bias-current readings may indicate an optical or hardware issue, but they can also result from incorrect calibration or communication between the compatible module and host device.

Does using compatible optics affect transmission distance?

Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.
