100G DUPLEX QSFP28

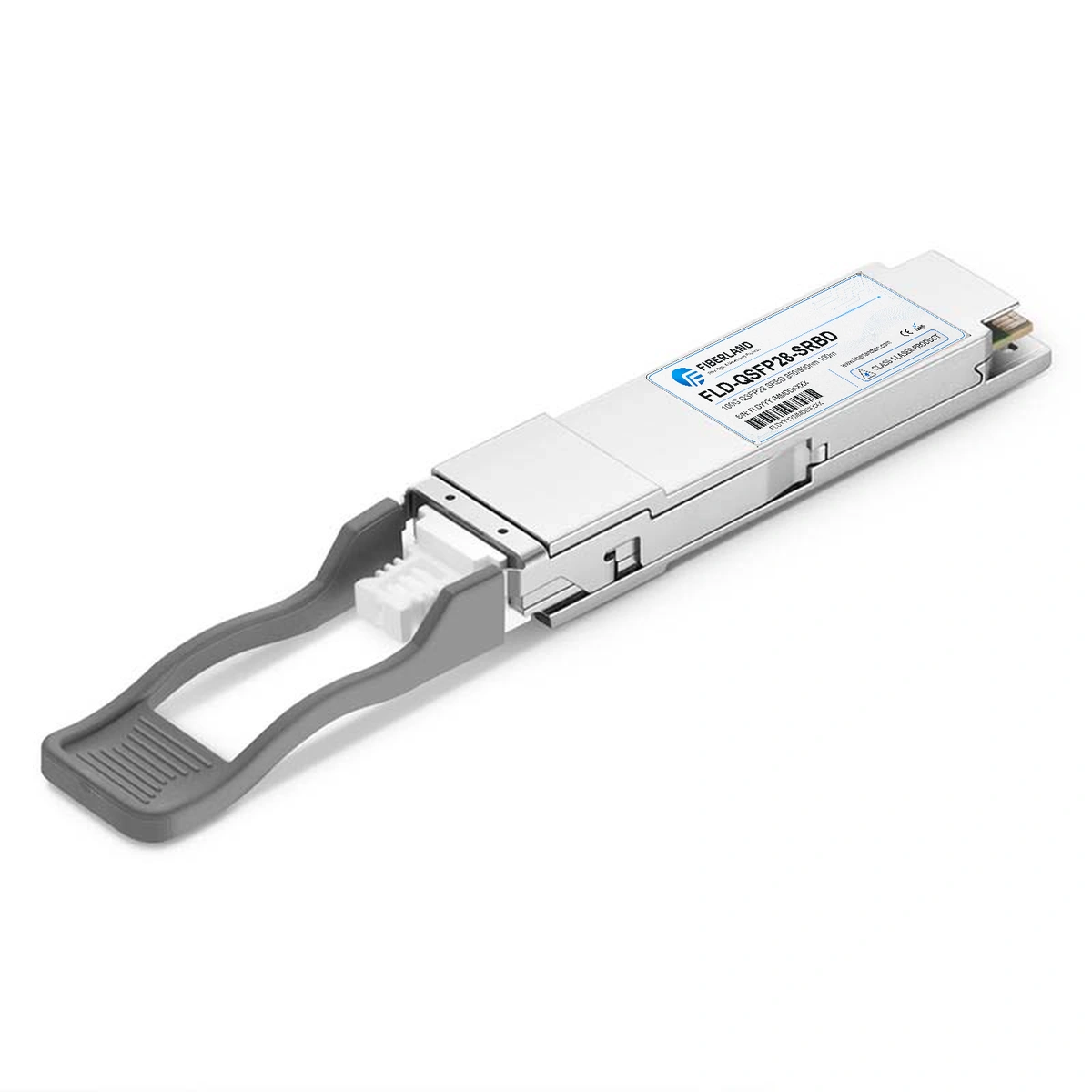

100G QSFP28 SRBD Fiber Optic Transceiver Module 850/900nm 100m LC MMF DDM | FLD-QSFP28-SRBD | Fiberland

100G QSFP28 SRBD 850/900nm 100m

Rate100GReach100mWavelength850/900InterfaceLC
Fiberland part number
FLD-QSFP28-SRBD
Unit price325.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP28

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP28-SRBDVendor NameFIBERLAND
Data Rate100GWavelength850/900
Reach100mForm TypeQSFP28
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeMM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references6 manufacturer part numbersAcross 5 brands
Showing 6 of 6 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-40/100-SRBDCISCOFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
QSFP-100G-SRBDARISTAFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
JNP-QSFP-100G-BXSRJUNIPERFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
845972-B21HPFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
QSFP-100G-BIDI-MM850H3CFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
QSFP-100G-BIDI-MM850-G2H3CFLD-QSFP28-SRBD100G bidirectional short-reach QSFP28 transceiver, 850/900 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Will DOM values appear correctly on third-party transceivers?

With a properly compatible module and supported host platform, DOM/DDM values should normally be accessible through the network equipment's management interface.

Why is there no TX optical power from the compatible transceiver?

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.

How should I troubleshoot a transceiver that is recognized but has no optical link?

Check transmit and receive power, fiber polarity, connector cleanliness, wavelength, fiber type, link distance, FEC configuration, port speed, and the specifications of the transceiver at the opposite end.

Does MSA compliance guarantee switch compatibility?

No. MSA compliance helps ensure standardized physical and electrical interfaces, but individual equipment vendors may also use platform-specific identification or validation requirements.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.
