100G DUPLEX QSFP28

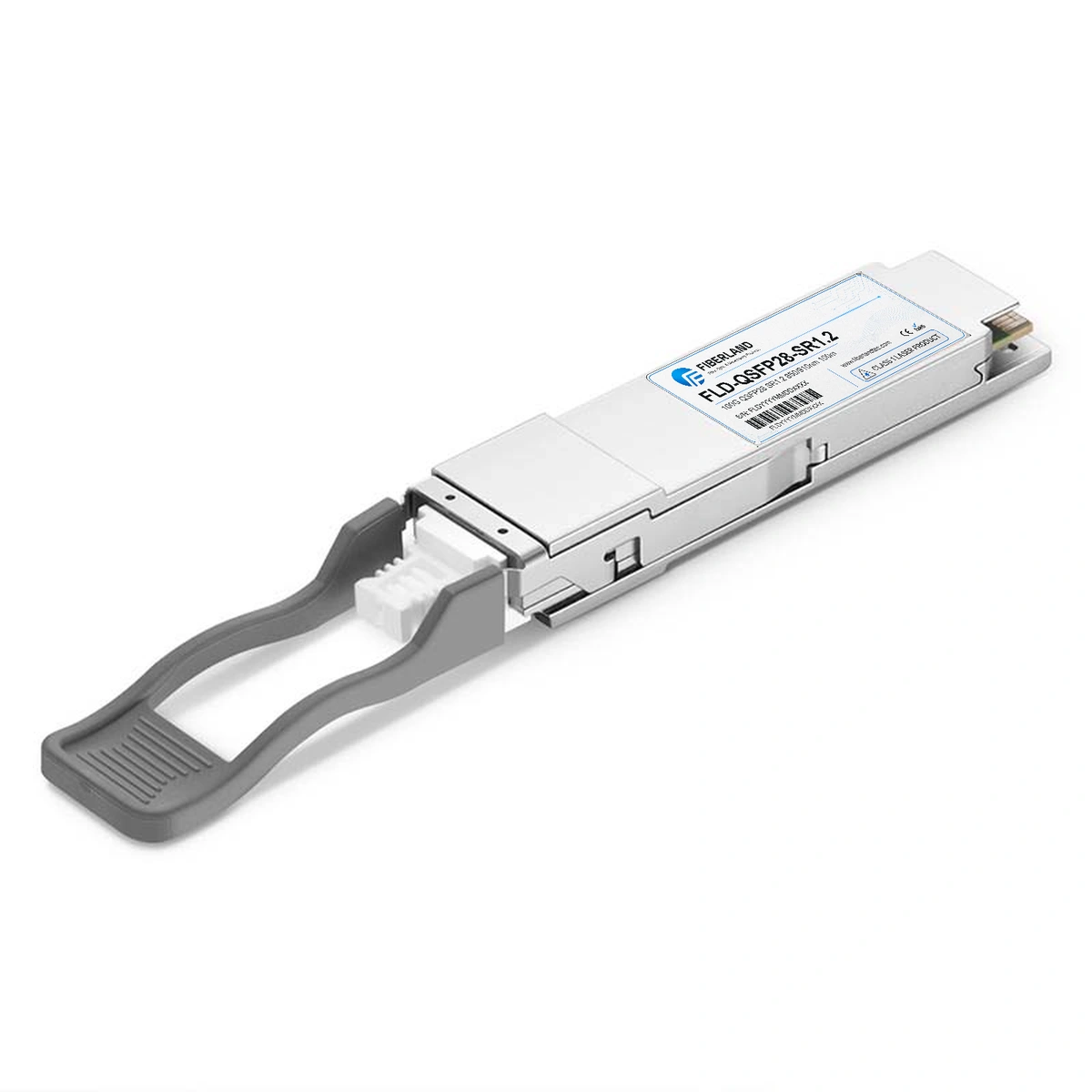

100G QSFP28 SR1.2 Fiber Optic Transceiver Module 850/910nm 100m LC MMF DDM | FLD-QSFP28-SR1.2 | Fiberland

100G QSFP28 SR1.2 850/910nm 100m

Rate100GReach100mWavelength850/910InterfaceLC
Fiberland part number
FLD-QSFP28-SR1.2
Unit price385.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP28

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP28-SR1.2Vendor NameFIBERLAND
Data Rate100GWavelength850/910
Reach100mForm TypeQSFP28
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeMM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 4 brands
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-100G-SR1.2CISCOFLD-QSFP28-SR1.2100GBASE-SR1.2 bidirectional QSFP28 transceiver, 850/910 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
QSFP-100G-SR1.2ARISTAFLD-QSFP28-SR1.2100GBASE-SR1.2 bidirectional QSFP28 transceiver, 850/910 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
QSFP-100G-SR1P2JUNIPERFLD-QSFP28-SR1.2100GBASE-SR1.2 bidirectional QSFP28 transceiver, 850/910 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.
S4B44AHPFLD-QSFP28-SR1.2100GBASE-SR1.2 bidirectional QSFP28 transceiver, 850/910 nm band, 100 m over OM4 multimode fiber, duplex LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
