100G DUPLEX QSFP28

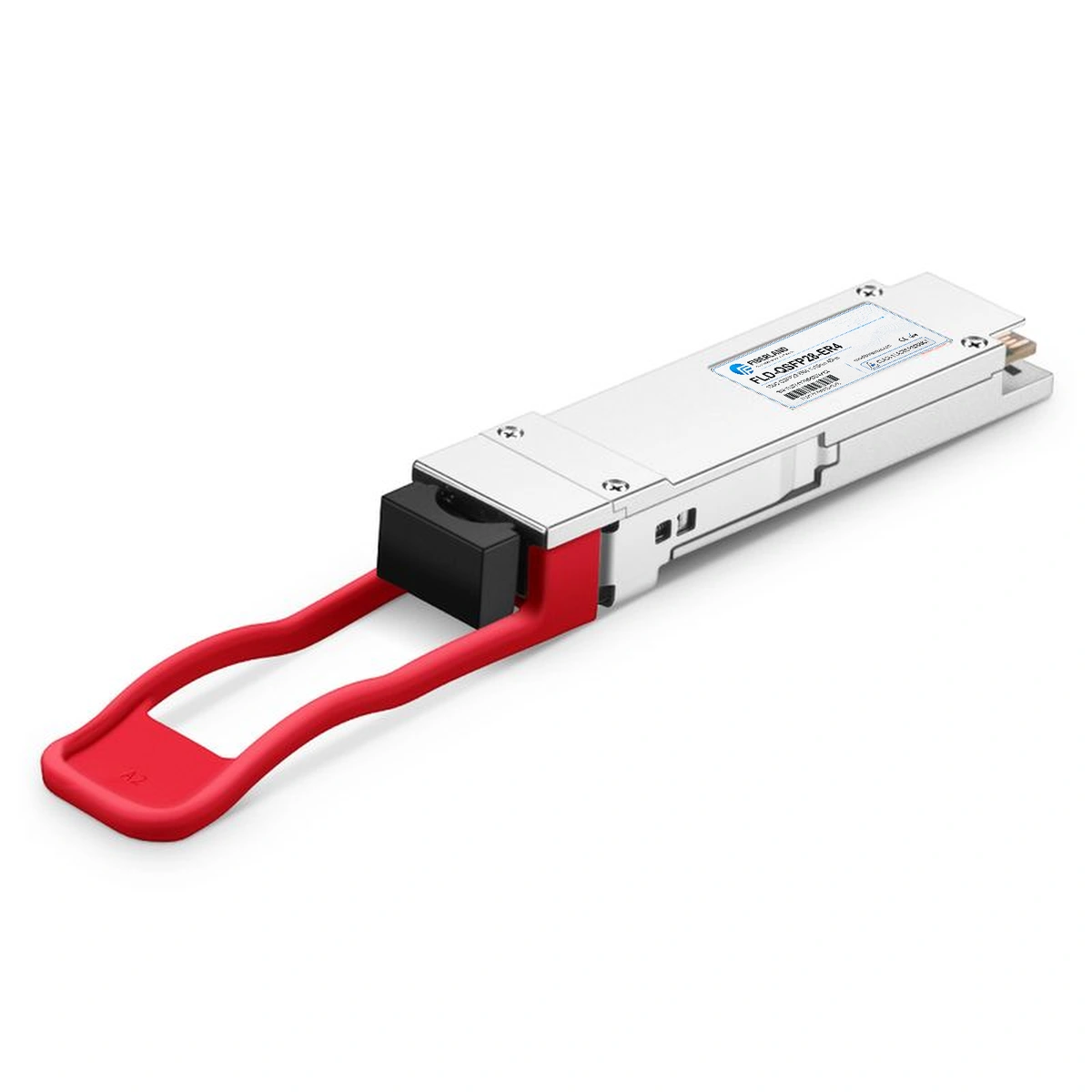

100G QSFP28 ER4 Fiber Optic Transceiver Module 1310nm 40km LC SMF DDM | FLD-QSFP28-ER4 | Fiberland

100G QSFP28 ER4 1310nm 40km

Rate100GReach40kmWavelength1310InterfaceLC
Fiberland part number
FLD-QSFP28-ER4
Unit price550.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP28

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP28-ER4Vendor NameFIBERLAND
Data Rate100GWavelength1310
Reach40kmForm TypeQSFP28
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references13 manufacturer part numbersAcross 8 brands
Showing 8 of 13 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-100G-ER4L-SCISCOFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
QSFP-100G-ERL4ARISTAFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
QSFP-100G-ER4LJUNIPERFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
740-071175JUNIPERFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
JL743AHPFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
QSFP-100G-ER4L-WDM1300H3CFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
QSFP-100G-ER4-WDM1300H3CFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
SO-QSFP28-ER4SMARTOPTICSFLD-QSFP28-ER4100G ER4/ER4-Lite QSFP28 transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why does my switch show an “unsupported transceiver” warning?

Some network devices validate vendor information stored in the transceiver EEPROM. If the module's coding is not recognized by the host platform, the switch may display an unsupported or non-certified transceiver warning.

Can OEM and compatible transceivers be used in the same switch?

In many networks, OEM and compatible transceivers are deployed in different ports of the same device. Each module should meet the requirements of its individual interface.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.

How should I troubleshoot a compatible transceiver that is not recognized?

Confirm the module part number and compatibility profile, reseat the module, inspect the port status, check device logs, verify the operating-system version, and compare the module information reported by the host.

Why is EEPROM programming important for compatibility?

Network equipment may inspect the module's EEPROM information before allowing normal operation. Correct programming helps the host identify and manage the transceiver properly.
