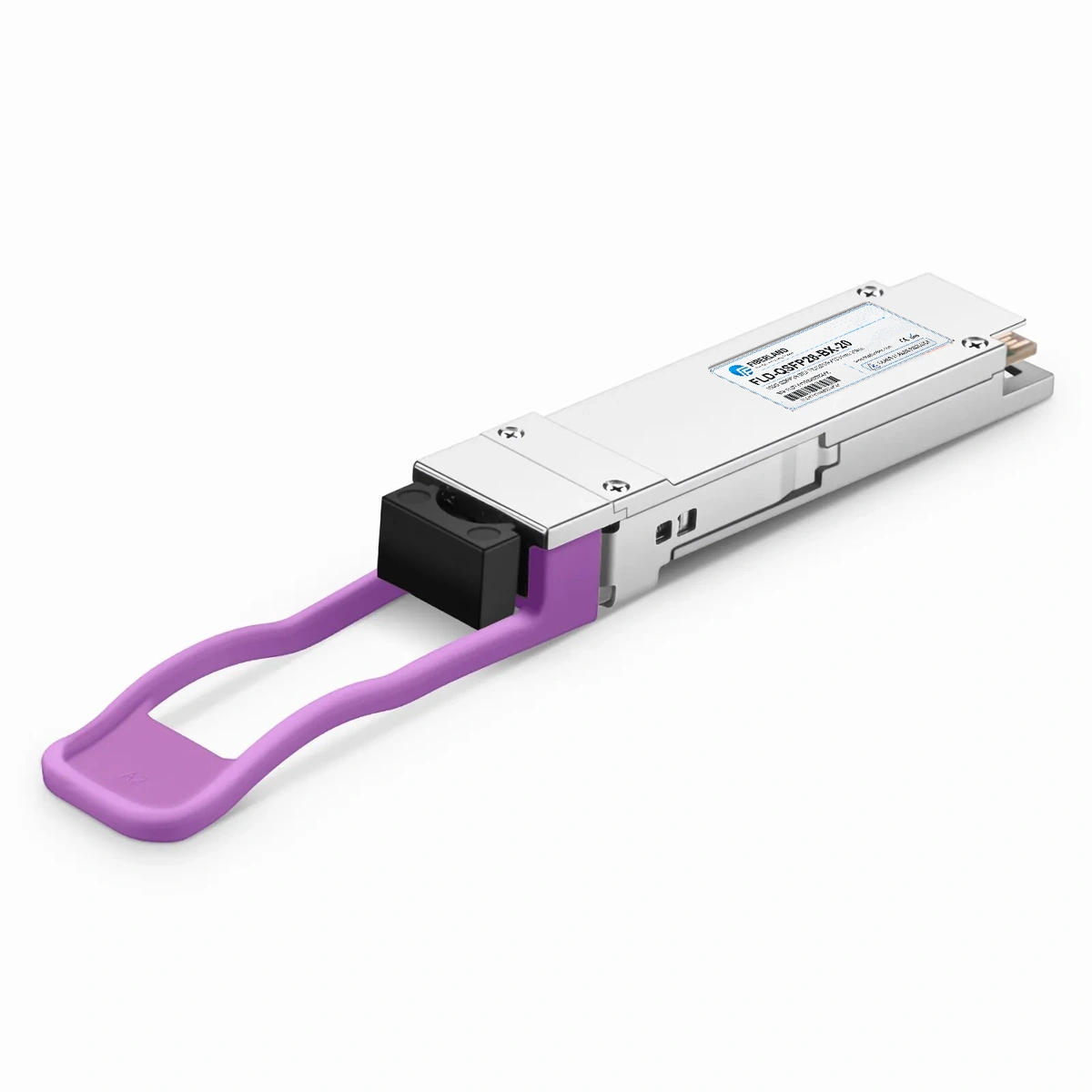

100G QSFP28 BiDi TX1291/RX1331nm 20km
Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.
| Fiberland Part Number | FLD-QSFP28-BX-20 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 100G | Wavelength | 1291/1331 |
| Reach | 20km | Form Type | BIDI QSFP28 |
| Optical Interface | LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
The exact OEM reference is useful for identifying compatibility, but the optical specifications and host-platform requirements must also match the intended application.
FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.
The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.
Compatible modules can be used in telecom and service-provider environments when they meet the required optical specifications, environmental requirements, protocols, and host compatibility.
Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.
