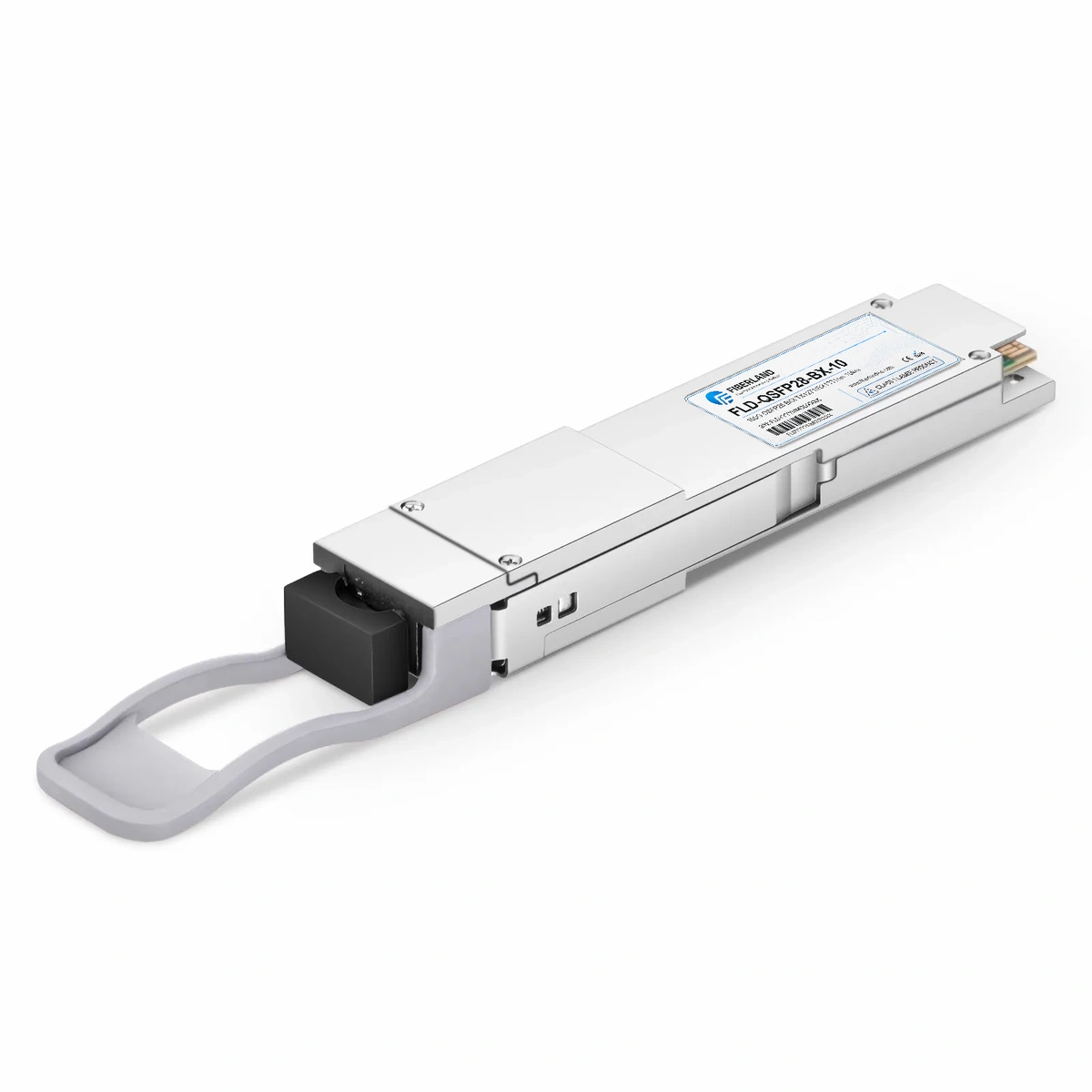

| Fiberland Part Number | FLD-QSFP28-BX-10 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 100G | Wavelength | 1271/1331 |
| Reach | 10km | Form Type | BIDI QSFP28 |
| Optical Interface | LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Swipe horizontally to view every field.
| Original part number | Brand | Fiberland part number | Product description |
|---|---|---|---|
| TQ2020-BADC-SO | SMARTOPTICS | FLD-QSFP28-BX-10 | 100G single-fiber bidirectional QSFP28 transceiver, TX 1271 nm / RX 1331 nm, 10 km over SMF, simplex LC, with digital diagnostics. |
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Yes. The transceivers do not normally need to be from the same manufacturer. Their Ethernet standard, wavelength, fiber type, lane configuration, reach, and other link requirements must be compatible.
Start with the host equipment and port requirements, then match the data rate, form factor, wavelength, reach, connector, fiber type, optical standard, and OEM compatibility. For high-speed interfaces, also verify FEC and other platform-specific requirements.
Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.
In many networks, OEM and compatible transceivers are deployed in different ports of the same device. Each module should meet the requirements of its individual interface.
Equipment compatibility determines whether the host device recognizes and operates with the module. Optical compatibility determines whether the two ends of the fiber link can communicate correctly. A successful deployment requires both.
