40G QSFP+ BREAKOUT DAC

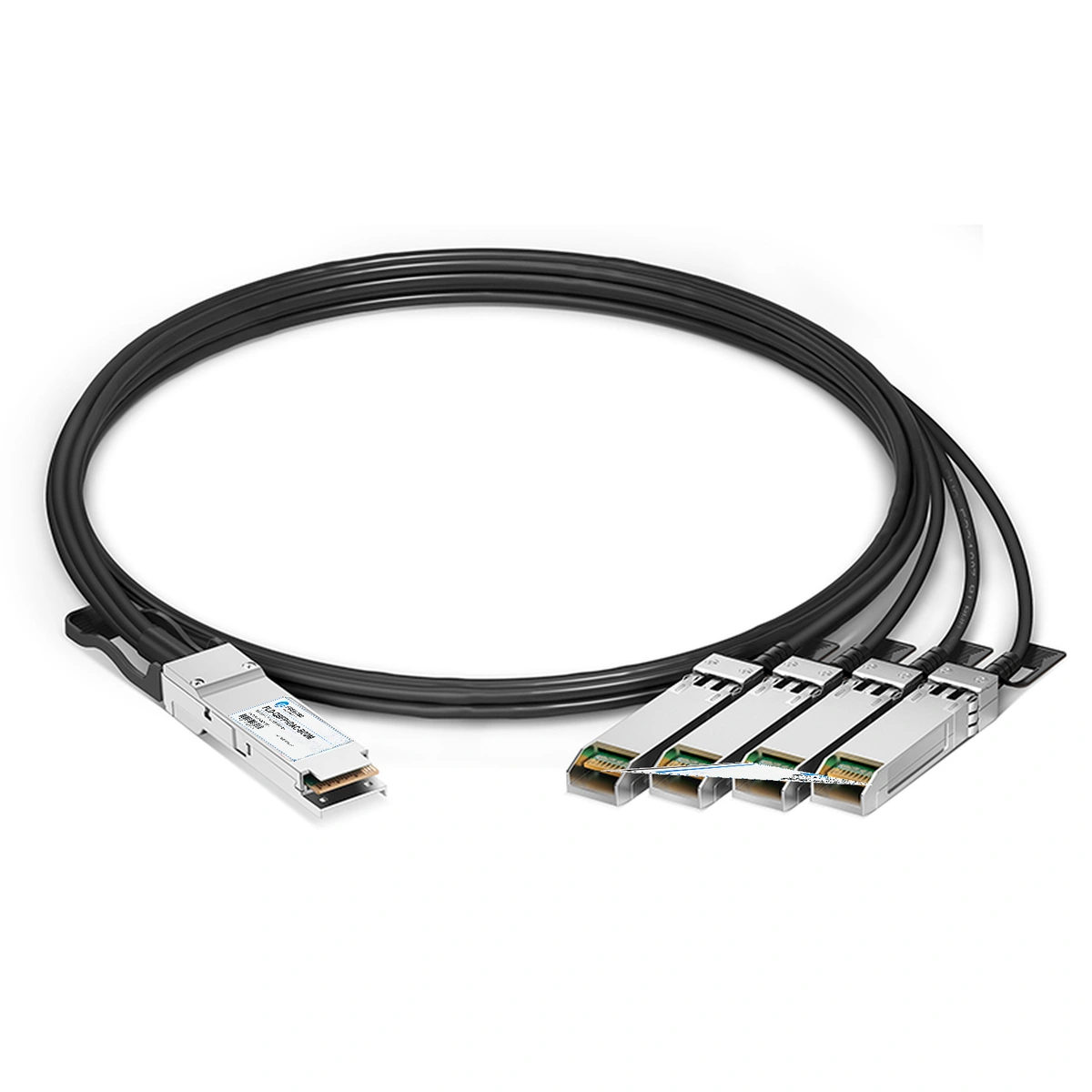

40G QSFP+ TO 4X10G SFP+ 2m

Rate40G ~10GReach2mWavelength-Interface-
Fiberland part number
FLD-QSFP+DAC-BO2M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP+ - SFP+

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP+DAC-BO2MVendor NameFIBERLAND
Data Rate40G ~10GWavelength-
Reach2mForm TypeQSFP+ - SFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 3 brands
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
CAB-Q-S-2MARISTAFLD-QSFP+DAC-BO2M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 2 m.
MCP7904-X002ANVIDIAFLD-QSFP+DAC-BO2M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 2 m.
10203EXTREMEFLD-QSFP+DAC-BO2M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 2 m.
40G-DACP-QSFP4SFP2MEXTREMEFLD-QSFP+DAC-BO2M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 2 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
