400G QSFP-DD

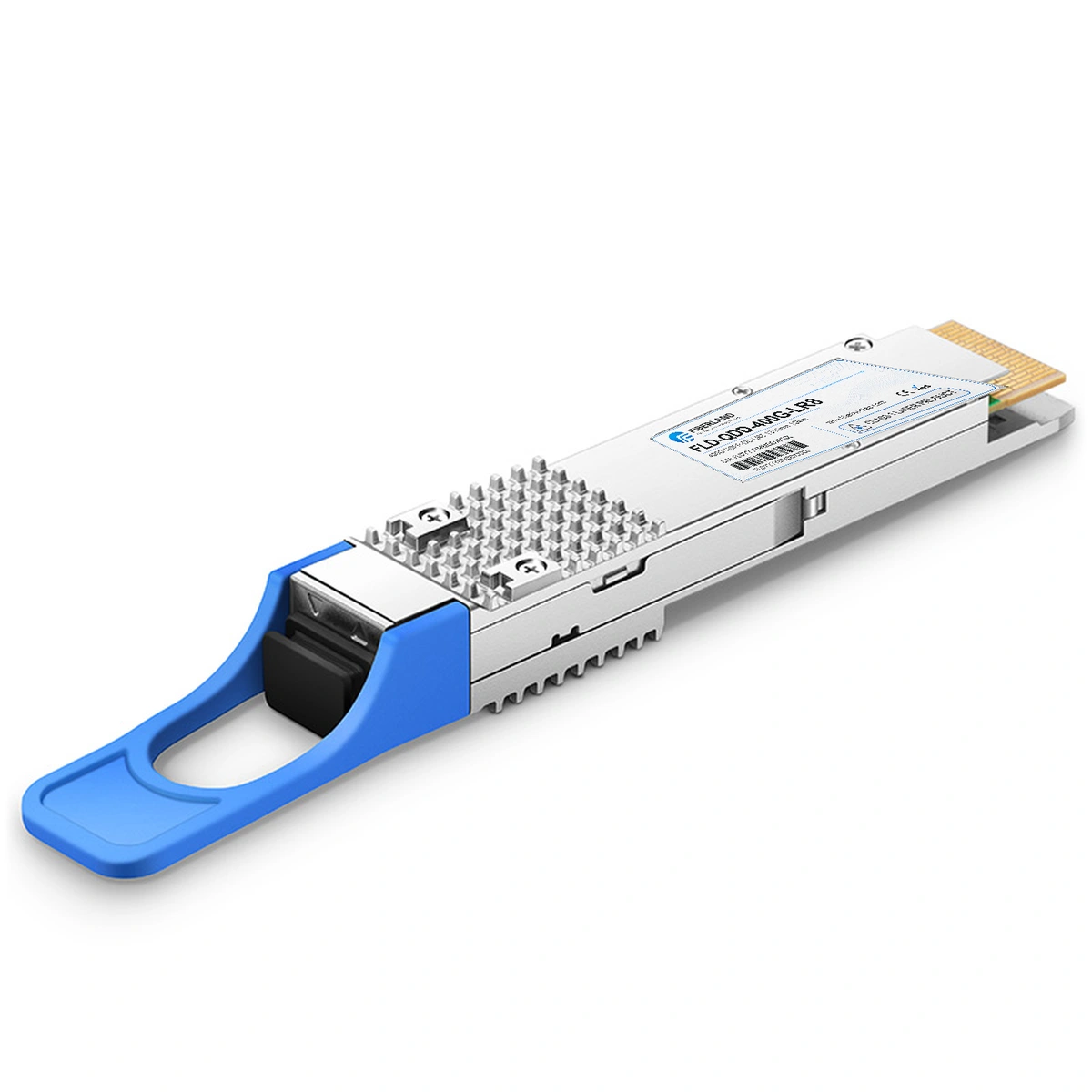

400G QSFP-DD LR8 Fiber Optic Transceiver Module 1310nm 10km LC SMF DDM | FLD-QDD-400G-LR8 | Fiberland

400G QSFP-DD LR8 1310nm 10km

Rate400GReach10kmWavelength1310InterfaceLC
Fiberland part number
FLD-QDD-400G-LR8
Unit price550.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP-DD

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QDD-400G-LR8Vendor NameFIBERLAND
Data Rate400GWavelength1310
Reach10kmForm TypeQSFP-DD
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references6 manufacturer part numbersAcross 5 brands
Showing 6 of 6 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QDD-400G-LR8-SCISCOFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
QDD-400G-LR8ARISTAFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
QDD-400G-LR8JUNIPERFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
740-082823JUNIPERFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
QSFPDD-400G-LR8-WDM1300H3CFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
FTCD1323E1PCLCOHERENT / FINISARFLD-QDD-400G-LR8400GBASE-LR8 QSFP-DD transceiver, eight LAN-WDM lanes in the 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Can third-party transceivers damage a switch?

A properly designed transceiver that meets the required electrical, mechanical, thermal, and interface specifications should operate within the host platform's intended transceiver interface requirements.

Why does replacing an OEM transceiver with a compatible transceiver result in no link?

First verify that the compatible replacement matches the OEM module's form factor, data rate, wavelength, reach, fiber type, connector, and interface standard. Then confirm that it has the correct compatibility coding for the host platform.

Are compatible transceivers suitable for data centers?

Yes. Compatible optical modules are widely used for server, switch, storage, and data-center interconnect applications when the correct interface and compatibility requirements are met.

How can I tell whether the problem is compatibility-related or an optical-link problem?

Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.

Are compatible transceivers suitable for enterprise networks?

Yes. They can be used in enterprise switching, routing, storage, campus networks, and other applications when properly matched to the network equipment and link requirements.
