10/100M MEDIA CONVERTER

10/100M BiDi Fiber Media Converter 1310/1550nm 40km SC/ST/FC SMF | FLD-MC-ASM-WDM-SM-40A/B | Fiberland

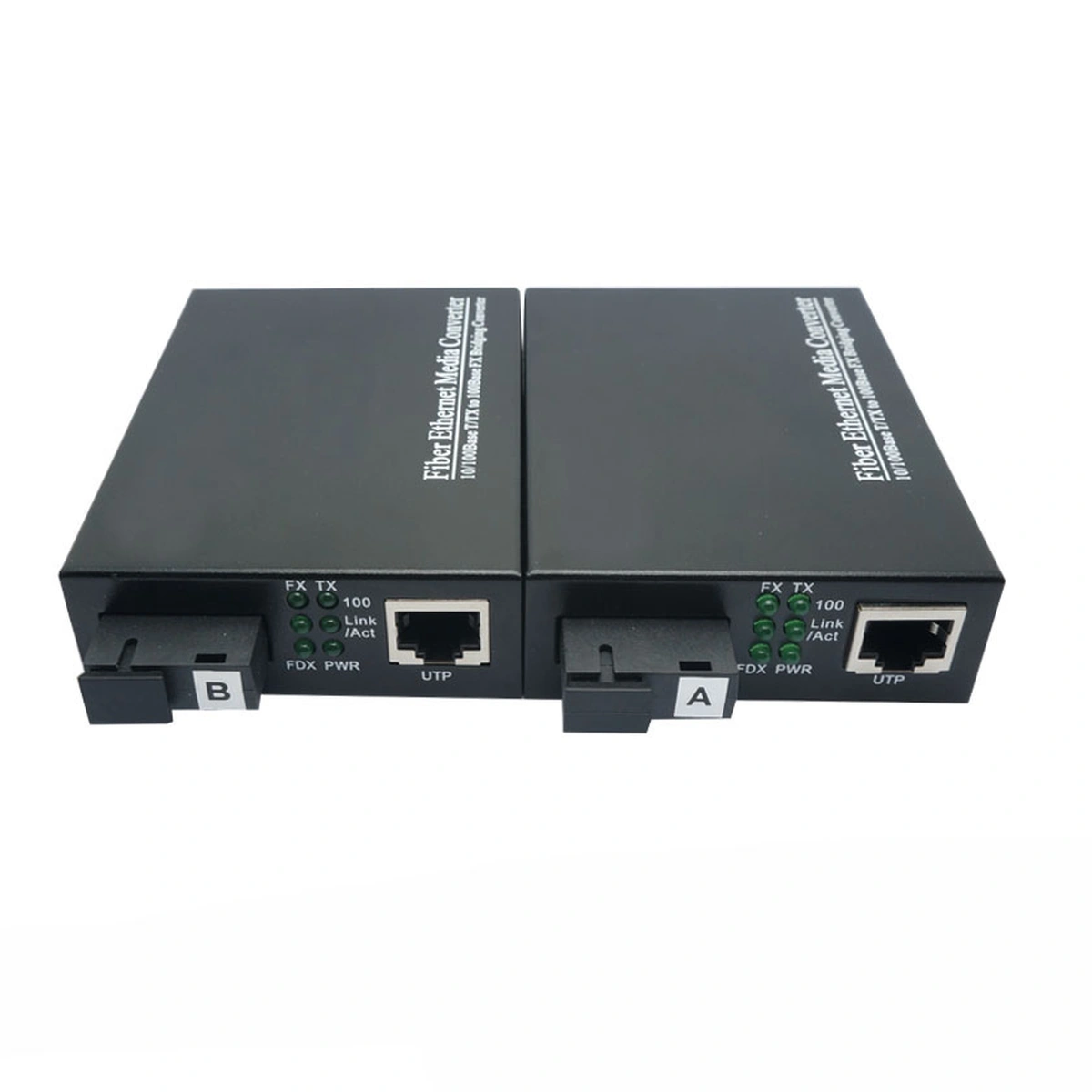

10/100M BIDI Fiber Media Converter 1310/1550nm 40km SC/ST/FC SMF

Rate10/100MReach40kmWavelength1310/1550InterfaceSC/ST/FC
Fiberland part number
FLD-MC-ASM-WDM-SM-40A/B
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-MC-ASM-WDM-SM-40A/BVendor NameFIBERLAND
Data Rate10/100MWavelength1310/1550
Reach40kmForm TypeBIDI
Optical InterfaceSC/ST/FCDDM SupportIron
Commercial Temp.0~70℃Industrial Temp.N/A
Compatible BrandsEURO/UK/US/AUSComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references8 manufacturer part numbersAcross 3 brands
Showing 8 of 8 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
MC111CS-40TP-LINKFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.
MC112CS-40TP-LINKFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
TFC-110S40D3TRENDNETFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
TFC-110S40D5TRENDNETFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.
C2110-1029-B1LANTRONIXFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
C2110-1029-B2LANTRONIXFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.
C2210-1029-B1LANTRONIXFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
C2210-1029-B2LANTRONIXFLD-MC-ASM-WDM-SM-40A/B10/100BASE-TX to 100BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Does using compatible optics affect transmission distance?

Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.

Why are the DDM/DOM readings incorrect or abnormal?

Abnormal temperature, voltage, TX power, RX power, or bias-current readings may indicate an optical or hardware issue, but they can also result from incorrect calibration or communication between the compatible module and host device.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.

Can a transceiver be compatible with the switch but still fail to link?

Yes. Host compatibility and optical-link compatibility are separate issues. A module may be correctly recognized while the link fails because of fiber, wavelength, FEC, polarity, configuration, or link-budget problems.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
