10/100M Duplex Fiber Media Converter 1550nm 80km SC/ST/FC SMF | FLD-MC-ASM-DU-SM-80 | Fiberland

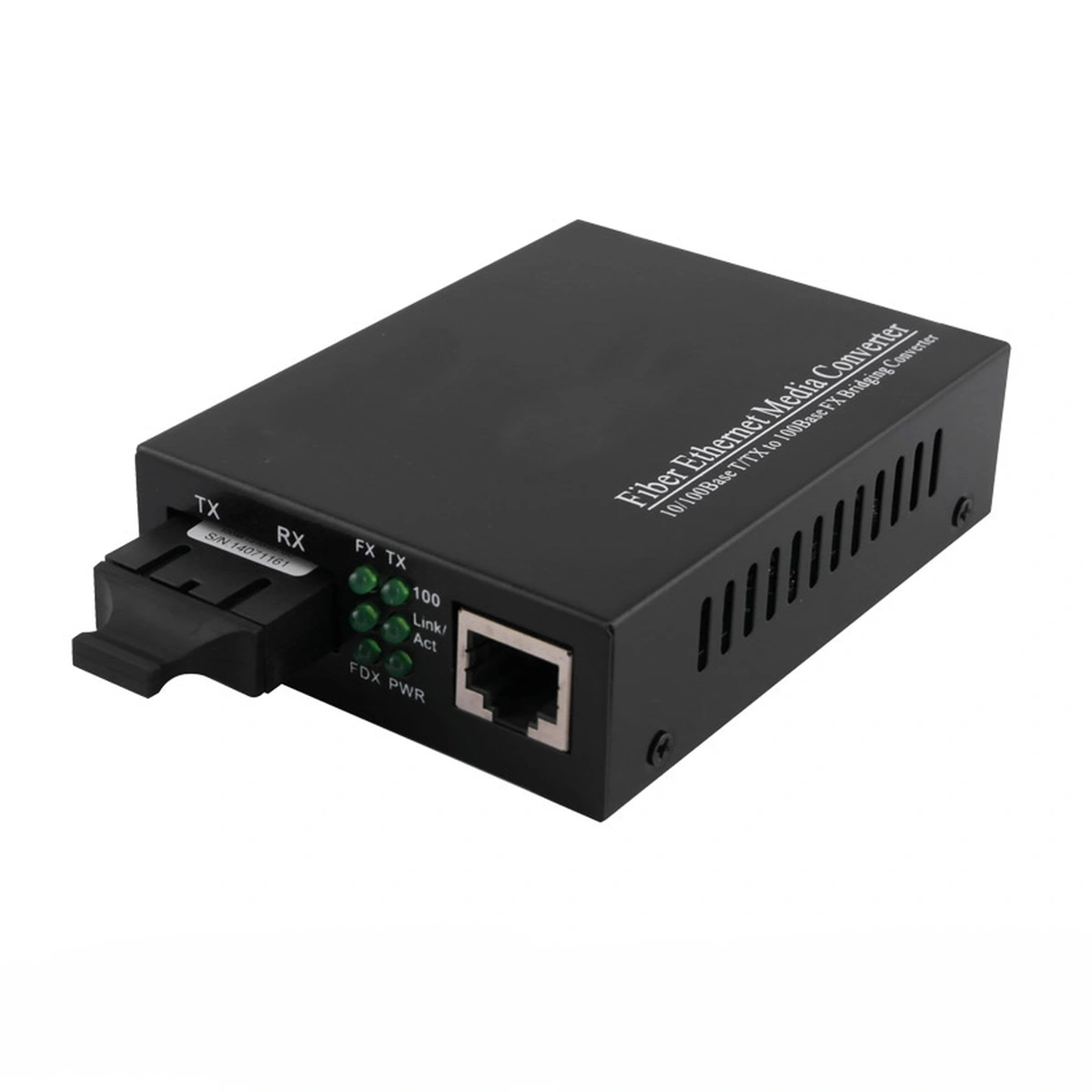

10/100M Duplex Fiber Media Converter 1550nm 80km SC/ST/FC SMF

Rate10/100MReach80kmWavelength1550InterfaceSC/ST/FC
Fiberland part number
FLD-MC-ASM-DU-SM-80
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeDuplex

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-MC-ASM-DU-SM-80Vendor NameFIBERLAND
Data Rate10/100MWavelength1550
Reach80kmForm TypeDuplex
Optical InterfaceSC/ST/FCDDM SupportIron
Commercial Temp.0~70℃Industrial Temp.N/A
Compatible BrandsEURO/UK/US/AUSComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references2 manufacturer part numbersAcross 1 brand
Showing 2 of 2 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
IMC-101-S-SC-80MOXAFLD-MC-ASM-DU-SM-80Industrial 10/100BASE-TX to 100BASE-FX media converter, 1550 nm duplex SC SMF, 80 km.
IMC-101-S-SC-80-TMOXAFLD-MC-ASM-DU-SM-80Industrial 10/100BASE-TX to 100BASE-FX media converter, 1550 nm duplex SC SMF, 80 km, extended temperature.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
