GPON TRANSCEIVER

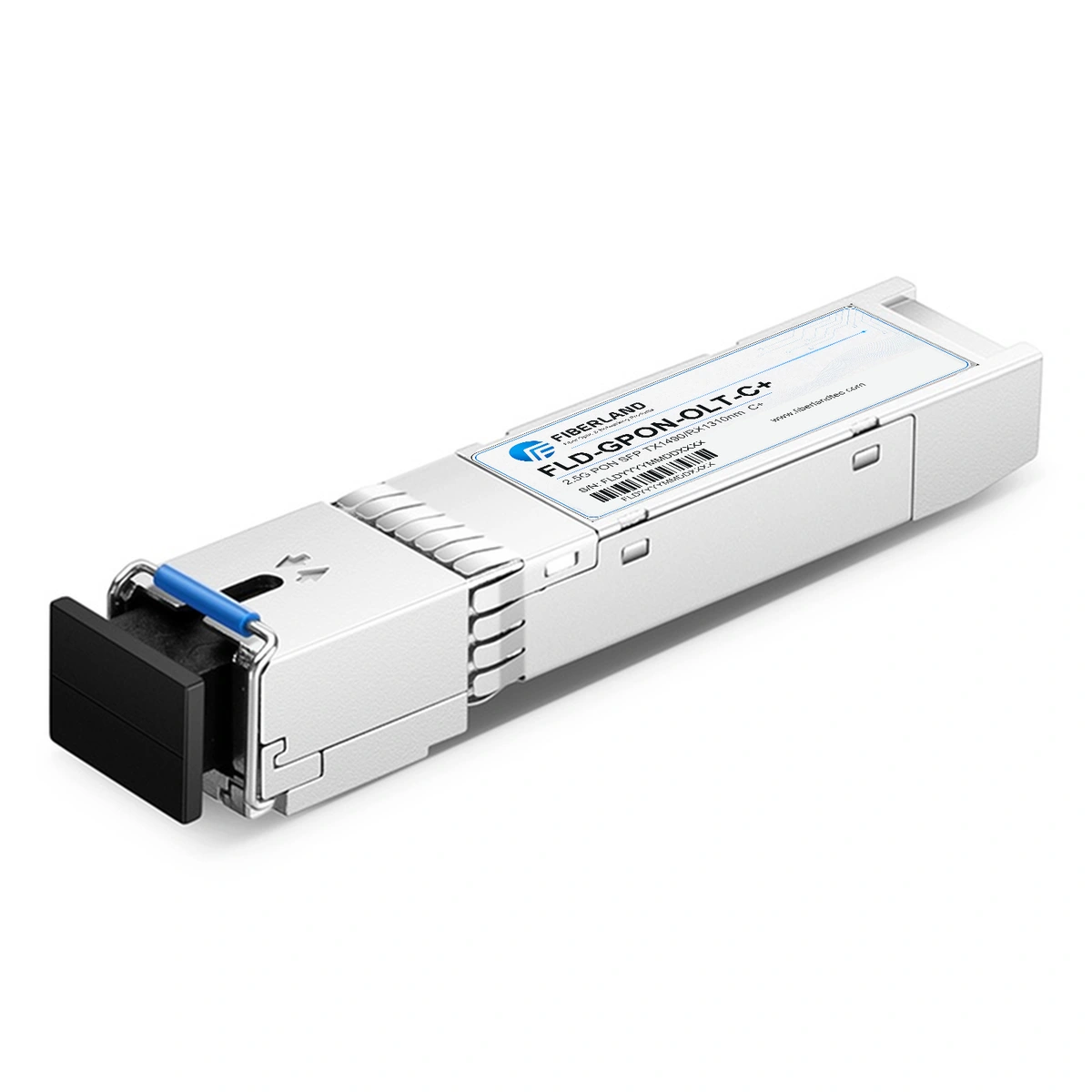

2.5G PON SFP TX1490/RX1310nm C+

Rate2.5/1.25GReach20kmWavelength1490/1310InterfaceSC
Fiberland part number
FLD-GPON-OLT-C+
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypePON TRANSCEIVER

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-GPON-OLT-C+Vendor NameFIBERLAND
Data Rate2.5/1.25GWavelength1490/1310
Reach20kmForm TypePON TRANSCEIVER
Optical InterfaceSCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references3 manufacturer part numbersAcross 2 brands
Showing 3 of 3 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-GPON-CCISCOFLD-GPON-OLT-C+GPON Class C+ OLT transceiver, 2.488 Gbps downstream and 1.244 Gbps upstream, 1490 nm TX/1310 nm RX, 20 km over single-mode fiber with an SC interface.
SFP-GPON-C-ICISCOFLD-GPON-OLT-C+GPON Class C+ OLT transceiver, 2.488 Gbps downstream and 1.244 Gbps upstream, 1490 nm TX/1310 nm RX, 20 km over single-mode fiber with an SC interface.
SFP-GPON-C+-D-SM1490H3CFLD-GPON-OLT-C+GPON Class C+ OLT transceiver, 2.488 Gbps downstream and 1.244 Gbps upstream, 1490 nm TX/1310 nm RX, 20 km over single-mode fiber with an SC interface.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.

Why does a high-speed compatible transceiver show FEC errors?

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.

How is a transceiver made compatible with a specific switch brand?

Compatibility is typically achieved through EEPROM programming, identification parameters, interface compliance, and platform-specific coding so that the host device can correctly recognize and communicate with the transceiver.

Does the OEM part number need to match exactly?

The exact OEM reference is useful for identifying compatibility, but the optical specifications and host-platform requirements must also match the intended application.
