100G CFP2

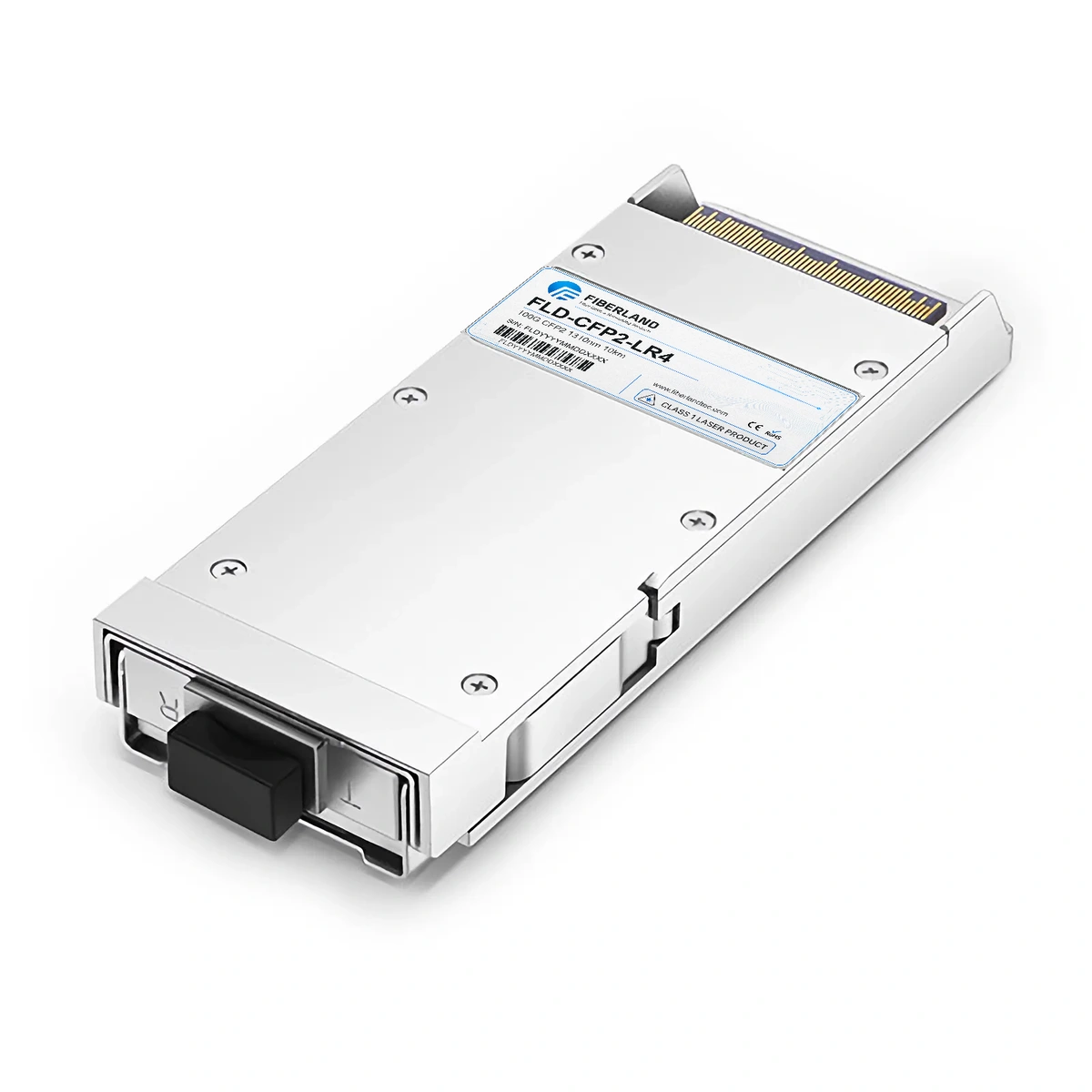

100G CFP2 1310nm 10km

Rate100GReach10kmWavelength1310InterfaceLC
Fiberland part number
FLD-CFP2-LR4
Unit price850.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeCFP2

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-CFP2-LR4Vendor NameFIBERLAND
Data Rate100GWavelength1310
Reach10kmForm TypeCFP2
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references7 manufacturer part numbersAcross 3 brands
Showing 7 of 7 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SO-CFP2-LR4SMARTOPTICSFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
CFP2-100GBASE-LR4JUNIPERFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
740-052504JUNIPERFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
CFP2-100G-LR4-DJUNIPERFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
740-049775JUNIPERFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
100G-CFP2-LR4-10KMBROCADEFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.
57-1000326-01BROCADEFLD-CFP2-LR4100GBASE-LR4 CFP2 transceiver, LAN-WDM 1310 nm band, 10 km over duplex single-mode fiber, LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why is EEPROM programming important for compatibility?

Network equipment may inspect the module's EEPROM information before allowing normal operation. Correct programming helps the host identify and manage the transceiver properly.

What does an “unsupported transceiver” message mean?

It usually means the host device does not recognize or approve the identification information stored in the module. It does not necessarily indicate an optical failure.

Will a compatible transceiver be recognized by my switch?

A correctly coded compatible transceiver should be recognized by the supported switch or router platform. Compatibility can depend on the device model, operating system, firmware version, and port configuration.

Why is there no TX optical power from the compatible transceiver?

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
