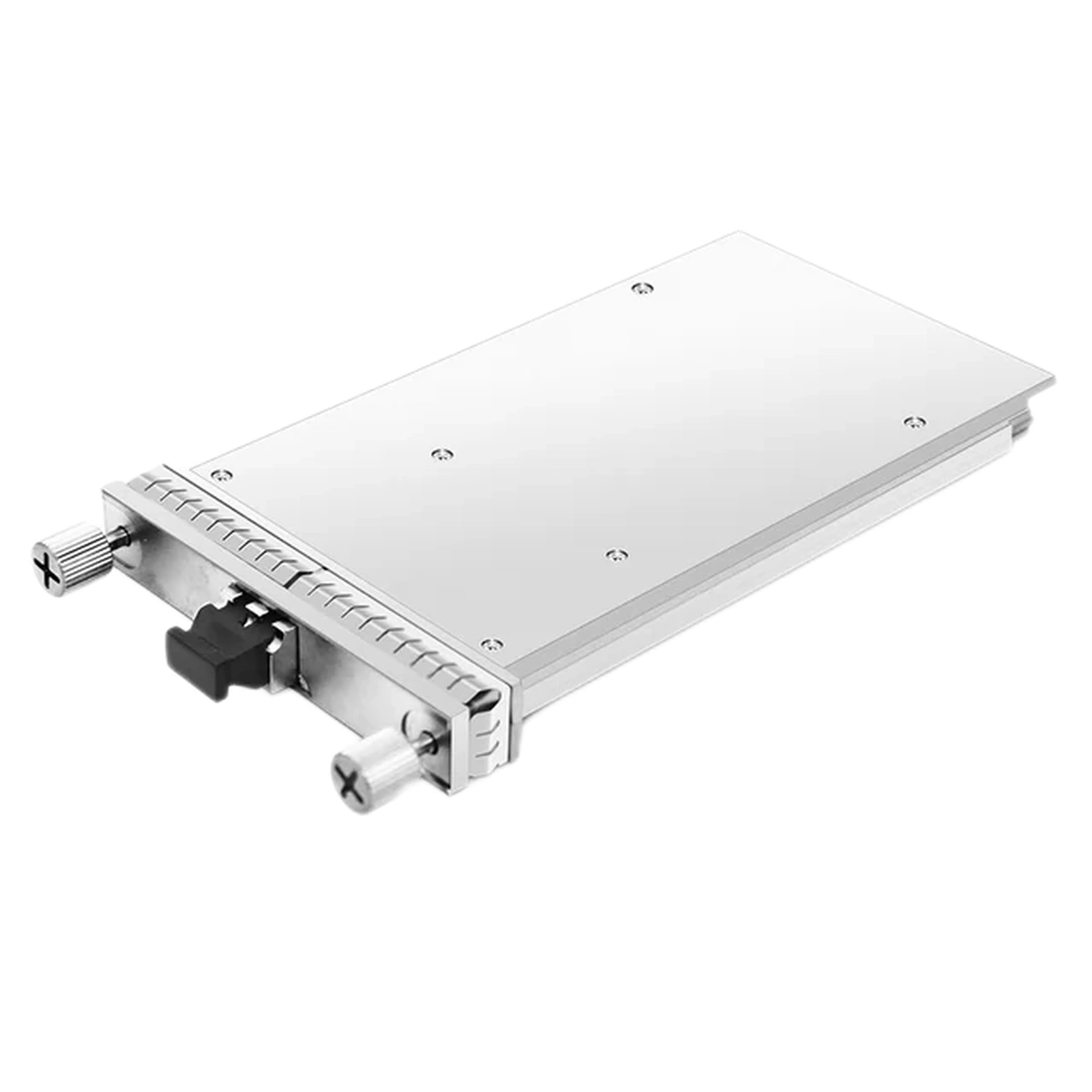

100G CFP ER4 Fiber Optic Transceiver Module 1310nm 40km LC SMF DDM | FLD-CFP-ER4 | Fiberland

100G CFP 1310nm 40km

Rate100GReach40kmWavelength1310InterfaceLC
Fiberland part number
FLD-CFP-ER4
Unit price2,900.00USD / piece

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeCFP

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-CFP-ER4Vendor NameFIBERLAND
Data Rate100GWavelength1310
Reach40kmForm TypeCFP
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references5 manufacturer part numbersAcross 2 brands
Showing 5 of 5 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SO-CFP-ER4SMARTOPTICSFLD-CFP-ER4100GBASE-ER4 CFP transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
CFP-100GBASE-ER4JUNIPERFLD-CFP-ER4100GBASE-ER4 CFP transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
740-045420JUNIPERFLD-CFP-ER4100GBASE-ER4 CFP transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
CFP-GEN2-CGE-ER4JUNIPERFLD-CFP-ER4100GBASE-ER4 CFP transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.
740-049763JUNIPERFLD-CFP-ER4100GBASE-ER4 CFP transceiver, LAN-WDM 1310 nm band, 40 km over duplex single-mode fiber, LC, with digital diagnostics.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why is the transceiver recognized but DDM/DOM information is missing?

The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.

Why does the switch detect the transceiver but report an incorrect module type?

This can occur when the EEPROM compatibility profile does not match the intended interface or when the host interprets the programmed identification differently. Verify the module coding and corresponding OEM reference.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.

Why does a high-speed compatible transceiver show FEC errors?

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.
