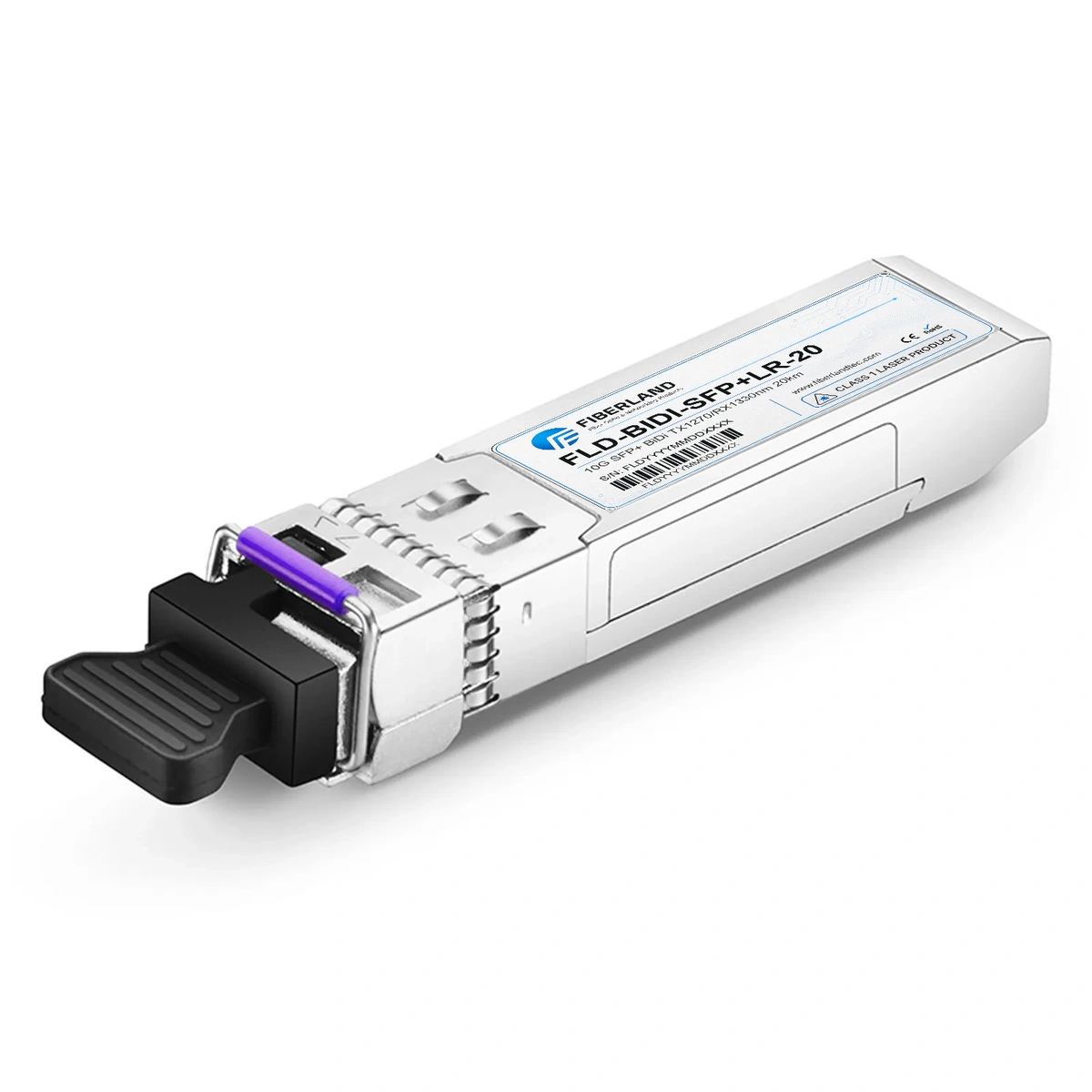

10G BIDI SFP+

10G SFP+ BiDi TX1270/RX1330nm 20km

Rate10GReach20kmWavelength1270/1330InterfaceBIDI LC
Fiberland part number
FLD-BIDI-SFP+LR-20
Unit price15.00USD / piece

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI SFP+

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-BIDI-SFP+LR-20Vendor NameFIBERLAND
Data Rate10GWavelength1270/1330
Reach20kmForm TypeBIDI SFP+
Optical InterfaceBIDI LCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 3 brands
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
MTB-LA20PLANETFLD-BIDI-SFP+LR-2010GBASE-BX SFP+ transceiver, TX 1270 nm/RX 1330 nm, 20 km over one strand of single-mode fiber, simplex LC.
MTB-TLA20PLANETFLD-BIDI-SFP+LR-2010GBASE-BX SFP+ transceiver, TX 1270 nm/RX 1330 nm, 20 km over one strand of single-mode fiber, simplex LC.
TN-SFP-10G-U-20TRANSITION NETWORKSFLD-BIDI-SFP+LR-2010GBASE-BX SFP+ transceiver, TX 1270 nm/RX 1330 nm, 20 km over one strand of single-mode fiber, simplex LC.
AT-SP10BD20-12ALLIED TELESISFLD-BIDI-SFP+LR-2010GBASE-BX SFP+ transceiver, TX 1270 nm/RX 1330 nm, 20 km over one strand of single-mode fiber, simplex LC.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Is the optical power of a compatible transceiver different from the OEM version?

A compatible replacement should meet the applicable transmit-power and receiver-sensitivity specifications for the interface it is designed to support.

Why does my compatible transceiver keep losing and restoring the link?

Intermittent links can be caused by marginal optical power, dirty connectors, unstable fiber connections, FEC mismatches, port configuration, temperature, or compatibility issues. Check both the optical link and host-side configuration.

What is EEPROM coding in an optical transceiver?

EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.

How should I troubleshoot a transceiver that is recognized but has no optical link?

Check transmit and receive power, fiber polarity, connector cleanliness, wavelength, fiber type, link distance, FEC configuration, port speed, and the specifications of the transceiver at the opposite end.

How is a transceiver made compatible with a specific switch brand?

Compatibility is typically achieved through EEPROM programming, identification parameters, interface compliance, and platform-specific coding so that the host device can correctly recognize and communicate with the transceiver.
