800G QSFP-DD COHERENT

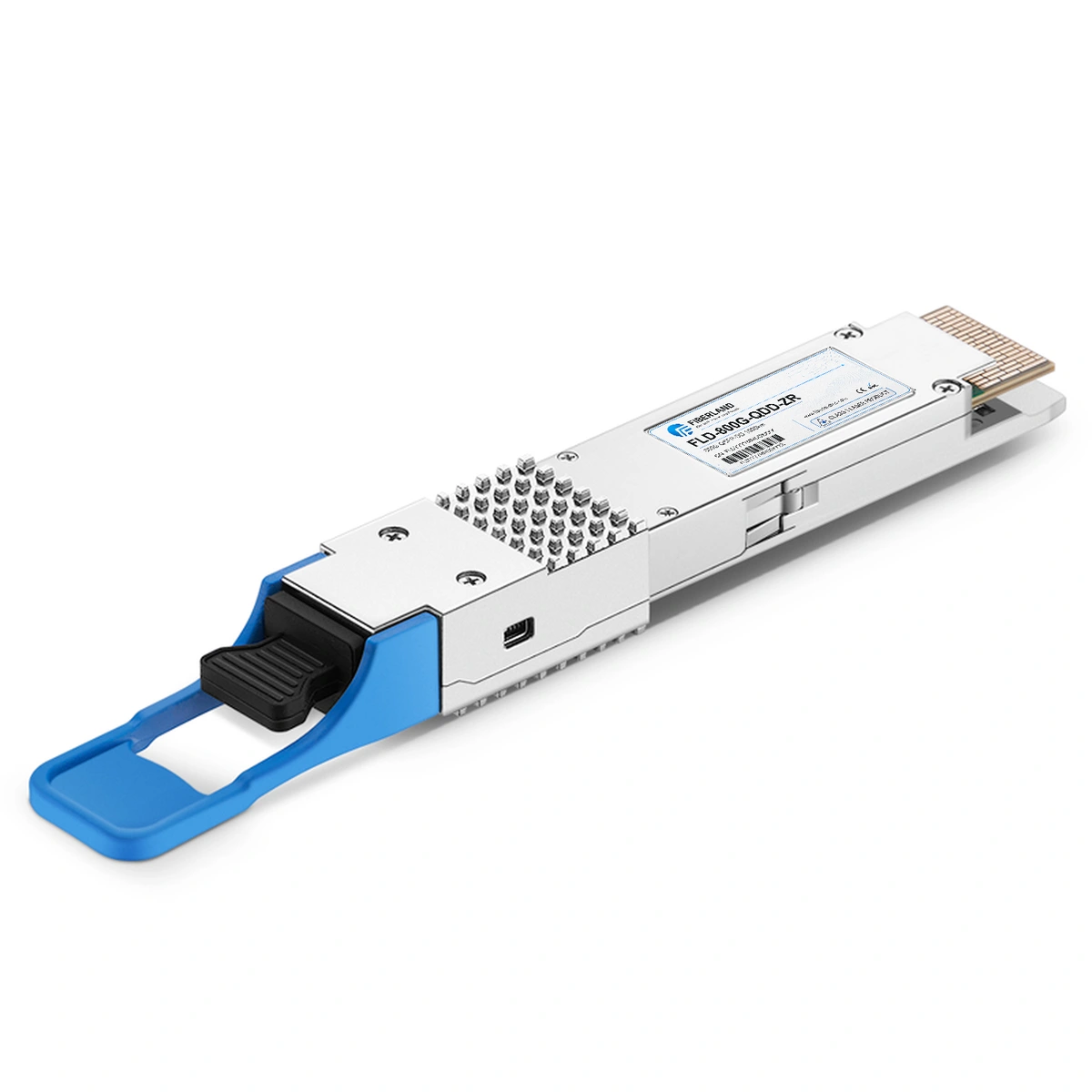

800G Coherent QSFP-DD ZR Fiber Optic Transceiver Module Tunable 120–1000km LC SMF DDM | FLD-800G-QDD-ZR | Fiberland

800G QSFP-DD 1000km

Rate800GCommon selectable lengths120km / 160km / 200km / 1000kmWavelengthTunableInterfaceLC
Fiberland part number
FLD-800G-QDD-ZR
Unit price13,500.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP-DD

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-800G-QDD-ZRVendor NameFIBERLAND
Data Rate800GWavelengthTunable
Common selectable lengths120km / 160km / 200km / 1000kmForm TypeQSFP-DD
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references2 manufacturer part numbersAcross 2 brands
Showing 2 of 2 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
DP08QSDD-ZRA-A2CISCOFLD-800G-QDD-ZR800G ZR QSFP-DD digital coherent transceiver, C-band tunable, duplex LC, up to 120 km over amplified DWDM.
FTCE3316E1PCLCOHERENT / FINISARFLD-800G-QDD-ZR800G ZR QSFP-DD digital coherent transceiver, C-band tunable, duplex LC, 1000 km, over single-mode fiber.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
