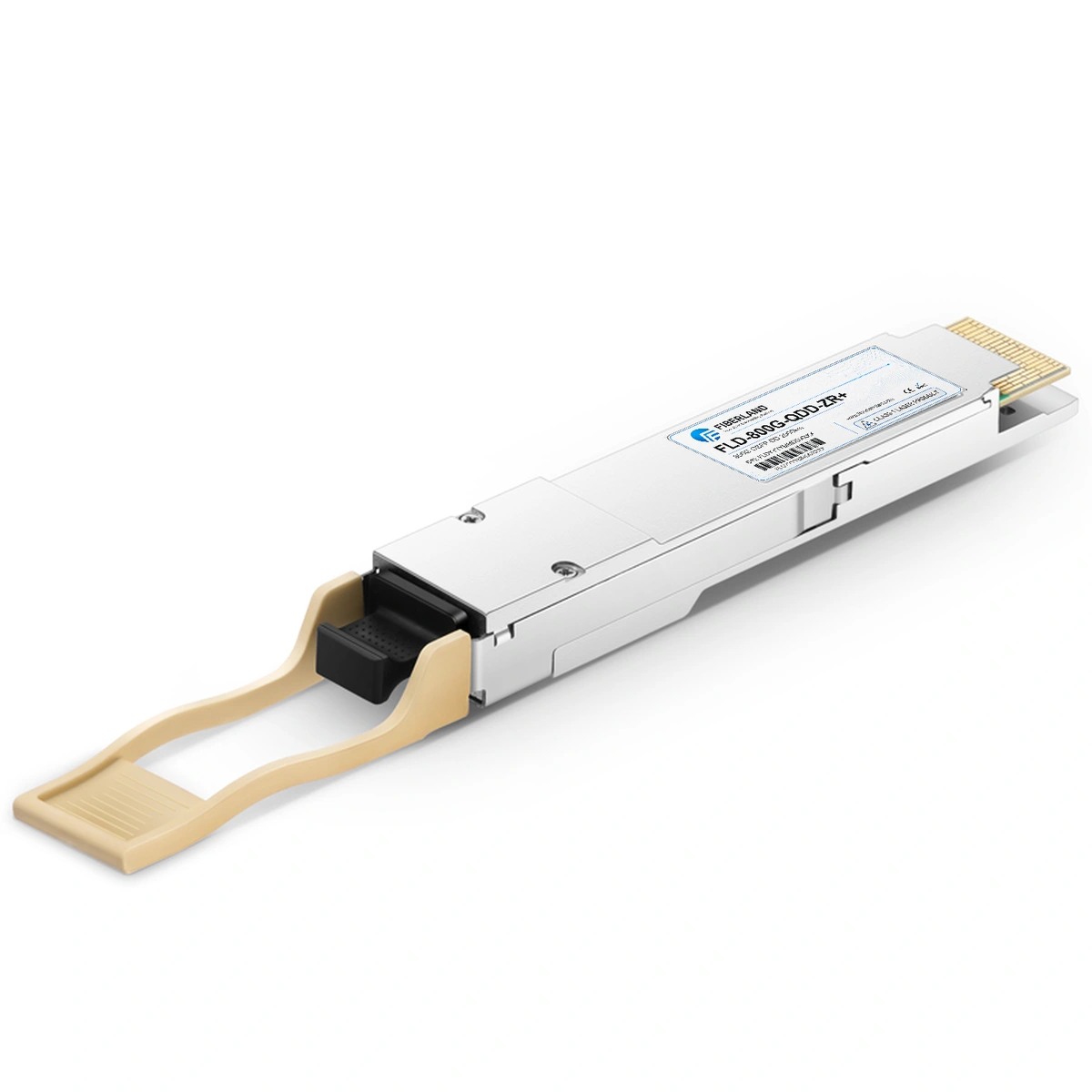

800G Coherent QSFP-DD ZR+ Fiber Optic Transceiver Module Tunable 480–2000km LC SMF DDM | FLD-800G-QDD-ZR+ | Fiberland

800G QSFP-DD 2000km

Rate800GCommon selectable lengths480km / 2000kmWavelengthTunableInterfaceLC
Fiberland part number
FLD-800G-QDD-ZR+
Unit price18,745.00USD / piece

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP-DD

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-800G-QDD-ZR+Vendor NameFIBERLAND
Data Rate800GWavelengthTunable
Common selectable lengths480km / 2000kmForm TypeQSFP-DD
Optical InterfaceLCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 2 brands
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
DP08QSDD-ZRB-A2CISCOFLD-800G-QDD-ZR+800G ZR+ QSFP-DD digital coherent transceiver, C-band tunable, duplex LC, over 1000 km over amplified DWDM.
DP08QSDD-LRB-A2CISCOFLD-800G-QDD-ZR+800G ZR+ QSFP-DD digital coherent transceiver, L-band tunable, duplex LC, over 1000 km over amplified DWDM.
FTCE3326R1PCLCOHERENT / FINISARFLD-800G-QDD-ZR+800G ZR+ QSFP-DD digital coherent transceiver, C-band tunable, duplex LC, 750 km, over single-mode fiber.
FTCE3L26R1PCLCOHERENT / FINISARFLD-800G-QDD-ZR+800G ZR+ QSFP-DD digital coherent transceiver, L-band tunable, duplex LC, 750 km, over single-mode fiber.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
