1.6T OSFP DAC

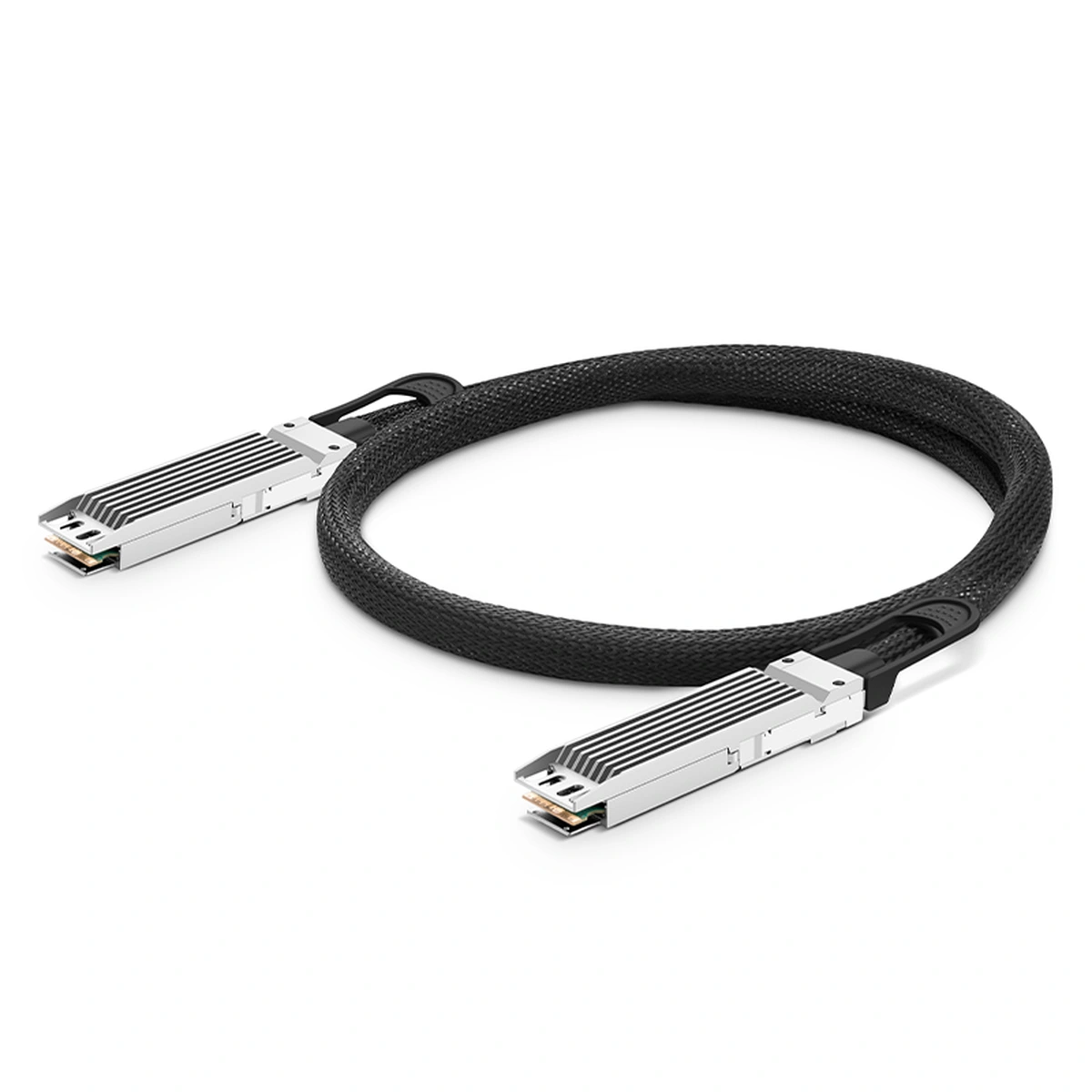

1.6T OSFP TO OSFP DAC 1m

Rate1.6TReach1mWavelength-Interface-
Fiberland part number
FLD-1.6T-OSFP-DAC-1
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeOSFP ~ OSFP

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-1.6T-OSFP-DAC-1Vendor NameFIBERLAND
Data Rate1.6TWavelength-
Reach1mForm TypeOSFP ~ OSFP
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references3 manufacturer part numbersAcross 1 brand
Showing 3 of 3 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
C-O1T6-O1T6-1MARISTAFLD-1.6T-OSFP-DAC-11600GBASE-CR8 OSFP IHS to OSFP IHS passive twinax direct-attach copper cable, 1 m.
C-R1T6-R1T6-1MARISTAFLD-1.6T-OSFP-DAC-11600GBASE-CR8 OSFP RHS to OSFP RHS passive twinax direct-attach copper cable, 1 m.
C-O1T6-R1T6-1MARISTAFLD-1.6T-OSFP-DAC-11600GBASE-CR8 OSFP IHS to OSFP RHS passive twinax direct-attach copper cable, 1 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
