1.6T OSFP DAC

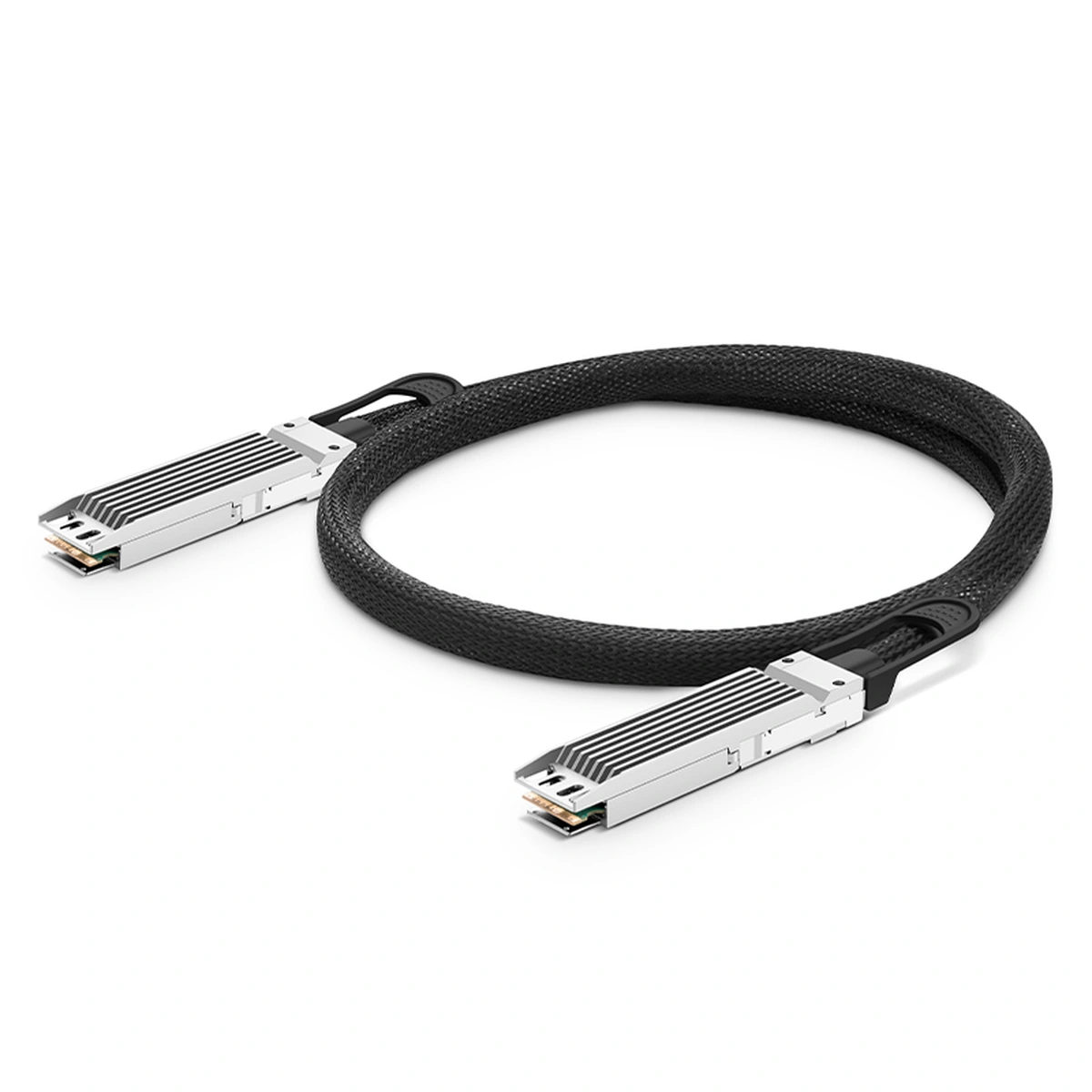

1.6T OSFP TO OSFP DAC 0.5M

Rate1.6TReach0.5mWavelength-Interface-
Fiberland part number
FLD-1.6T-OSFP-DAC-0.5
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeOSFP ~ OSFP

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-1.6T-OSFP-DAC-0.5Vendor NameFIBERLAND
Data Rate1.6TWavelength-
Reach0.5mForm TypeOSFP ~ OSFP
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references3 manufacturer part numbersAcross 1 brand
Showing 3 of 3 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
C-O1T6-O1T6-0.5MARISTAFLD-1.6T-OSFP-DAC-0.51600GBASE-CR8 OSFP IHS to OSFP IHS passive twinax direct-attach copper cable, 0.5 m.
C-R1T6-R1T6-0.5MARISTAFLD-1.6T-OSFP-DAC-0.51600GBASE-CR8 OSFP RHS to OSFP RHS passive twinax direct-attach copper cable, 0.5 m.
C-O1T6-R1T6-0.5MARISTAFLD-1.6T-OSFP-DAC-0.51600GBASE-CR8 OSFP IHS to OSFP RHS passive twinax direct-attach copper cable, 0.5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Do compatible transceivers support hot swapping?

Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.

Why does the switch detect the transceiver but report an incorrect module type?

This can occur when the EEPROM compatibility profile does not match the intended interface or when the host interprets the programmed identification differently. Verify the module coding and corresponding OEM reference.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

What is EEPROM coding in an optical transceiver?

EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.

Are compatible transceivers suitable for data centers?

Yes. Compatible optical modules are widely used for server, switch, storage, and data-center interconnect applications when the correct interface and compatibility requirements are met.
