10G XENPAK

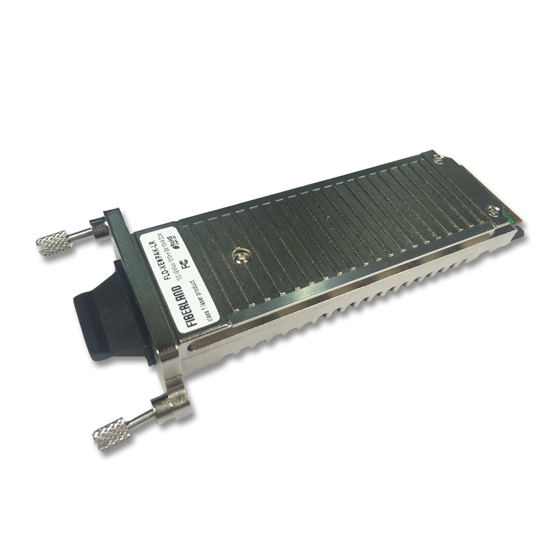

10G XENPAK LR Fiber Optic Transceiver Module 1310nm 10km Duplex SC SMF DDM | FLD-XENPAK-LR | Fiberland

Rate10GReach10kmWavelength1310InterfaceDUPLEX SC
Fiberland part number
FLD-XENPAK-LR
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeXENPAK

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-XENPAK-LRVendor NameFIBERLAND
Data Rate10GWavelength1310
Reach10kmForm TypeXENPAK
Optical InterfaceDUPLEX SCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references4 manufacturer part numbersAcross 3 brands
Showing 4 of 4 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
XENPAK-10GB-LRCISCOFLD-XENPAK-LR10GBASE-LR XENPAK transceiver, 1310 nm, 10 km over G.652 SMF, duplex SC.
XENPAK-10GB-LR+CISCOFLD-XENPAK-LR10GBASE-LR XENPAK transceiver, 1310 nm, 10 km over G.652 SMF, duplex SC. Digital optical monitoring supported.
XENPAK-1XGE-LRJUNIPERFLD-XENPAK-LR10GBASE-LR XENPAK transceiver, 1310 nm, 10 km over 9/125 µm SMF, duplex SC PC/UPC, with monitoring support.
10111EXTREME NETWORKSFLD-XENPAK-LR10GBASE-LR XENPAK transceiver, 1310 nm, 10 km over single-mode fiber, SC connector.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

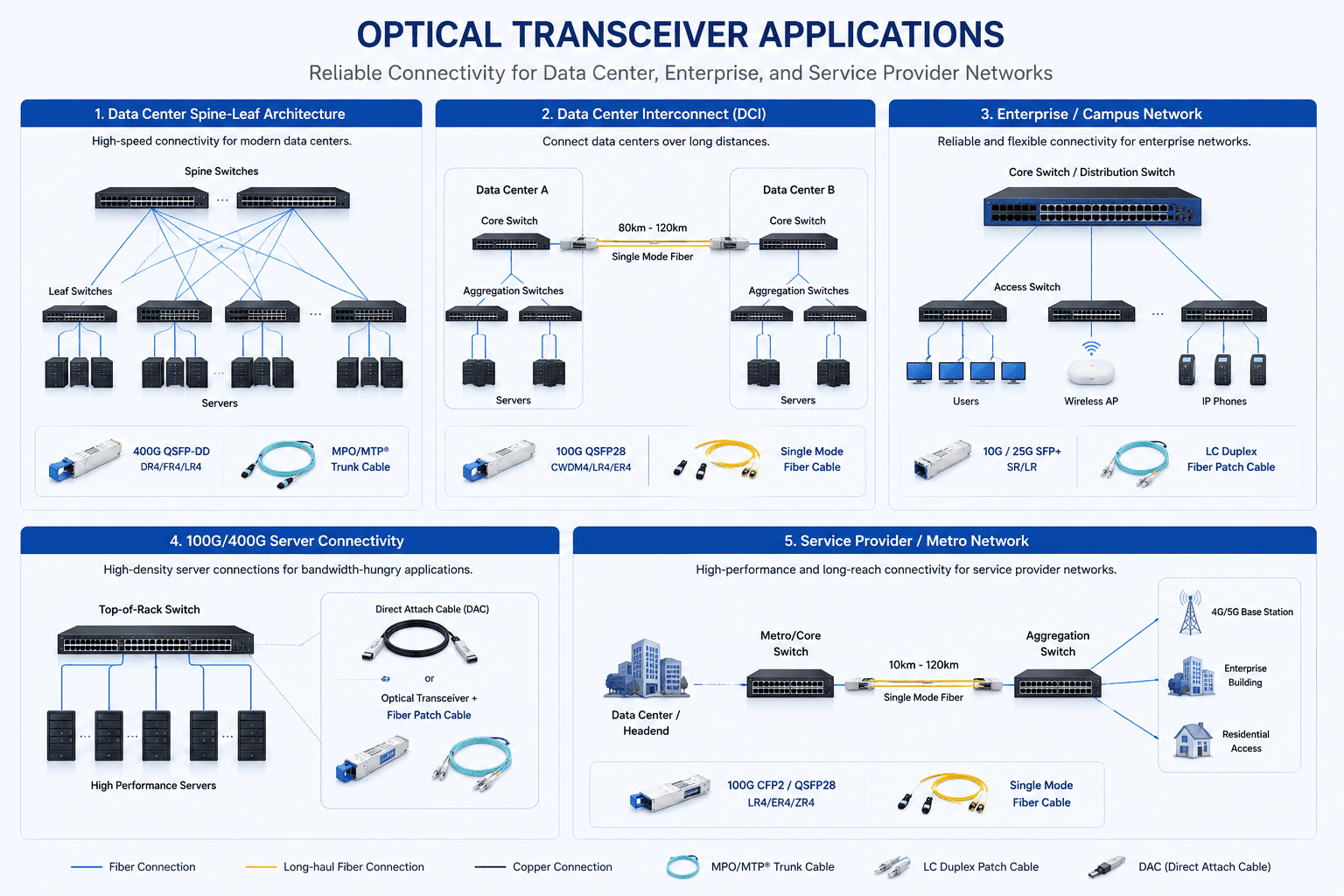

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

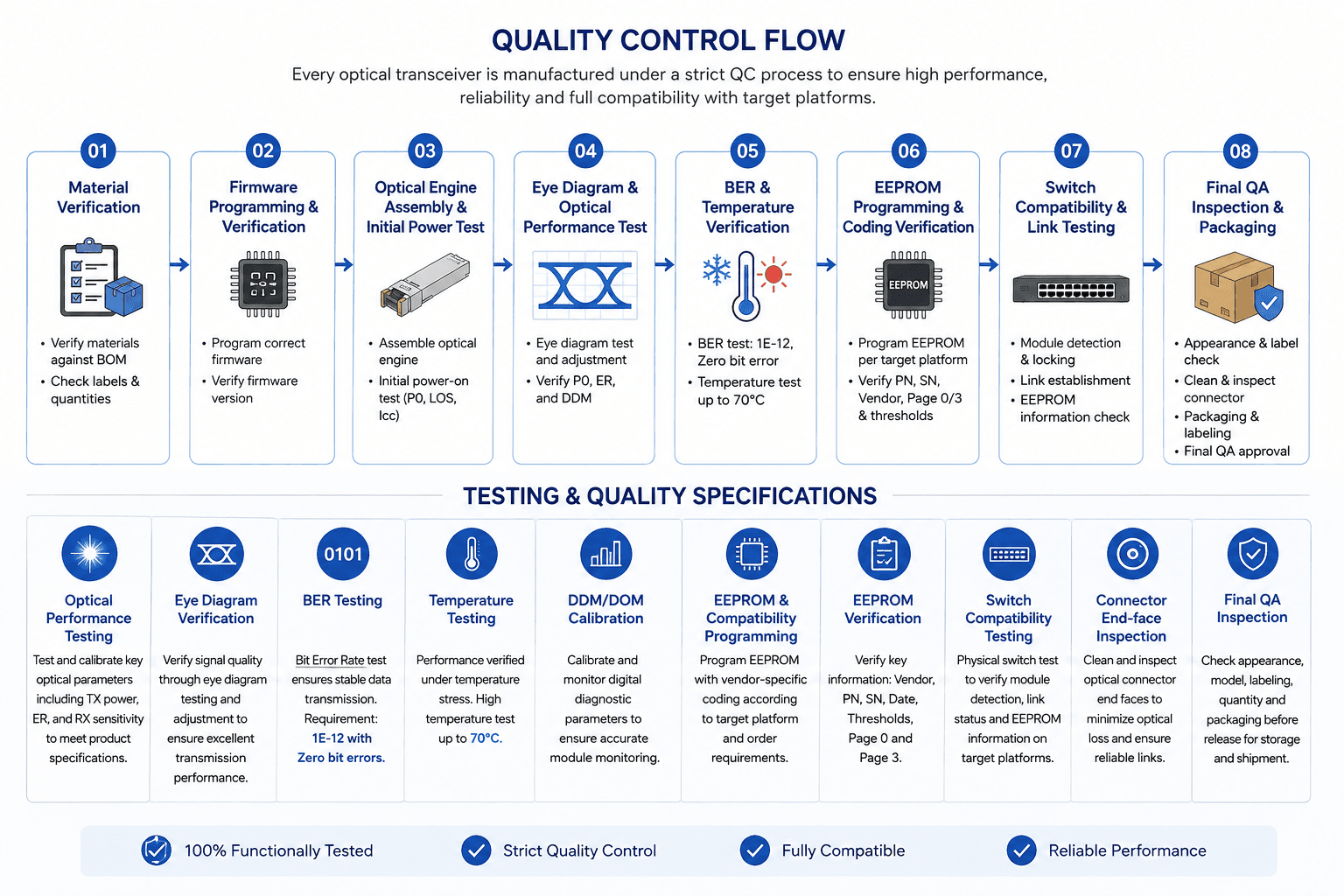

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Do compatible transceivers support hot swapping?

Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.

What switch information should I provide when requesting a compatible transceiver?

Providing the switch or router brand, exact model, port speed, operating-system version, and required OEM transceiver part number helps identify the correct compatibility profile.

Is FEC important when using high-speed compatible transceivers?

Yes. Forward Error Correction is an important consideration for many 25G, 50G, 100G, 200G, 400G, and 800G interfaces. Both ends of the link must use compatible FEC and interface settings.

Is the optical power of a compatible transceiver different from the OEM version?

A compatible replacement should meet the applicable transmit-power and receiver-sensitivity specifications for the interface it is designed to support.

Can different transceiver brands be used at opposite ends of a fiber link?

Yes. The transceivers do not normally need to be from the same manufacturer. Their Ethernet standard, wavelength, fiber type, lane configuration, reach, and other link requirements must be compatible.
