1G BIDI SFP

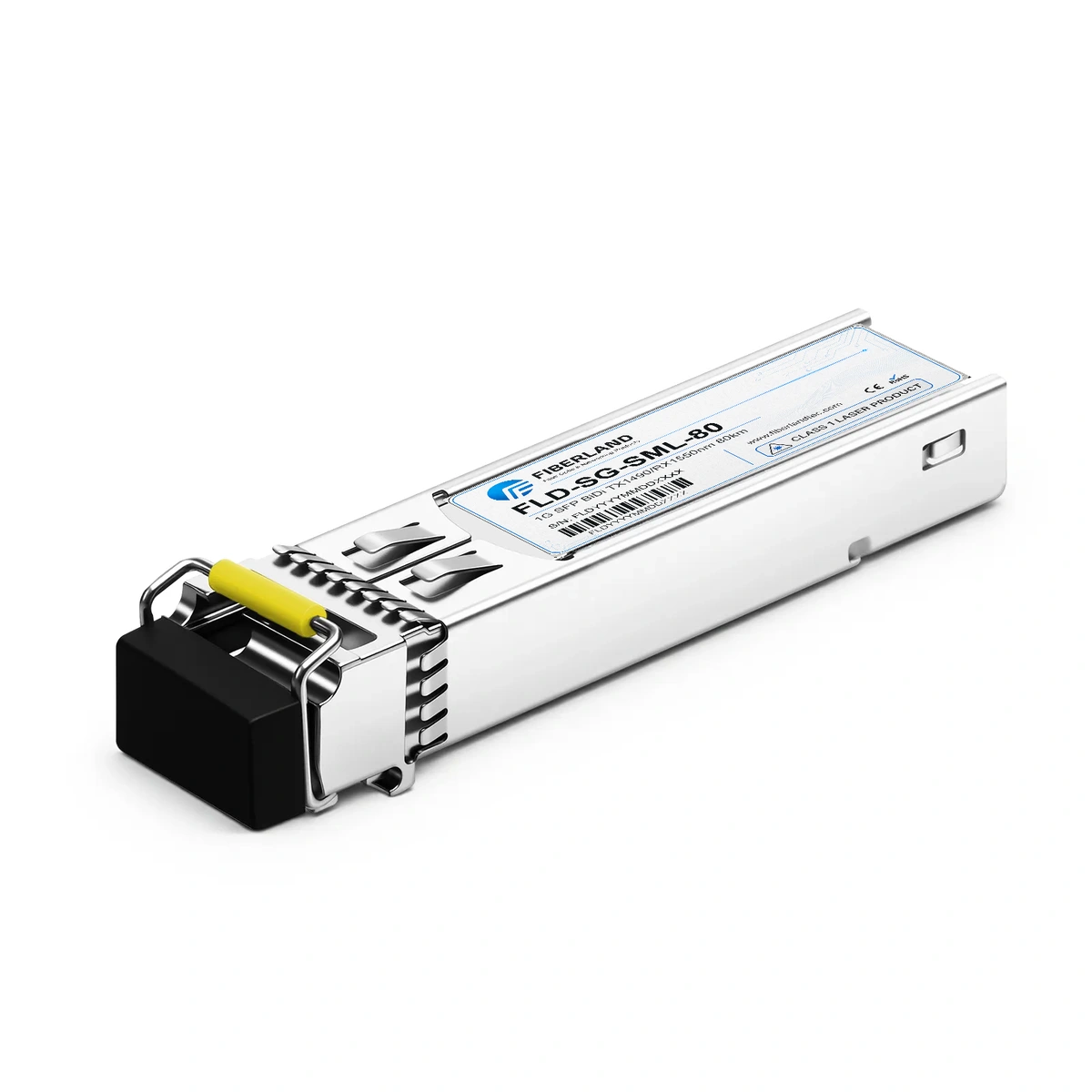

1G BiDi SFP Fiber Optic Transceiver Module TX1490/RX1550nm 80km Simplex LC/SC SMF DDM | FLD-SG-SML-80 | Fiberland

1G SFP BiDi TX1490/RX1550nm 80km

Rate1GReach80kmWavelength1490/1550InterfaceBIDI LC/SC
Fiberland part number
FLD-SG-SML-80
Unit price19.00USD / piece
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI SFP

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SG-SML-80Vendor NameFIBERLAND
Data Rate1GWavelength1490/1550
Reach80kmForm TypeBIDI SFP
Optical InterfaceBIDI LC/SCDDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-40~85℃
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references2 manufacturer part numbersAcross 1 brand
Showing 2 of 2 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
MGB-LA80PLANETFLD-SG-SML-80PLANET 1000BASE-BX SFP transceiver, TX 1490 nm/RX 1550 nm, 80 km over single-mode fiber, simplex LC/UPC, with DDM.
MGB-TLA80PLANETFLD-SG-SML-80PLANET industrial 1000BASE-BX SFP transceiver, TX 1490 nm/RX 1550 nm, 80 km over single-mode fiber, simplex LC/UPC, with DDM.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why is the transceiver recognized but DDM/DOM information is missing?

The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.

Do both ends of an optical link need the same OEM compatibility?

No. Each transceiver generally needs to be compatible with the equipment in which it is installed. For example, one end may be coded for one switch brand and the other end for another.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

Can compatible transceivers be used with existing fiber cabling?

Yes, provided the module's fiber requirements match the installed cabling, including single-mode or multimode fiber, connector type, wavelength, and supported transmission distance.

Will DOM values appear correctly on third-party transceivers?

With a properly compatible module and supported host platform, DOM/DDM values should normally be accessible through the network equipment's management interface.
