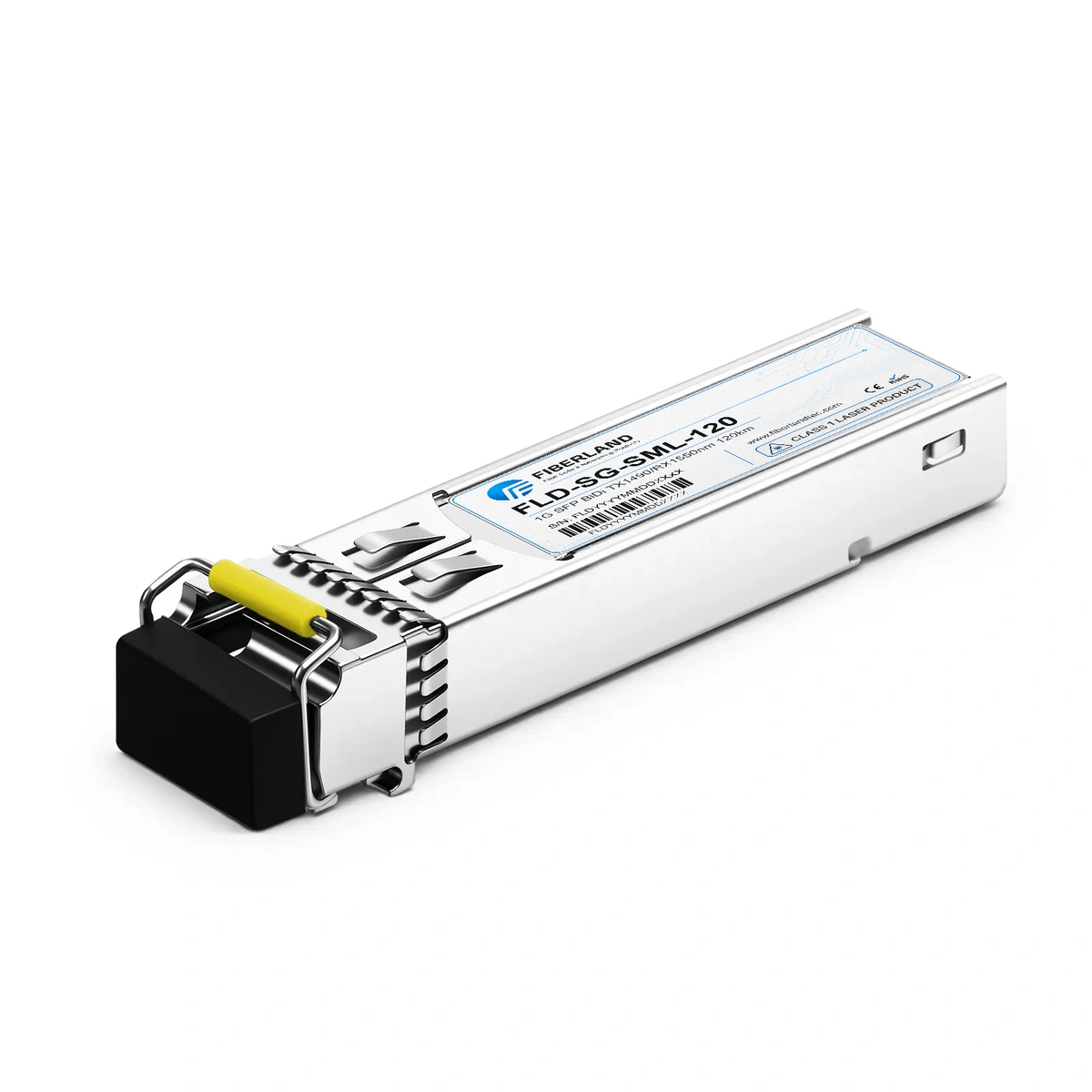

| Fiberland Part Number | FLD-SG-SML-120 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 1G | Wavelength | 1490/1550 |
| Reach | 120km | Form Type | BIDI SFP |
| Optical Interface | BIDI LC/SC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Swipe horizontally to view every field.
| Original part number | Brand | Fiberland part number | Product description |
|---|---|---|---|
| MGB-TLA120 | PLANET | FLD-SG-SML-120 | PLANET industrial 1000BASE-EZX SFP transceiver, TX 1490 nm/RX 1550 nm, 120 km over single-mode fiber, simplex LC/UPC, with DDM. |
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
With a properly compatible module and supported host platform, DOM/DDM values should normally be accessible through the network equipment's management interface.
Each transceiver must be compatible with its own host device. In a mixed-vendor link, one end may be correctly coded while the transceiver at the opposite end is not fully compatible with its switch or router.
Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.
Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.
Check the network-device manufacturer and model, port type, required data rate, OEM transceiver reference if available, wavelength, reach, connector, fiber type, and software or firmware version when relevant.
