10G SFP+ DAC

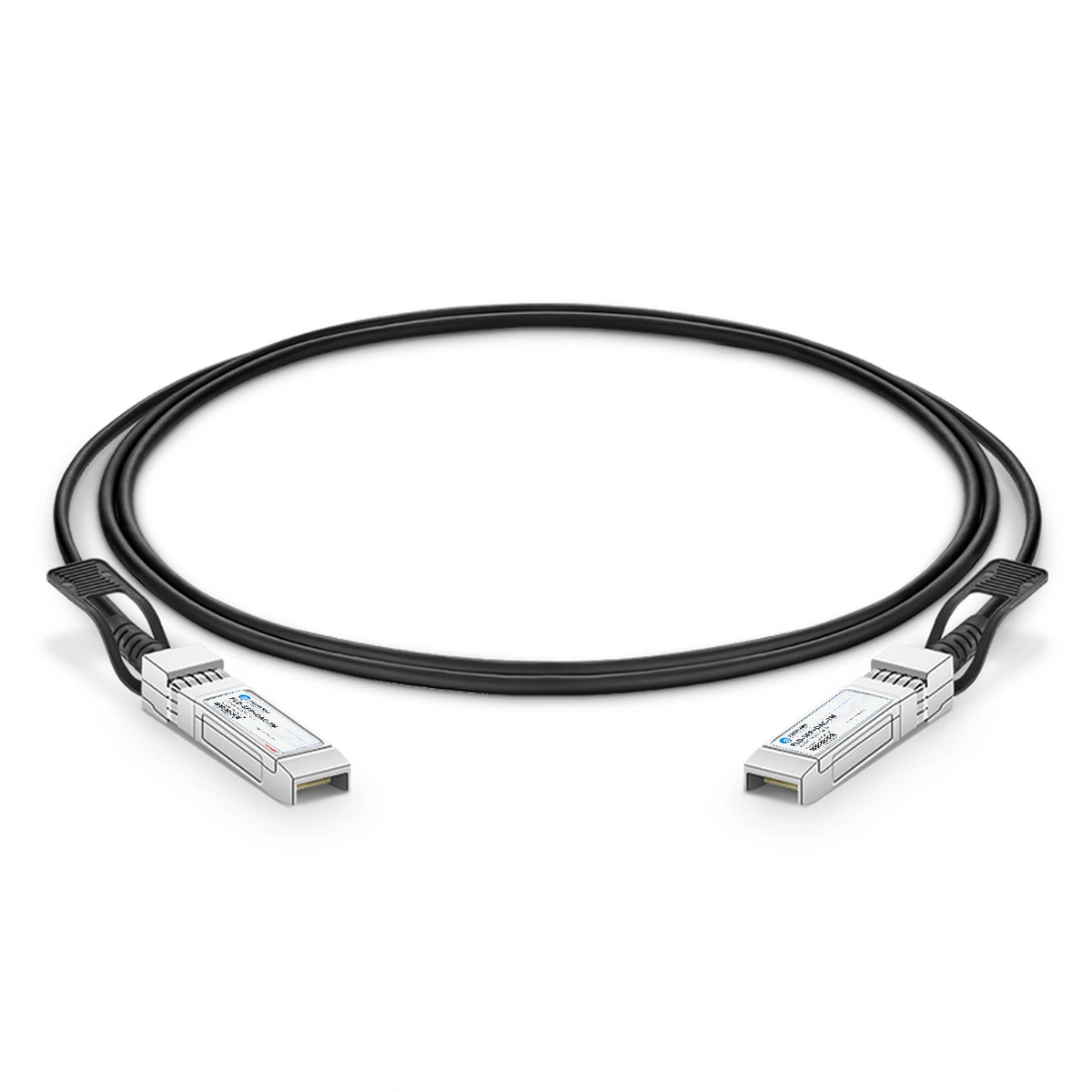

10G SFP+ TO SFP+ DAC 7m

Rate10GReach7mWavelength-Interface-
Fiberland part number
FLD-SFP+DAC-7M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP+

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SFP+DAC-7MVendor NameFIBERLAND
Data Rate10GWavelength-
Reach7mForm TypeSFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references8 manufacturer part numbersAcross 6 brands
Showing 8 of 8 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
SFP-H10GB-ACU7MCISCOFLD-SFP+DAC-7M10G SFP+ to SFP+ active 30 awg twinax cable assembly, 7 m.
EX-SFP-10GE-DAC-7MJUNIPERFLD-SFP+DAC-7M10G SFP+ to SFP+ passive twinax direct-attach cable, 7 m.
QFX-SFP-DAC-7MAJUNIPERFLD-SFP+DAC-7M10G SFP+ to SFP+ active twinax direct-attach cable, 7 m.
MC3309124-007NVIDIAFLD-SFP+DAC-7M10G SFP+ to SFP+ passive copper direct-attach cable, 7 m.
J9285BHPFLD-SFP+DAC-7M10G SFP+ to SFP+ passive direct-attach copper cable, 7 m.
J9285DHPFLD-SFP+DAC-7M10G SFP+ to SFP+ passive direct-attach copper cable, 7 m.
G840NDELLFLD-SFP+DAC-7M10G SFP+ to SFP+ active direct-attach copper cable, 7 m.
59Y1944IBMFLD-SFP+DAC-7M10G SFP+ to SFP+ passive molex dac, 7 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

How do I choose the correct compatible optical transceiver?

Start with the host equipment and port requirements, then match the data rate, form factor, wavelength, reach, connector, fiber type, optical standard, and OEM compatibility. For high-speed interfaces, also verify FEC and other platform-specific requirements.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

Can OEM and compatible transceivers be used in the same switch?

In many networks, OEM and compatible transceivers are deployed in different ports of the same device. Each module should meet the requirements of its individual interface.

What is the difference between equipment compatibility and optical compatibility?

Equipment compatibility determines whether the host device recognizes and operates with the module. Optical compatibility determines whether the two ends of the fiber link can communicate correctly. A successful deployment requires both.

How can I tell whether the problem is compatibility-related or an optical-link problem?

Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.
