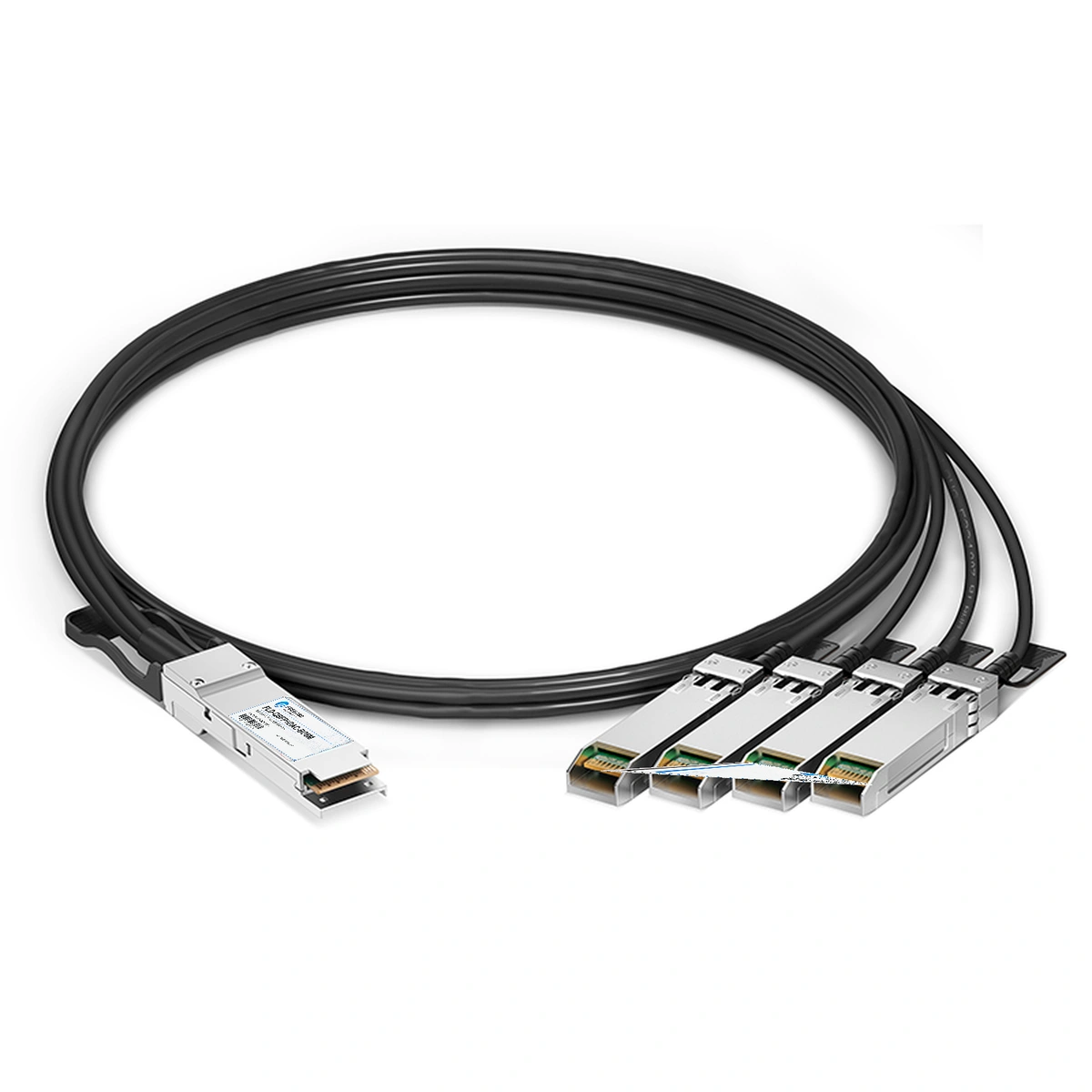

40G QSFP+ BREAKOUT DAC

40G to 10G QSFP+ to SFP+ Breakout Direct Attach Copper Cable 5m | FLD-QSFP+DAC-BO5M | Fiberland

40G QSFP+ TO 4X10G SFP+ 5m

Rate40G ~10GReach5mWavelength-Interface-
Fiberland part number
FLD-QSFP+DAC-BO5M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP+ - SFP+

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP+DAC-BO5MVendor NameFIBERLAND
Data Rate40G ~10GWavelength-
Reach5mForm TypeQSFP+ - SFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references10 manufacturer part numbersAcross 7 brands
Showing 8 of 10 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-4SFP10G-CU5MCISCOFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.
CAB-Q-S-5MARISTAFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.
JNP-QSFP-DACBO-5MAJUNIPERFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ active direct-attach copper breakout cable, 5 m.
740-044967JUNIPERFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ active direct-attach copper breakout cable, 5 m.
MC2609125-005NVIDIAFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.
02310MUMHUAWEIFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.
QSFP-40G-4SFP-10G-CAB-5M-ZH3CFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.
10322EXTREMEFLD-QSFP+DAC-BO5M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why does the link work at one end but show an error at the other end?

Each transceiver must be compatible with its own host device. In a mixed-vendor link, one end may be correctly coded while the transceiver at the opposite end is not fully compatible with its switch or router.

How can I verify compatibility before ordering?

Check the network-device manufacturer and model, port type, required data rate, OEM transceiver reference if available, wavelength, reach, connector, fiber type, and software or firmware version when relevant.

Will compatible transceivers work after a switch firmware upgrade?

They often do, but firmware changes can modify transceiver validation behavior. Compatibility should therefore be verified when deploying modules on newly updated network operating systems.

Can I use two differently branded compatible transceivers at opposite ends of the link?

Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.

What switch information should I provide when requesting a compatible transceiver?

Providing the switch or router brand, exact model, port speed, operating-system version, and required OEM transceiver part number helps identify the correct compatibility profile.
