40G QSFP+ BREAKOUT DAC

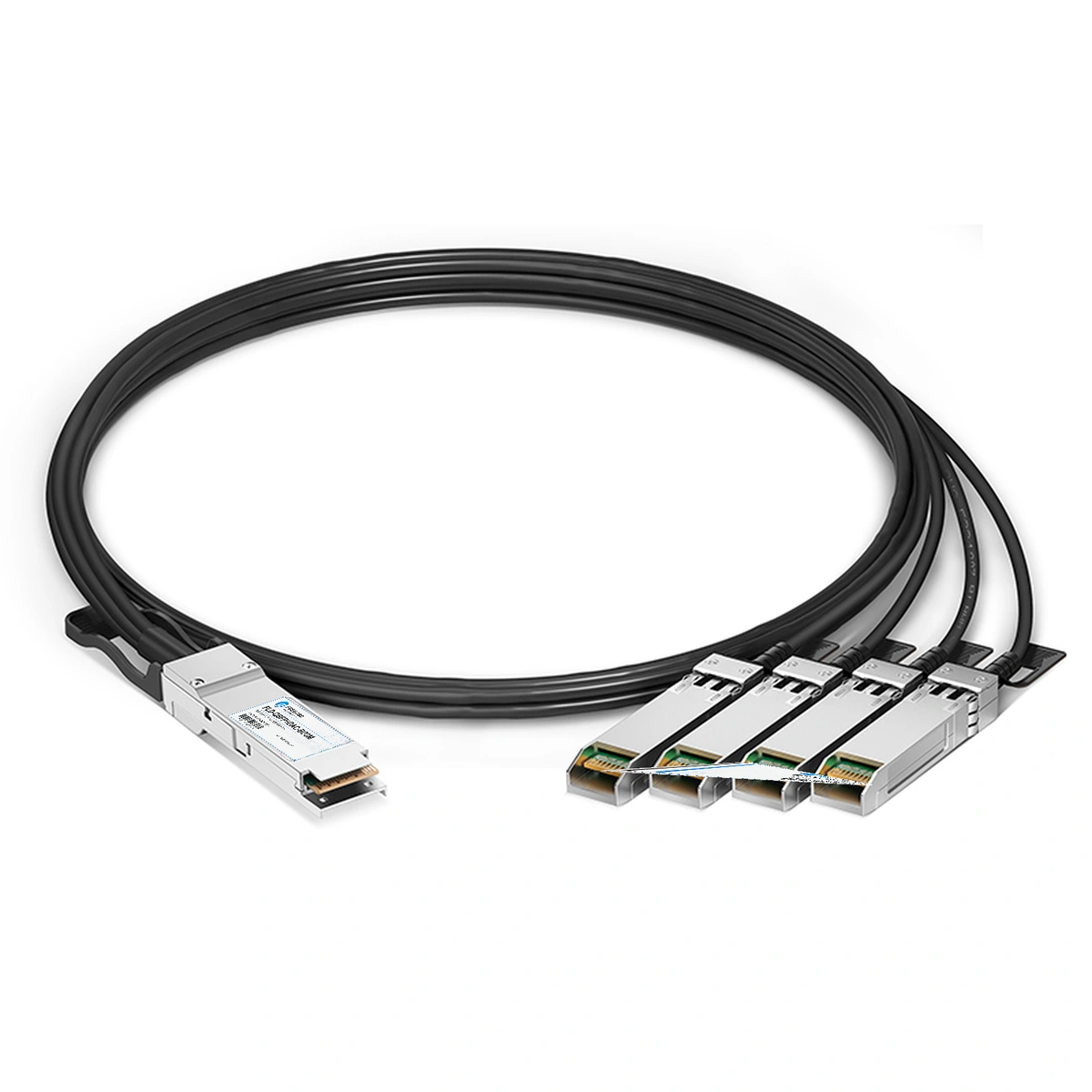

40G to 10G QSFP+ to SFP+ Breakout Direct Attach Copper Cable 3m | FLD-QSFP+DAC-BO3M | Fiberland

40G QSFP+ TO 4X10G SFP+ 3m

Rate40G ~10GReach3mWavelength-Interface-
Fiberland part number
FLD-QSFP+DAC-BO3M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP+ - SFP+

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP+DAC-BO3MVendor NameFIBERLAND
Data Rate40G ~10GWavelength-
Reach3mForm TypeQSFP+ - SFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references14 manufacturer part numbersAcross 8 brands
Showing 8 of 14 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-4SFP10G-CU3MCISCOFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
CAB-Q-S-3MARISTAFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
QFX-QSFP-DACBO-3MJUNIPERFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
740-038153JUNIPERFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
MC2609130-003NVIDIAFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
MCP7904-X003ANVIDIAFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
721064-B21HPEFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.
02310MULHUAWEIFLD-QSFP+DAC-BO3M40G QSFP+ to 4 x 10G SFP+ passive direct-attach copper breakout cable, 3 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Do both ends of an optical link need the same OEM compatibility?

No. Each transceiver generally needs to be compatible with the equipment in which it is installed. For example, one end may be coded for one switch brand and the other end for another.

Why does my switch detect the transceiver but not establish a link?

Possible causes include incorrect fiber type, wavelength mismatch, polarity, dirty connectors, excessive optical loss, incompatible link partners, FEC settings, port configuration, or compatibility issues.

Why is there no TX optical power from the compatible transceiver?

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.

Why is the transceiver recognized but DDM/DOM information is missing?

The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.

What switch information should I provide when requesting a compatible transceiver?

Providing the switch or router brand, exact model, port speed, operating-system version, and required OEM transceiver part number helps identify the correct compatibility profile.
