40G QSFP+ DAC

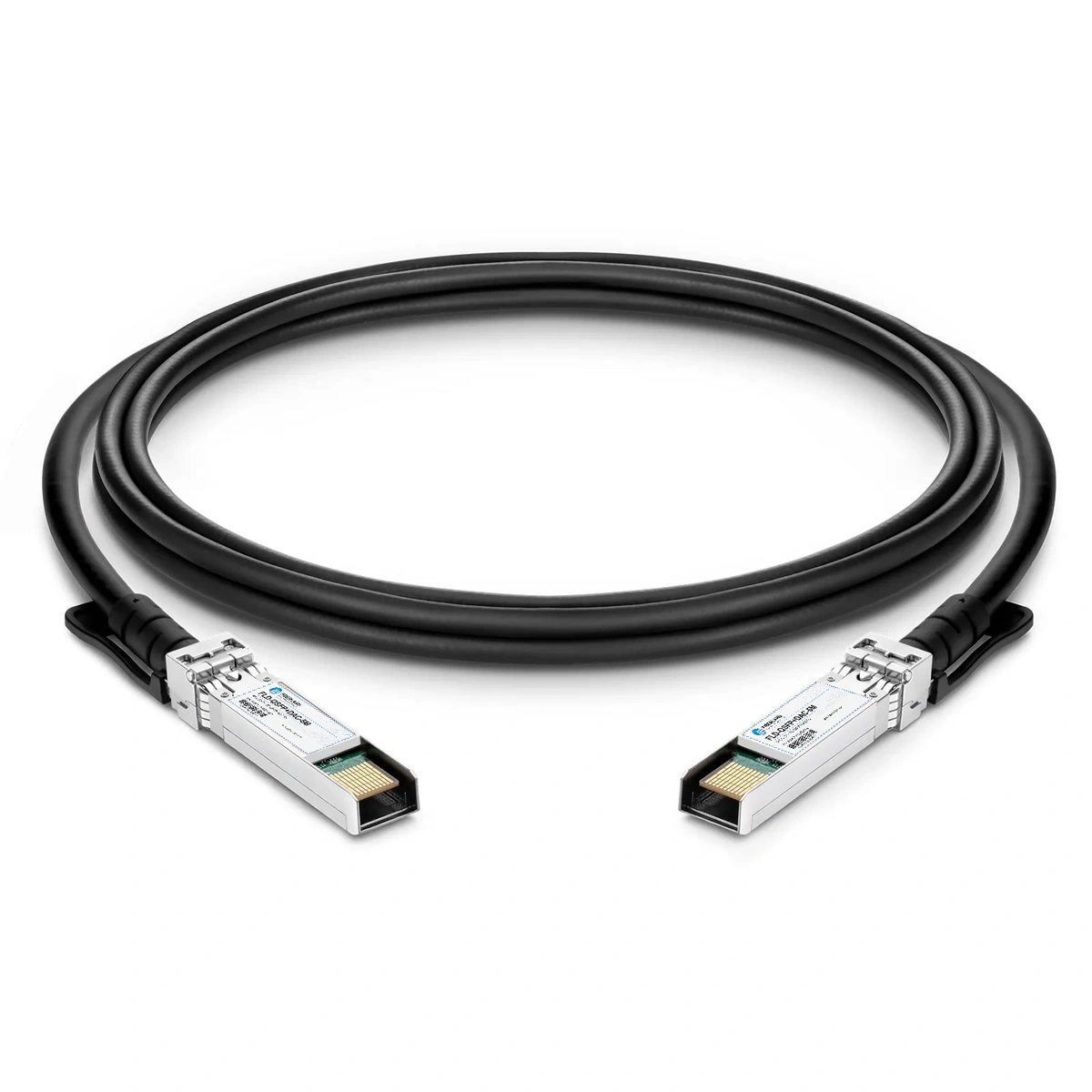

40G QSFP+ Direct Attach Copper Cable 5m | FLD-QSFP+DAC-5M | Fiberland

40G QSFP+ TO QSFP+ DAC 5m

Rate40GReach5mWavelength-Interface-
Fiberland part number
FLD-QSFP+DAC-5M
Unit priceAsk Our Manager

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP+

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-QSFP+DAC-5MVendor NameFIBERLAND
Data Rate40GWavelength-
Reach5mForm TypeQSFP+
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references18 manufacturer part numbersAcross 9 brands
Showing 8 of 18 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-H40G-CU5MCISCOFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.
CAB-Q-Q-5MARISTAFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.
QFX-QSFP-DAC-5MJUNIPERFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.
740-038625JUNIPERFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.
JNP-QSFP-DAC-5MJUNIPERFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.
JNP-QSFP-DAC-5MAJUNIPERFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ active direct-attach copper cable, 5 m.
740-052306JUNIPERFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ active direct-attach copper cable, 5 m.
MC2206128-005NVIDIAFLD-QSFP+DAC-5M40G QSFP+ to QSFP+ passive direct-attach copper cable, 5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

How should I troubleshoot a compatible transceiver that is not recognized?

Confirm the module part number and compatibility profile, reseat the module, inspect the port status, check device logs, verify the operating-system version, and compare the module information reported by the host.

Why is the transceiver recognized but DDM/DOM information is missing?

The module may be recognized while diagnostic monitoring is not fully supported by the host platform or compatibility profile. Check whether both the transceiver and network device support DDM/DOM for that interface.

Why does replacing an OEM transceiver with a compatible transceiver result in no link?

First verify that the compatible replacement matches the OEM module's form factor, data rate, wavelength, reach, fiber type, connector, and interface standard. Then confirm that it has the correct compatibility coding for the host platform.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

What does an “unsupported transceiver” message mean?

It usually means the host device does not recognize or approve the identification information stored in the module. It does not necessarily indicate an optical failure.
