100G QSFP28 BREAKOUT DAC

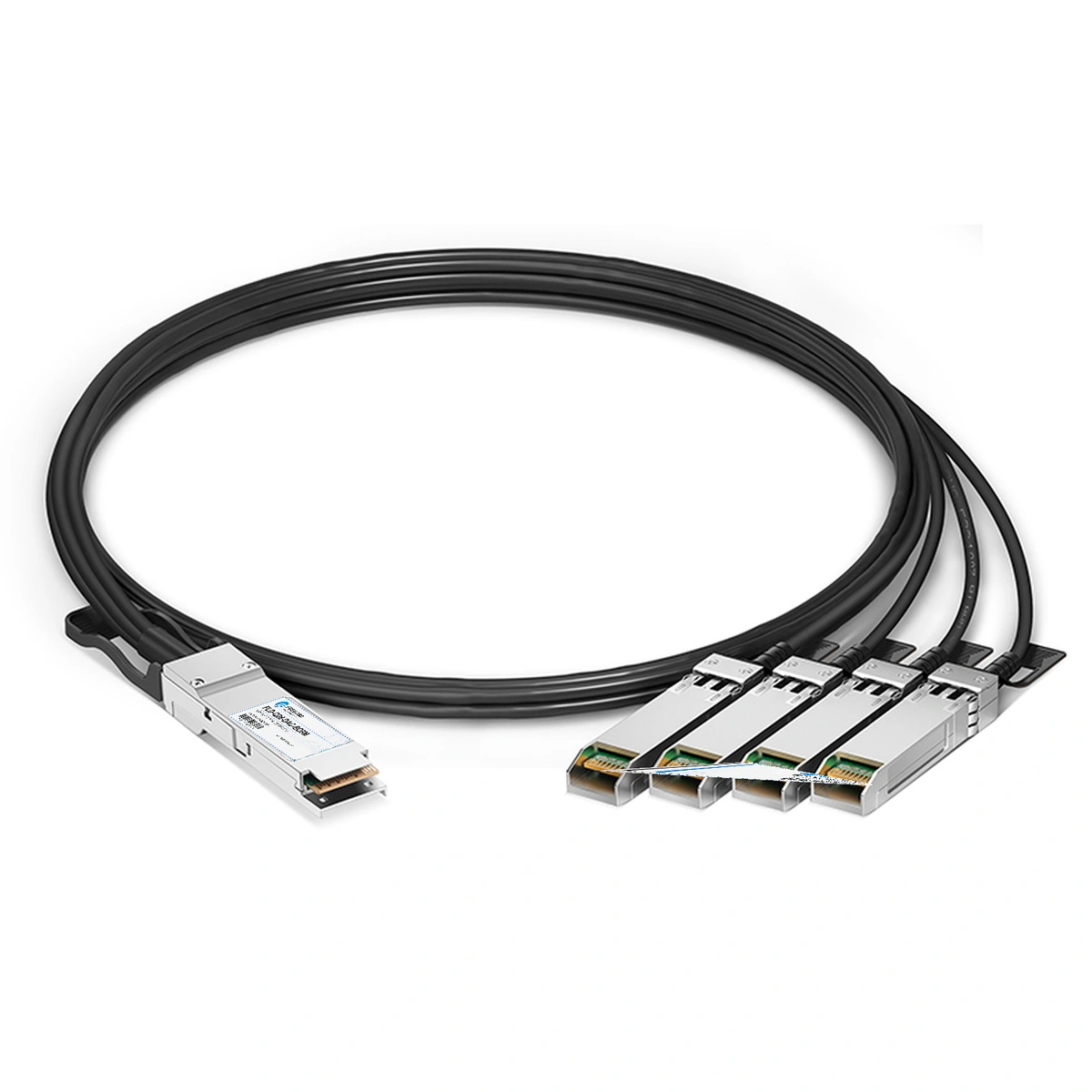

100G to 25G QSFP28 to SFP28 Breakout Direct Attach Copper Cable 5m | FLD-Q28-DAC-BO5M | Fiberland

100G QSFP28 TO 4X25G SFP28 5m

Rate100G ~25GReach5mWavelength-Interface-
Fiberland part number
FLD-Q28-DAC-BO5M
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeQSFP28 - SFP28

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-Q28-DAC-BO5MVendor NameFIBERLAND
Data Rate100G ~25GWavelength-
Reach5mForm TypeQSFP28 - SFP28
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references9 manufacturer part numbersAcross 7 brands
Showing 8 of 9 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
QSFP-4SFP25G-CU5MCISCOFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
CAB-Q-4S-100G-5MARISTAFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
JNP-100G-4X25G-5MJUNIPERFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
720-071265JUNIPERFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
MCP7F00-A005R26LNVIDIAFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
02311MPBHUAWEIFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
QSFP-100G-4SFP-25G-CAB-5MH3CFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.
QSFP-100G-4SFP-25G-CAB-5M-ZH3CFLD-Q28-DAC-BO5M100G QSFP28 to 4 x 25G SFP28 passive direct-attach copper breakout cable, 5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why does my switch show an “unsupported transceiver” warning?

Some network devices validate vendor information stored in the transceiver EEPROM. If the module's coding is not recognized by the host platform, the switch may display an unsupported or non-certified transceiver warning.

Can one optical transceiver be compatible with multiple brands?

Yes. The same optical hardware may support multiple equipment brands when it is programmed with the appropriate compatibility profile. Multi-vendor coding options may also be available for certain applications.

How can I verify compatibility before ordering?

Check the network-device manufacturer and model, port type, required data rate, OEM transceiver reference if available, wavelength, reach, connector, fiber type, and software or firmware version when relevant.

Why does a high-speed compatible transceiver show FEC errors?

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.

Can third-party transceivers damage a switch?

A properly designed transceiver that meets the required electrical, mechanical, thermal, and interface specifications should operate within the host platform's intended transceiver interface requirements.
