800G QSFP-DD , OSFP DAC

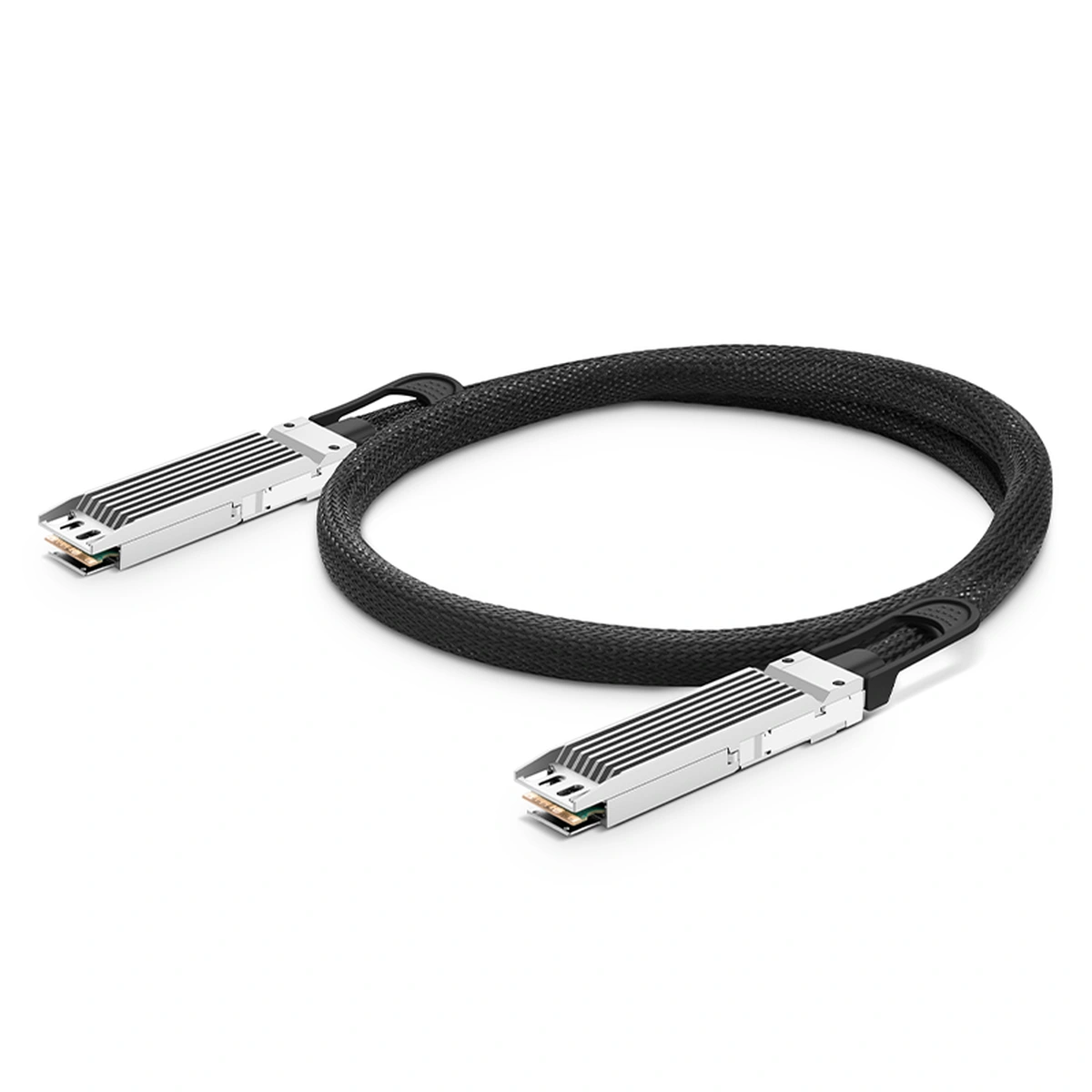

800G OSFP TO OSFP DAC 1.5m

Rate800GReach1.5mWavelength-Interface-
Fiberland part number
FLD-OSFP-DAC-1.5
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeOSFP ~ OSFP

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-OSFP-DAC-1.5Vendor NameFIBERLAND
Data Rate800GWavelength-
Reach1.5mForm TypeOSFP ~ OSFP
Optical Interface-DDM Support-
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsMode-
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references3 manufacturer part numbersAcross 2 brands
Showing 3 of 3 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
MCP4Y10-N01ANVIDIAFLD-OSFP-DAC-1.5800G OSFP800 to OSFP800 passive direct-attach copper cable, 1.5 m.
MCP4Y10-N01A-FLTNVIDIAFLD-OSFP-DAC-1.5800G OSFP800 to OSFP800 passive direct-attach copper cable, 1.5 m.
4X97A84582LENOVOFLD-OSFP-DAC-1.5800G OSFP800 finned to OSFP800 flat-top passive direct-attach copper cable, 1.5 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why does a high-speed compatible transceiver show FEC errors?

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.

What happens if a transceiver has the wrong compatibility coding?

The device may reject the module, display an unsupported-transceiver warning, fail to establish a link, or provide incomplete monitoring information.

Can OEM and compatible transceivers be used in the same switch?

In many networks, OEM and compatible transceivers are deployed in different ports of the same device. Each module should meet the requirements of its individual interface.

Are compatible transceivers suitable for enterprise networks?

Yes. They can be used in enterprise switching, routing, storage, campus networks, and other applications when properly matched to the network equipment and link requirements.

Why are the DDM/DOM readings incorrect or abnormal?
