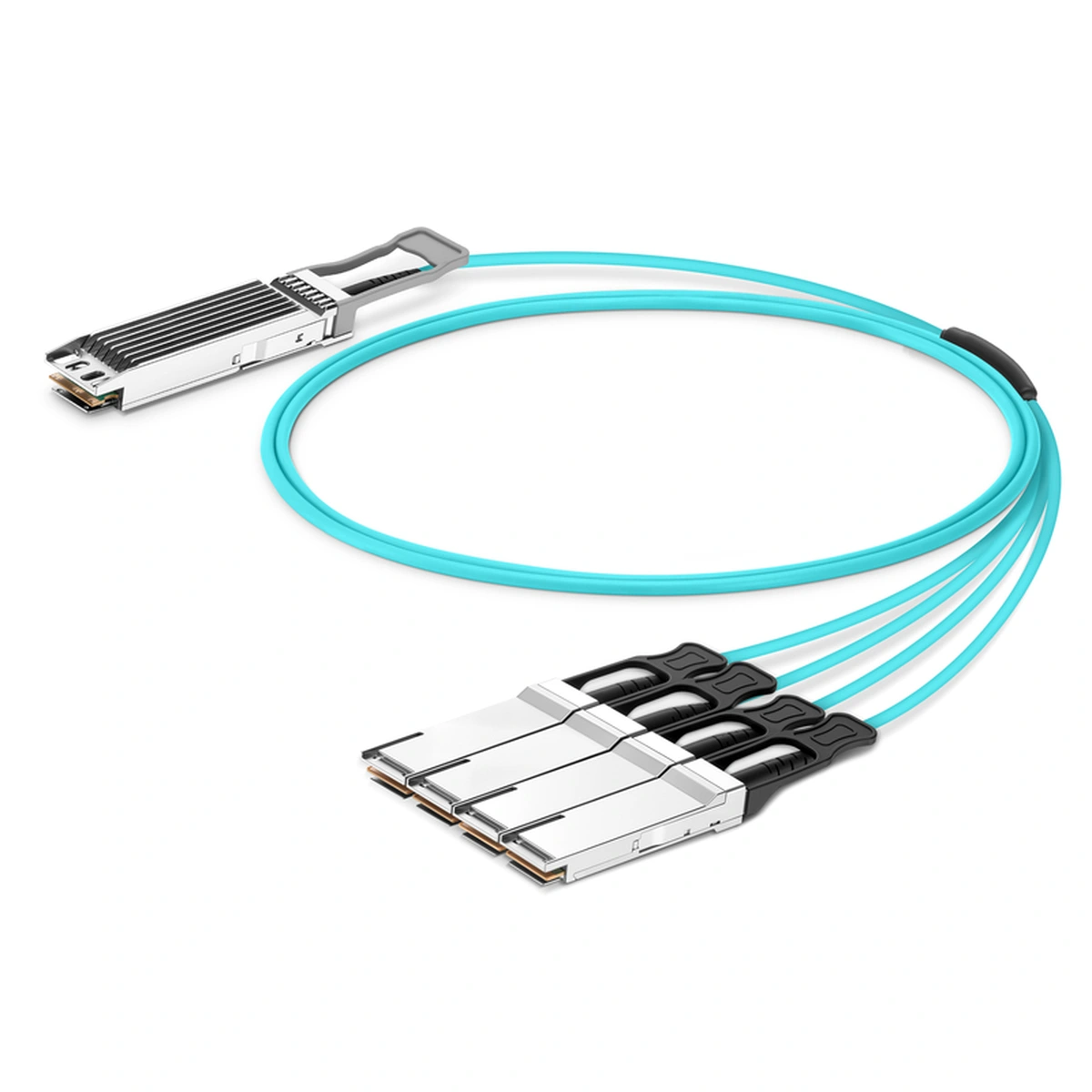

800G OSFP TO 4X200G OSFP AOC
Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.
| Fiberland Part Number | FLD-OSFP-AOC-BO-X | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 800G ~200G | Wavelength | 850NM |
| Common selectable lengths | 1m / 1.5m / 2m / 3m / 5m / 7m / 10m / 15m / 20m / 30m / 50m / 70m / 100m | Form Type | OSFP ~ 4XOSFP |
| Optical Interface | - | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | - |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | MM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Absolutely! All of our transceivers can be easily reprogrammed using our standalone offline coding kit. To get started, please share the part number, description, and serial number of your current transceivers, as well as the brands you need them to work with. Our team will generate the corresponding .bin file and send it over with clear instructions so you can update your transceivers immediately.
This can occur when the EEPROM compatibility profile does not match the intended interface or when the host interprets the programmed identification differently. Verify the module coding and corresponding OEM reference.
Compatibility coding itself does not determine transmission distance. Reach is primarily determined by the optical specification, fiber type, wavelength, link loss, connector quality, and network design.
Check whether the host correctly identifies the transceiver first. If the module is rejected, incorrectly identified, or generates vendor-related warnings, investigate compatibility. If it is correctly recognized but the link remains down, investigate fiber, optical power, wavelength, FEC, polarity, and the remote endpoint.
Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.
