Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

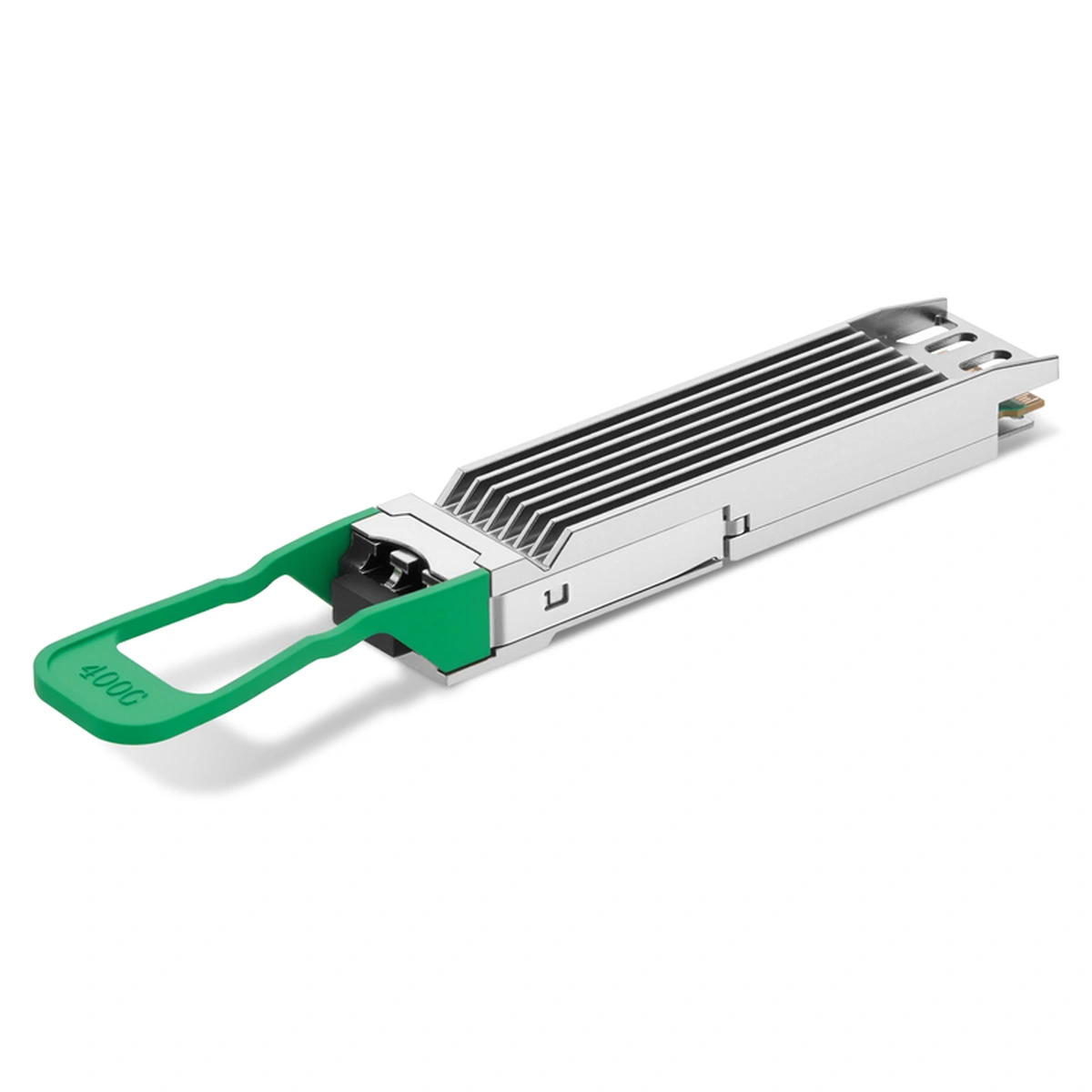

| Fiberland Part Number | FLD-OSFP-400G-FR4 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 400G | Wavelength | 1310 |
| Reach | 2km | Form Type | OSFP |
| Optical Interface | LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | - |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Swipe horizontally to view every field.
| Original part number | Brand | Fiberland part number | Product description |
|---|---|---|---|
| OSFP-400G-FR4 | ARISTA | FLD-OSFP-400G-FR4 | 400GBASE-FR4 OSFP transceiver, duplex LC, up to 2 km over duplex single-mode fiber. |
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Equipment compatibility determines whether the host device recognizes and operates with the module. Optical compatibility determines whether the two ends of the fiber link can communicate correctly. A successful deployment requires both.
DDM/DOM can provide real-time information such as module temperature, supply voltage, transmit optical power, receive optical power, and laser bias current.
Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
Yes. Compatible modules are available across many high-speed interfaces, although compatibility requirements become increasingly platform-specific at higher data rates.
A correctly coded compatible transceiver should be recognized by the supported switch or router platform. Compatibility can depend on the device model, operating system, firmware version, and port configuration.
