10/100/1000M MEDIA CONVERTER

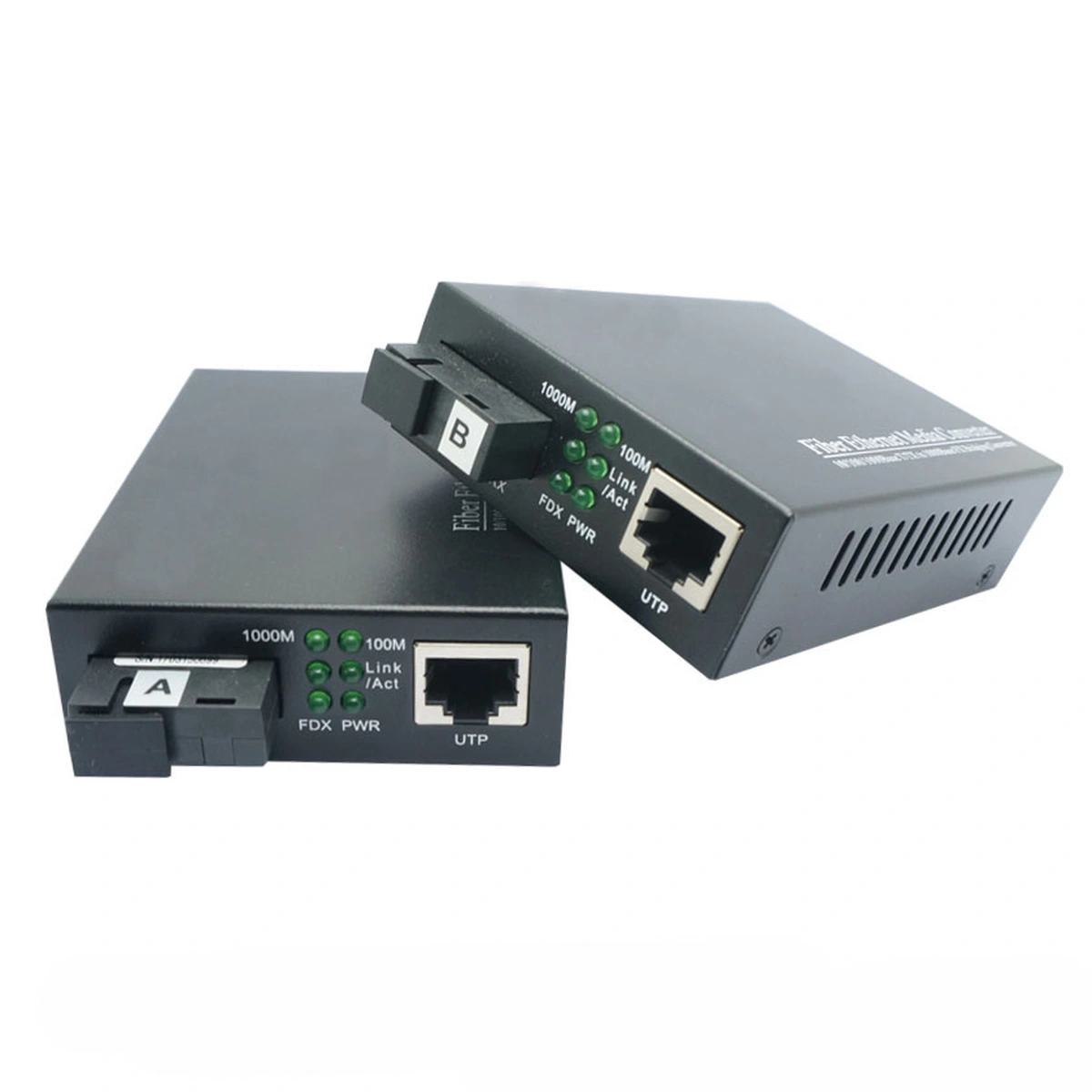

10/100/1000M BiDi Fiber Media Converter 1310/1550nm 40km SC/ST/FC SMF | FLD-MC-ASGE-WDM-SM-40A/B | Fiberland

Rate10/100/1000MReach40kmWavelength1310/1550InterfaceSC/ST/FC
Fiberland part number
FLD-MC-ASGE-WDM-SM-40A/B
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-MC-ASGE-WDM-SM-40A/BVendor NameFIBERLAND
Data Rate10/100/1000MWavelength1310/1550
Reach40kmForm TypeBIDI
Optical InterfaceSC/ST/FCDDM SupportIron
Commercial Temp.0~70℃Industrial Temp.N/A
Compatible BrandsEURO/UK/US/AUSComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references6 manufacturer part numbersAcross 2 brands
Showing 6 of 6 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
GT-806A40PLANETFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
GT-806B40PLANETFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.
SGFEB1029-122LANTRONIXFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
SGFEB1029-123LANTRONIXFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.
CGFEB1029-122LANTRONIXFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 40 km.
CGFEB1029-123LANTRONIXFLD-MC-ASGE-WDM-SM-40A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 40 km.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Why does the transceiver work after reinserting it?

Reinserting a module forces the host to redetect and reinitialize the transceiver. If this repeatedly resolves the issue, inspect the port, module contacts, firmware behavior, and compatibility profile rather than assuming the optical link itself is faulty.

Why is there no TX optical power from the compatible transceiver?

Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.

Why does my compatible transceiver show low RX optical power?

Low receive power can result from excessive fiber loss, dirty connectors, damaged fiber, excessive link distance, incorrect wavelength pairing, or insufficient transmit power from the remote transceiver. Compare the measured RX power with the module's specified receiver range.

Why does a high-speed compatible transceiver show FEC errors?

FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.

Why does the compatible transceiver work in some ports but not others on the same switch?

Ports on the same device may support different speeds, breakout modes, interface types, or configuration settings. Check the affected port's supported transceiver types, configured speed, lane mode, and other platform-specific requirements.
