10/100/1000M MEDIA CONVERTER

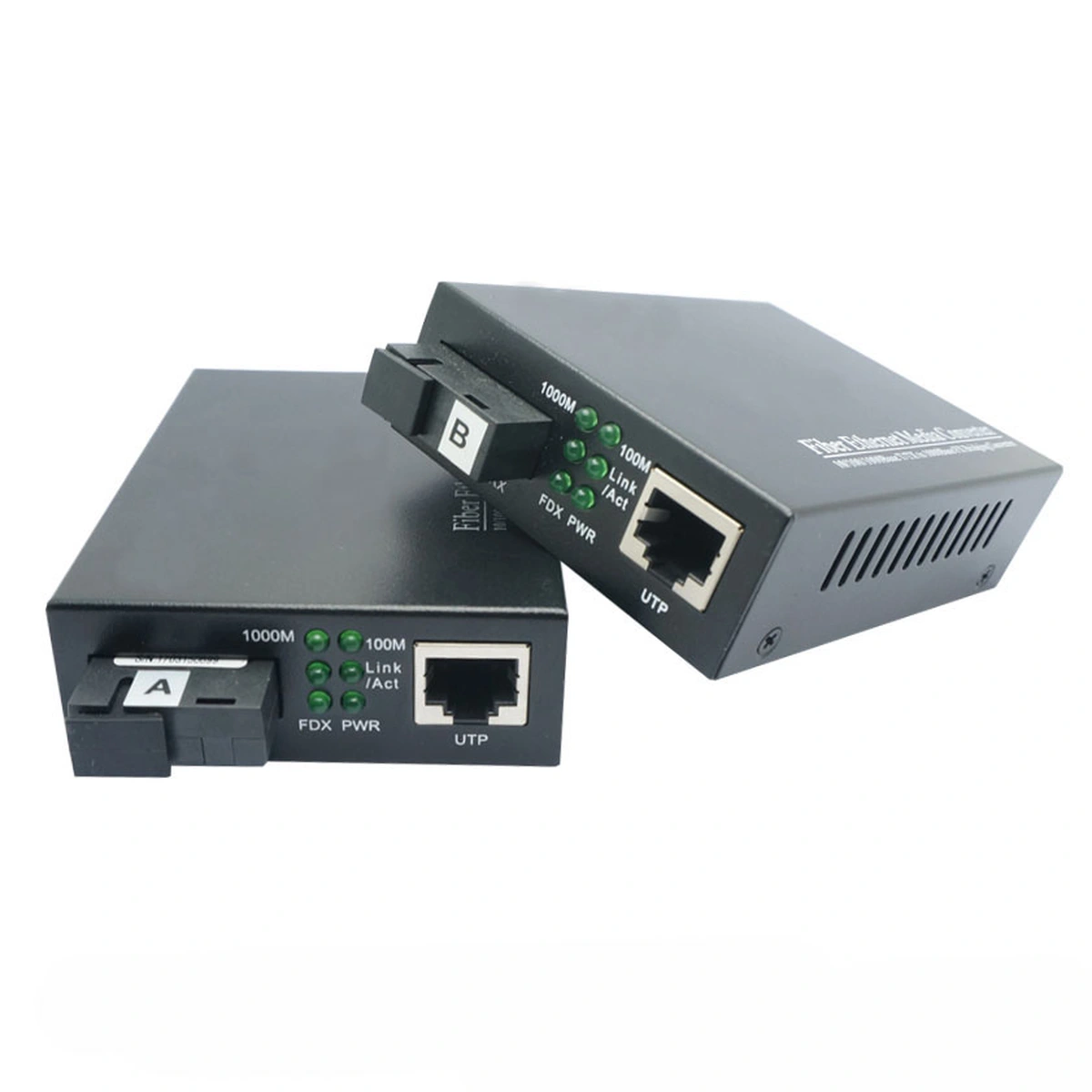

10/100/1000M BiDi Fiber Media Converter 1310/1550nm 20km SC/ST/FC SMF | FLD-MC-ASGE-WDM-SM-20A/B | Fiberland

Rate10/100/1000MReach20kmWavelength1310/1550InterfaceSC/ST/FC
Fiberland part number
FLD-MC-ASGE-WDM-SM-20A/B
Unit priceAsk Our Manager
Request a Quote Review Specifications
At a glance

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeBIDI

Check this recorded value against the target device and project requirements before quotation approval.

Model data

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-MC-ASGE-WDM-SM-20A/BVendor NameFIBERLAND
Data Rate10/100/1000MWavelength1310/1550
Reach20kmForm TypeBIDI
Optical InterfaceSC/ST/FCDDM SupportIron
Commercial Temp.0~70℃Industrial Temp.N/A
Compatible BrandsEURO/UK/US/AUSComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeSM
Compatible model reference

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references10 manufacturer part numbersAcross 3 brands
Showing 8 of 10 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
FC311A-20TP-LINKFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 20 km.
FC311B-20TP-LINKFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 20 km.
GT-806A15PLANETFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 20 km.
GT-806B15PLANETFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 20 km.
GST-806A15PLANETFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 20 km.
GST-806B15PLANETFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 20 km.
SGFEB1029-130LANTRONIXFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1310 nm TX / 1550 nm RX, simplex SC SMF, 20 km.
SGFEB1029-131LANTRONIXFLD-MC-ASGE-WDM-SM-20A/B10/100/1000BASE-T to 1000BASE-BX single-fiber media converter, 1550 nm TX / 1310 nm RX, simplex SC SMF, 20 km.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.

Link and application reference

See Where This Product Fits in the Network

Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.

Application planning

Optical Transceiver Application and Link Map

Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.

View full application diagram
Optical transceiver application diagram covering data center, DCI, campus, server and metro networks
Testing and quality reference

Review the Quality-Control and Test Flow

Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.

Testing and quality

Quality Control and Test Flow

Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.

View full testing diagram
Quality control flow covering material, firmware, optical, temperature, compatibility and final QA checks
Product FAQ

Frequently Asked Questions

Answers to common compatibility, installation and troubleshooting questions.

Are compatible transceivers suitable for data centers?

Yes. Compatible optical modules are widely used for server, switch, storage, and data-center interconnect applications when the correct interface and compatibility requirements are met.

What is EEPROM coding in an optical transceiver?

EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.

What information should I provide when requesting technical support for a compatible transceiver?

Provide the transceiver part number, corresponding OEM part number, switch or router brand and exact model, operating system or firmware version, port number and speed, error messages, DDM/DOM readings, and information about the transceiver and equipment at the opposite end of the link.

Why does the switch detect the transceiver but report an incorrect module type?

This can occur when the EEPROM compatibility profile does not match the intended interface or when the host interprets the programmed identification differently. Verify the module coding and corresponding OEM reference.

Do compatible transceivers support hot swapping?

Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.
