Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

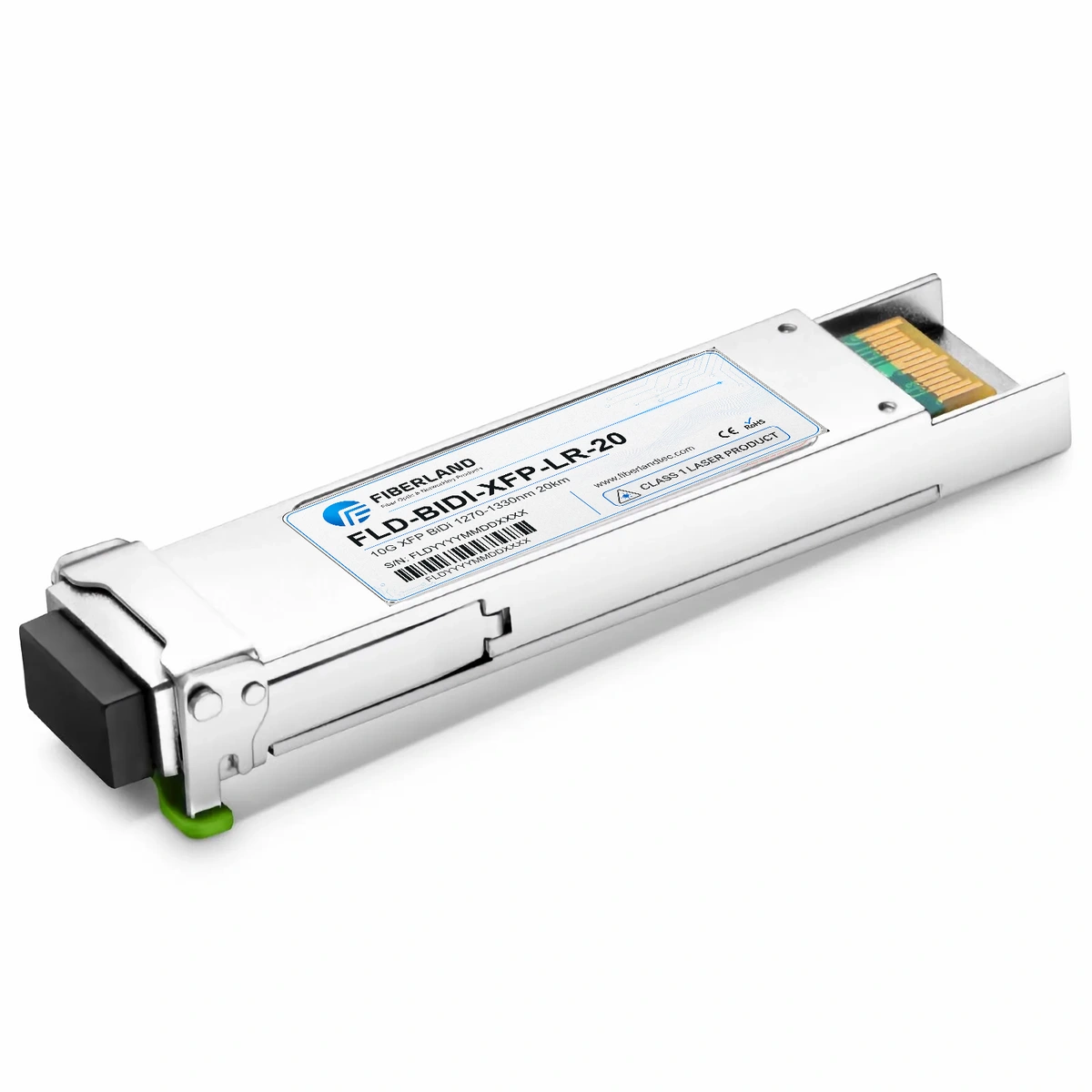

| Fiberland Part Number | FLD-BIDI-XFP-LR-20 | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 10G | Wavelength | 1270-1330 |
| Reach | 20km | Form Type | BIDI XFP |
| Optical Interface | BIDI LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Ports on the same device may support different speeds, breakout modes, interface types, or configuration settings. Check the affected port's supported transceiver types, configured speed, lane mode, and other platform-specific requirements.
Yes. Host compatibility and optical-link compatibility are separate issues. A module may be correctly recognized while the link fails because of fiber, wavelength, FEC, polarity, configuration, or link-budget problems.
The exact OEM reference is useful for identifying compatibility, but the optical specifications and host-platform requirements must also match the intended application.
Start with the host equipment and port requirements, then match the data rate, form factor, wavelength, reach, connector, fiber type, optical standard, and OEM compatibility. For high-speed interfaces, also verify FEC and other platform-specific requirements.
With a properly compatible module and supported host platform, DOM/DDM values should normally be accessible through the network equipment's management interface.
