Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

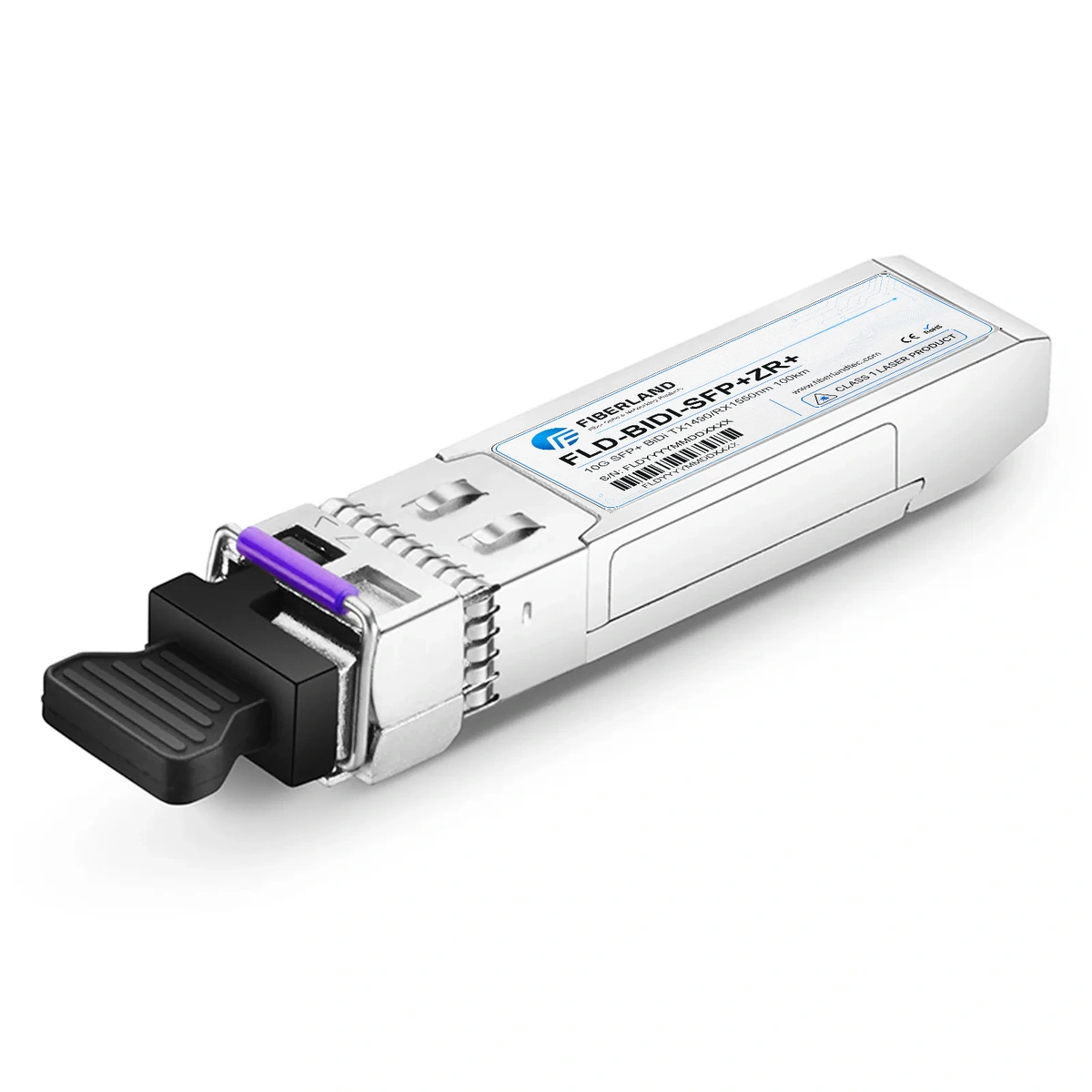

| Fiberland Part Number | FLD-BIDI-SFP+ZR+ | Vendor Name | FIBERLAND |
|---|---|---|---|
| Data Rate | 10G | Wavelength | 1490/1550 |
| Reach | 100km | Form Type | BIDI SFP+ |
| Optical Interface | BIDI LC | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,Huawei,Nvidia...200+ brands | Compliance | CE,FCC,ROHS,REACH |
| Warranty | 3 Years | Mode | SM |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Start with the host equipment and port requirements, then match the data rate, form factor, wavelength, reach, connector, fiber type, optical standard, and OEM compatibility. For high-speed interfaces, also verify FEC and other platform-specific requirements.
A properly designed transceiver that meets the required electrical, mechanical, thermal, and interface specifications should operate within the host platform's intended transceiver interface requirements.
Check whether the port is administratively enabled and whether the host has disabled the transmitter because of an unsupported-module condition or configuration issue. If the module is correctly recognized and enabled, further hardware testing may be required.
Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.
EEPROM coding stores identification and operating information such as vendor data, part number, wavelength, interface characteristics, and other parameters read by the host equipment.
