Select a specification to see how it affects model selection.
Check this recorded value against the target device and project requirements before quotation approval.
Filter the product record by the information needed for engineering or purchasing review.

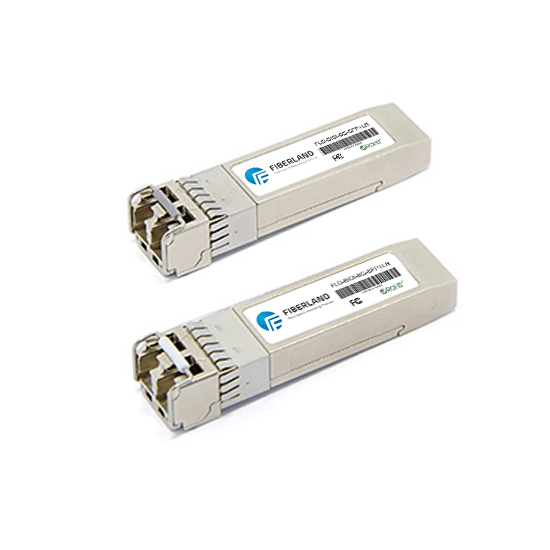

| Vendor Name | Fiberland | Form Type | BIDI SFP+ |
|---|---|---|---|
| Data Rate | 8Gbps | Wavelength | 1270/1330NM,1490/1550NM |
| Common selectable lengths | 10km / 20km / 25km / 30km / 40km / 50km / 60km / 70km / 80km | Optical Interface | LC |
| Media Type | SM | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,HP,Huawei,etc... | Certificates | CE,FCC,ROHS,REACH |
| HS Code | 8517706000 | Warranty | 3 Years |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Compatible transceivers may contain programmed identification information required by the host platform. The vendor or part number reported by the switch can therefore differ from the manufacturer's physical product label.
This can occur when the EEPROM compatibility profile does not match the intended interface or when the host interprets the programmed identification differently. Verify the module coding and corresponding OEM reference.
Intermittent links can be caused by marginal optical power, dirty connectors, unstable fiber connections, FEC mismatches, port configuration, temperature, or compatibility issues. Check both the optical link and host-side configuration.
Each transceiver must be compatible with its own host device. In a mixed-vendor link, one end may be correctly coded while the transceiver at the opposite end is not fully compatible with its switch or router.
Yes, provided each transceiver is compatible with its local host and both modules use matching optical standards, wavelengths, data rates, fiber types, and other required link parameters.
