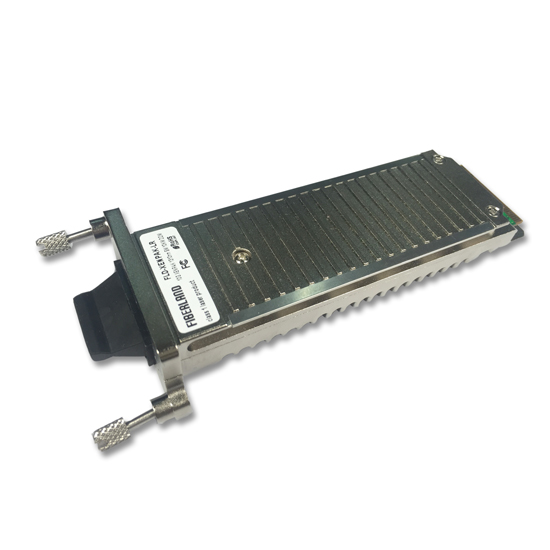

| Vendor Name | Fiberland | Form Type | CWDM XENPAK |
|---|---|---|---|
| Data Rate | 10Gbps | Wavelength | 1270~1610NM |
| Common selectable lengths | 40km / 50km / 60km / 70km / 80km | Optical Interface | Duplex SC |
| Media Type | SM | DDM Support | YES |
| Commercial Temp. | 0~70℃ | Industrial Temp. | -40~85℃ |
| Compatible Brands | Cisco,HP,Huawei,etc... | Certificates | CE,FCC,ROHS,REACH |
| HS Code | 8517706000 | Warranty | 3 Years |
Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.
Send the target device brand, model, firmware or OS and port details for an exact compatibility review.
A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
Review common data-center, DCI, campus, server and metro-network connections before confirming speed, reach, fiber type and connector.
Compare representative network topologies and link paths to identify the appropriate product family for the intended deployment.
Follow the checkpoints used to verify materials, firmware, optical performance, temperature stability, compatibility and final inspection.
Review the sequence from material verification and firmware programming through optical, temperature, compatibility and final QA inspection.
Answers to common compatibility, installation and troubleshooting questions.
Compatible modules can be used in telecom and service-provider environments when they meet the required optical specifications, environmental requirements, protocols, and host compatibility.
Network equipment may inspect the module's EEPROM information before allowing normal operation. Correct programming helps the host identify and manage the transceiver properly.
FEC errors may result from incompatible FEC settings, excessive optical loss, signal-quality problems, incorrect fiber infrastructure, or incompatible link parameters. Verify that both ends use the required FEC mode for the interface.
Most SFP-family, QSFP-family, and similar pluggable transceivers are designed for hot-pluggable operation according to the applicable interface specification. Host-equipment procedures should still be followed.
DDM/DOM can provide real-time information such as module temperature, supply voltage, transmit optical power, receive optical power, and laser bias current.
